Remanufactured GE-Emerson IC695CHS007 PACSystems Rx3i Universal Backplane

Product Description  of   IC695CHS007

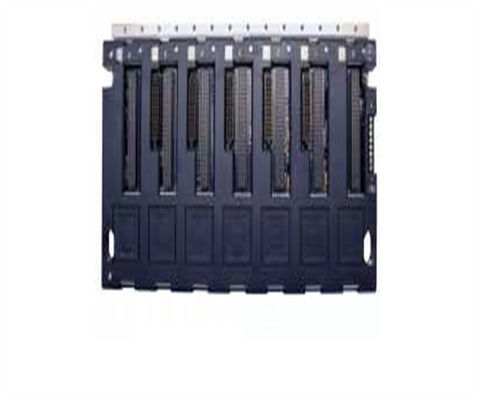

The IC695CHS007 is a universal backplane from the PACSystem RX3i Programmable Automation Controller (PAC) series. This backplane is a Seven (7) slot backplane, reserved for Power supply and I/O modules. It natively supports any IO and option module of the PACsystem RX3i series as well as series 90-30 I/O and option modules.

The IC695CHS007 slot 0 is reserved for installation of an IC695 power supply. Slot 1-5 are dual connector slots that support Peripheral Component Interconnect (PCI) type connectors utilized by PACSystem components such as IC695 modules and Serial connectors used by Series 90-30 modules particularly IC693 and IC694 modules. Slot 6 which is the rightmost and last slot, only supports PCI, compatible only with RX3i modules.

The IC695CHS007 is ideally used for application with limited mounting space or for implementation of remote I/O architecture. This module is provided with a 24 VDC terminal strip located on the left end of the rack. A backplane grounding point and an integral grounding bar for connection of shield and grounding connections of the hosted module of the rack. Slot numbers are also printed clearly to this rack to mount the modules accordingly.

The IC695CHS007 is available in Two (2) releases particularly, IC695CHS007-AA which is the initial release and the IC695CHS007-BA later release which includes mechanical enhancements especially with the backplane PCI connector of the chassis.

The IC695CHS007 is designed for horizontal minting only. Other mounting orientations may affect airflow and ultimately affect system performance. This rack directly mounts to the enclosure subpanel via the provided mounting hole available to the chassis.

The GE IC695CHS007 backplane is a universal backplane that is part of the RX3i PACSystems series that is designed and manufactured by GE Fanuc and it is a replacement for the Series 90-30 system. The IC695CHS007 backplane has an input voltage of +24 Volts. The users should note that the suggested mounting method should include horizontal orientation and installation in a protective enclosure with a minimum protection rating of IP 20 (NEMA Type 1). The IC695CHS007 universal backplane has a grounding point along with terminal strip located on the left end. Also, the backplane includes an integrated grounding bar and visible slot numbers for configuration and it provides support for systems and option modules from other manufacturers.

The IC695CHS007 backplane has an internal current of 240 milliamps at 5 Volts DC and a current of 600 milliamps at 3.3 Volts DC and it has 7 available slots for components. The supported components can include PCI I/O components like the IC693. The PCI components that are compatible start with the product code IC695. The GE backplanes like the IC695CHS007 backplane can be used in hazardous areas but they require an enclosure with higher degree of protection in these environments. The minimum protection rating for hazardous locations is IP 54. The IC695CHS007 backplane does not require much installation space but it needs a minimum of 4 inches of space on all sides in order to have proper cooling. The specified dimensions of the unit are 141.4 x 264.9 x 147.3 millimeters (5.5 x 10.4 x 5.8 inches).
