| Place of Origin: | Japan |
| Brand Name: | SCHNEIDER |
| Certification: | CE |
| Model Number: | 140DDI85300 |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiation |
| Packaging Details: | New Original Box |
| Delivery Time: | 3-5 working day |
| Payment Terms: | T/T |
| Supply Ability: | 100 |
| Country Of Origin: | Japan | Type: | ANALOG INPUT MODULE |
|---|---|---|---|
| Model: | 140DDI85300 | Brand: | SCHNEIDER |
| Shipping Term: | DHL / FEDEX /UPS/TNT | Warranty: | 1 Year |
| Power Supply: | 24 VDC | Payment Term: | T/T, Western Union,paypal |
| More Information: | 4-20 MA CURRENT | Price: | Please Contact Me |
| Highlight: | 32 I Picture Discrete Input Module,140DDI85300 Picture Discrete Input Module |
||

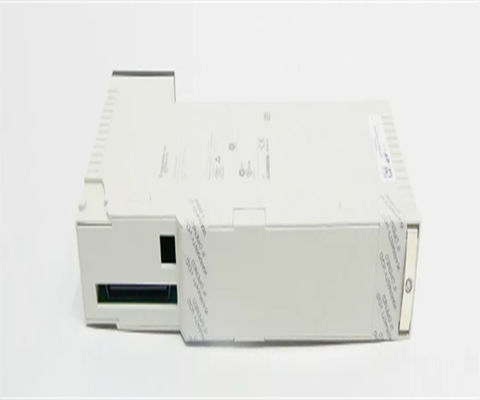

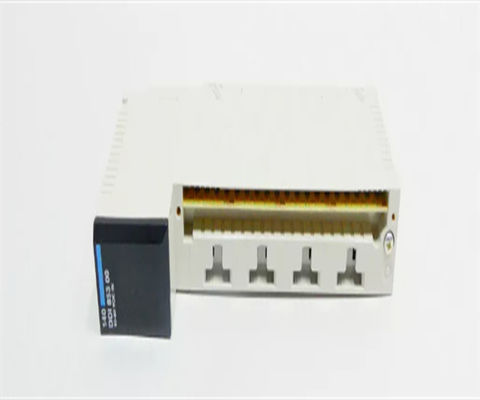

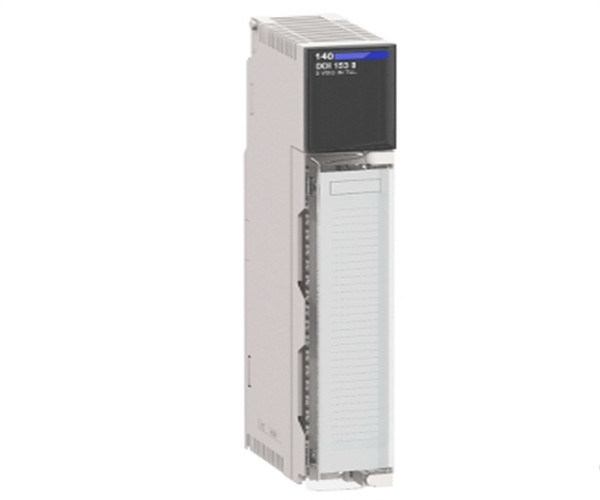

Schneider Electric 140DDI85300 Picture Discrete Input Module Modicon Quantum - 32 I - 10..60 V DC
Manufacturer : Schneider Electric
Product No. : 140DDI85300
Product Type : Discrete Input Module
Discrete input number : 32
Group of channels : 4
Logic input : Positive (sink)
Input voltage limits : 10...60 V
Absolute maximum voltage : 75 V
Addressing requirement : 1 input word
Switching frequency : <= 100 Hz
Power dissipation : 1 W + (0.62 x number of points on)
Bus current requirement : 300 mA
Module format: Standard
Weight : 0.3 Kg
Shipping Weight : 2 Kg
| GROUP OF CHANNELS |
4
|
|
|---|---|---|
| LOGIC INPUT |
Positive (sink)
|
|
| INPUT VOLTAGE LIMITS |
10…60 V
|
|
| INPUT VOLTAGE |
12 V 5…10 mA DC
24 V 6…30 mA DC 48 V 2…15 mA DC 60 V 1…5 mA DC |
|
| VOLTAGE STATE 1 GUARANTEED |
11…24 V 24 V – 15…20 %
34…48 V 48 V – 15…20 % 45…60 V 60 V – 15…20 % 9…12 V 12 V +/- 5 % |
|
| VOLTAGE STATE 0 GUARANTEED |
0…10 V 48 V – 15…20 %
0…12.5 V 60 V – 15…20 % 0…5 V 24 V – 15…20 % 0…1.8 V 12 V +/- 5 % |
|
| ABSOLUTE MAXIMUM VOLTAGE |
75 V
|
|
| ADDRESSING REQUIREMENT |
2 input words
|
|
| RESPONSE TIME |
4 ms from state 0 to state 1
4 ms from state 1 to state 0 |
|
| SWITCHING FREQUENCY |
<= 100 Hz
|
|
| ISOLATION BETWEEN GROUP AND BUS |
2500 Vrms DC for 1 minute
|
|
| ISOLATION BETWEEN GROUP |
700 Vrms DC for 1 minute
|
|
| POWER DISSIPATION |
1 W + (0.25 x number of points on)
|
|
| MARKING |
CE
|
|
| LOCAL SIGNALLING |
1 LED green bus communication is present (Active)
32 LEDs green input status |
|
| BUS CURRENT REQUIREMENT |
300 mA
|
|
| MODULE FORMAT |
Standard
|
|
| PRODUCT WEIGHT |
0.65 lb(US) (0.295 kg)
|
| STANDARDS |
CSA C22.2 No 142
EN/IEC 61131-2 UL 508 |
|
|---|---|---|
| PRODUCT CERTIFICATIONS |
CE
CSA UL Hazardous location class 1, division 2 RCM Merchant Navy EAC |
|
| RESISTANCE TO ELECTROSTATIC DISCHARGE |
4 kV contact conforming to IEC 801-2
8 kV on air conforming to IEC 801-2 |
|
| RESISTANCE TO ELECTROMAGNETIC FIELDS |
9.14 V/yd (10 V/m) 80…2000 MHz conforming to IEC 801-3
|
|
| AMBIENT AIR TEMPERATURE FOR OPERATION |
32…140 °F (0…60 °C)
|
|
| AMBIENT AIR TEMPERATURE FOR STORAGE |
-40…185 °F (-40…85 °C)
|
|
| RELATIVE HUMIDITY |
95 % without condensation
|
|
| OPERATING ALTITUDE |
<= 16404.2 ft (5000 m)
|
