General Electric DS3800HRCA Auxiliary Interface Panel for Industrial

Product Description:DS3800HRCA

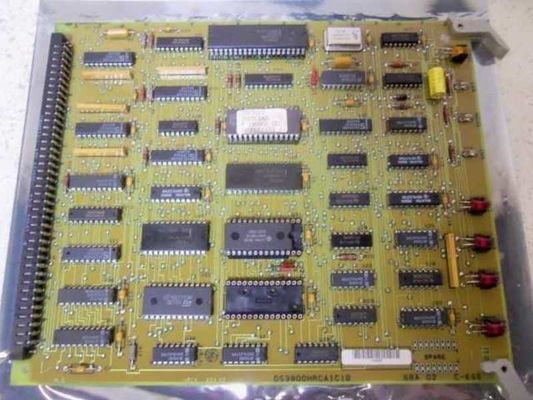

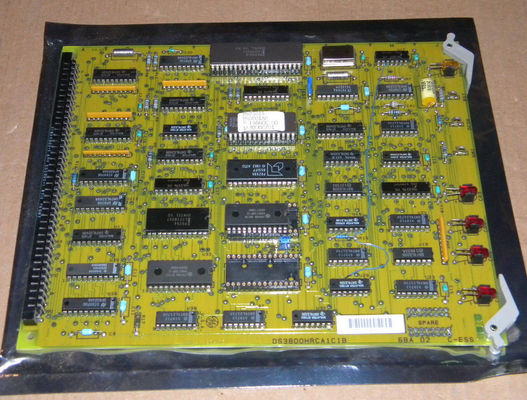

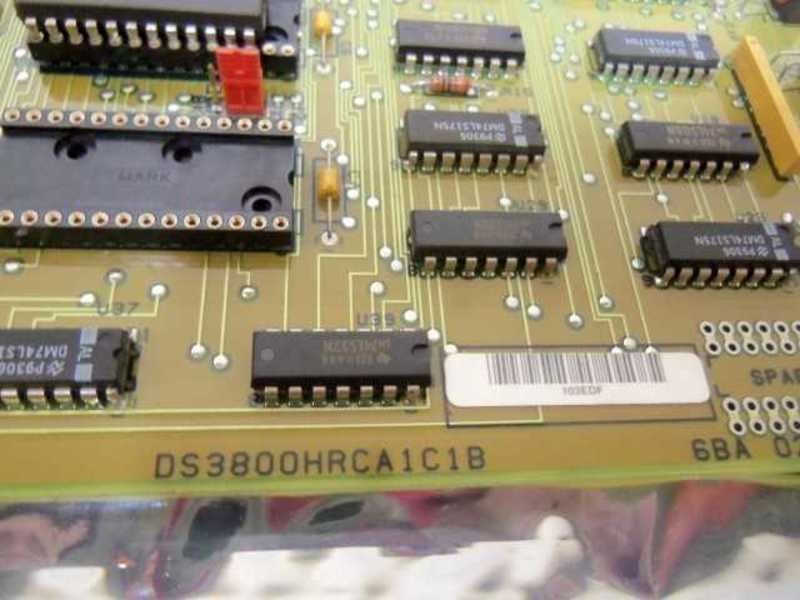

• Board Layout and Mounting: The DS3800HRCA is a printed circuit board with a carefully organized layout. It is designed to be integrated into the larger turbine control system infrastructure, often functioning as a sub-board. It can be easily connected to other components through specific connection mechanisms. For example, it has provisions for connecting to long mother power terminals, which facilitate the supply of electrical power to the board. There are also two clips and two small screws that play a role in securing it in place within the system enclosure or cabinet, ensuring its stability during operation and protecting it from mechanical vibrations or accidental dislodging.
• Indicator Lights: Positioned along one edge of the board, there are several indicator LEDs that provide visual cues about its operational status. There is one amber LED and four red LEDs, each held firmly in place by small black clips. These LEDs are strategically placed to be easily visible to technicians and operators. The amber LED might indicate certain normal operating conditions, such as power being supplied or a particular mode of operation being active. The red LEDs, on the other hand, typically signal various abnormal or warning conditions, like a fault in a specific circuit, an overvoltage or overcurrent situation, or a problem with the signal processing functions. Their presence allows for quick visual inspection to assess the health of the board at a glance.
• Jumper Pins: The board features five jumper pins that are covered by two lids. These jumper pins are an important aspect of its design as they allow operators to modify the electrical connections or the flow of energy within the board's circuitry. By changing the configuration of these jumpers, different operating modes or signal paths can be enabled or disabled, providing a level of flexibility in adapting the board's functionality to specific requirements of the turbine control system. For example, they might be used to select between different input or output ranges for certain signals, or to enable or bypass specific internal circuits for troubleshooting or customization purposes.
• Electronic Components: The DS3800HRCA is populated with a diverse array of electronic components. It contains multiple capacitors, including five yellow ones, which are used for various electrical functions such as filtering electrical noise, storing electrical energy to smooth out voltage fluctuations, and ensuring stable power supply to different parts of the circuit. There are also numerous diodes of different colors, like three blue diodes, two silver diodes, one black diode, and nineteen yellow diodes. Diodes play essential roles in rectifying current, protecting against reverse voltage, and controlling the direction of current flow within the electrical circuits. Additionally, there are sixteen ribbon resistors on the board, each clearly marked with its current capacity. These resistors are crucial for controlling the flow of current, setting appropriate voltage drops across different sections of the circuit, and ensuring that electrical signals are at the correct levels for proper processing and communication within the board and with other connected components.
• Memory Chips: The board incorporates a significant number of memory chips. There are 33 EPROM (Erasable Programmable Read-Only Memory) or storage chips that can be updated and reprogrammed. These are used to store firmware, control algorithms, configuration parameters, and other data that define how the board operates and processes signals. The ability to update and reprogram them allows for customization and adaptation of the board's behavior to different turbine applications and changing operational requirements. In addition, there are four EEPROM (Electrically Erasable Programmable Read-Only Memory) chips that are not updatable in the same way. These are likely used to store critical and permanent data that should not be easily modified, such as default settings or calibration values. Furthermore, there are two areas on the board where additional EPROM or EEPROM chips can be added. One is labeled "spare" and has silver attachment points, while the other is an empty black platform with connection ports, providing the potential for expanding the board's memory capacity or adding custom functionality in the future.

Functional Capabilities

• Signal Conditioning: The primary function of the DS3800HRCA is to condition and process various signals received from sensors and other components within the turbine control system. It can handle a wide variety of input signals, including those from temperature sensors (such as thermocouples or Resistance Temperature Detectors - RTDs), pressure sensors, vibration sensors, and other monitoring devices located throughout the turbine. For analog signals, it performs operations like amplification to boost weak sensor signals to a level that can be accurately detected and processed by the board's internal circuitry. It also applies filtering techniques to remove electrical noise and interference that might be present in the signals, ensuring that the processed signals are clean and reliable for further analysis and decision-making.
• Signal Processing and Conversion: The board is capable of converting different types of signals into formats that can be understood and utilized by the control system. For example, analog signals from sensors are converted into digital form through analog-to-digital conversion processes. This enables the digital processing of the signals using the onboard microprocessor and associated digital circuits. It can also handle digital signals from various sources, performing tasks such as decoding encoded digital information, buffering to strengthen the signals for reliable transmission within the board and to other components, and logic level shifting to ensure compatibility with the internal components' voltage requirements.
• Data Storage and Retrieval: With its multiple memory chips, the DS3800HRCA plays a crucial role in storing and retrieving data related to the turbine's operation and the board's configuration. As mentioned earlier, the EPROM and EEPROM chips store firmware that contains the control algorithms and operational logic. These algorithms are executed by the board to process signals and generate appropriate control signals for actuators within the turbine system. The memory also stores configuration parameters that define aspects like input/output mappings, signal ranges, and communication settings. This data is retrieved during operation to ensure that the board functions as configured and can adapt to different operating conditions and system requirements.
• Control Signal Generation: Based on the processed input signals and the programmed control logic stored in its memory, the DS3800HRCA generates control signals to actuate various components in the turbine system. It can send commands to motors that drive pumps for fuel supply, cooling water circulation, or other auxiliary systems related to the turbine's operation. It also controls solenoid valves that regulate the flow of fuel, steam, or other fluids within the system, ensuring that the turbine operates under optimal conditions. For example, if the processed sensor signals indicate that the turbine temperature is rising above a safe limit, the board can send a control signal to open a cooling water valve wider to increase the cooling effect and maintain the temperature within the acceptable range. Similarly, during startup or shutdown procedures, it coordinates the sequence of actions by sending appropriate signals to different actuators to ensure a smooth and safe transition of the turbine's operating state.
• Communication and System Integration: The DS3800HRCA is designed to communicate with other components within the GE Speedtronic Mark IV turbine control system and potentially with external systems as well. It supports multiple communication interfaces and protocols, which enable seamless data exchange and integration. For instance, it can communicate with other boards or controllers in the system via Ethernet, allowing for sharing of real-time operational data, coordination of control actions, and remote monitoring and control from a central location. It can also use RS-485 or other serial communication protocols to interface with specific sensors, actuators, or legacy equipment that might be part of the turbine control infrastructure. This communication capability is essential for the overall functioning and optimization of the turbine control system, as it allows different components to work together in a coordinated manner.

Role in Industrial Systems

• Power Generation: In power generation applications, particularly in gas and steam turbine power plants, the DS3800HRCA is an integral part of the control system. It works in conjunction with other components to ensure the efficient and safe operation of the turbines. By processing and conditioning sensor signals, it helps in monitoring the health and performance of the turbine, providing crucial information for operators to make informed decisions about load adjustments, maintenance schedules, and overall system optimization.

• Industrial Manufacturing and Process Control: In industrial settings where turbines are used to drive other processes, such as in certain manufacturing plants where steam turbines power production lines or in chemical plants where gas turbines are used for mechanical drives, the DS3800HRCA plays a similar role in controlling and monitoring the turbine's operation. It ensures that the turbine provides the required power and operates in a way that meets the specific demands of the manufacturing process.

Environmental and Operational Considerations

• Temperature and Humidity Tolerance: The DS3800HRCA is engineered to operate within specific environmental conditions. It can typically function reliably in a temperature range that is common in industrial settings, usually from -20°C to +70°C. This wide temperature tolerance allows it to be deployed in various locations, from cold outdoor environments like those in power generation sites during winter to hot manufacturing areas or equipment rooms where it may be exposed to heat generated by nearby machinery.

• Electromagnetic Compatibility (EMC): To operate effectively in electrically noisy industrial environments where there are numerous motors, generators, and other electrical equipment generating electromagnetic fields, the DS3800HRCA has good electromagnetic compatibility properties. It is designed to withstand external electromagnetic interference and also minimize its own electromagnetic emissions to prevent interference with other components in the system. This is achieved through careful circuit design, the use of components with good EMC characteristics, and proper shielding where necessary, allowing the board to maintain signal integrity and reliable communication in the presence of electromagnetic disturbances.

Features:DS3800HRCA

• Analog and Digital Signal Handling: The DS3800HRCA is proficient in handling both analog and digital signals. It can receive a wide range of analog signals from various sensors positioned throughout the turbine, such as temperature sensors (including thermocouples and Resistance Temperature Detectors - RTDs), pressure sensors, vibration sensors, and others. For these analog signals, it performs essential processing steps including amplification to boost weak sensor signals to a suitable level for further processing, filtering to eliminate electrical noise and interference, and precise analog-to-digital conversion. This conversion enables the analog signals to be translated into digital format, which can then be effectively analyzed and manipulated by the board's internal digital circuitry.
•
  On the digital front, it can manage digital signals from different sources like switches, digital sensors, or status indicators within the system. Operations like logic level shifting, buffering, and decoding are carried out to ensure that the digital signals are in the appropriate format and voltage levels for the internal components and to extract useful information from encoded digital signals.
• High Signal Resolution: When dealing with analog inputs, the board typically offers a relatively high resolution for analog-to-digital conversion. The resolution might range from 10 to 16 bits, depending on the specific model. A higher resolution means that smaller variations in the input analog signals can be accurately detected and represented in the digital domain. For instance, when measuring temperature or pressure changes in a turbine system, a higher resolution allows for more precise monitoring and control, which is crucial for maintaining optimal operating conditions and detecting early signs of potential issues.
• Versatile Signal Conditioning: It provides versatile signal conditioning capabilities for different types of sensors. For example, it can handle the unique electrical characteristics of thermocouples, which produce very low voltage signals that are proportional to temperature, by applying appropriate amplification and cold junction compensation techniques. Similarly, for RTDs, it can accurately measure the resistance changes and convert them into corresponding temperature values using the correct calibration algorithms. This adaptability to various sensor types makes it suitable for a wide range of turbine monitoring applications.

• Communication Features

• Multiple Communication Interfaces: The DS3800HRCA supports multiple communication interfaces, enhancing its ability to integrate with different systems. It commonly includes Ethernet, RS-485, and potentially other serial communication interfaces. The Ethernet interface enables seamless integration into local area networks (LANs) and facilitates communication with other key components in the industrial control system, such as other controllers, operator stations, and maintenance workstations. This allows for efficient data exchange, remote monitoring, and control, empowering operators to access real-time data from a central location, make adjustments to the turbine's operation, and perform diagnostic tasks without having to be physically present near the equipment.
•
  The RS-485 interface is useful for connecting with a variety of sensors, actuators, or legacy equipment that use this protocol. It supports multi-drop communication, enabling communication with multiple devices in a serial bus configuration. This is valuable in industrial environments where different components need to exchange data over longer distances or in a networked setup.
• Wide Range of Supported Protocols: Depending on the application requirements, the board can support various communication protocols built on top of these interfaces. For example, it might be able to work with Modbus RTU (Remote Terminal Unit) protocol over RS-485 for efficient data exchange between different components in a master-slave configuration. Over Ethernet, it could support protocols like TCP/IP (Transmission Control Protocol/Internet Protocol), enabling it to communicate with a wide range of devices and systems in a networked environment. This flexibility in protocol support allows for integration with different control systems and platforms, facilitating interoperability in complex industrial settings.

• Control and Actuation Features

• Precise Actuator Control: The DS3800HRCA has the ability to generate precise control signals for a variety of actuators in the turbine system. It can send commands to motors, solenoid valves, relays, and other devices that are crucial for adjusting the operation of the turbine and its associated auxiliary systems. Based on the processed sensor signals and the programmed control logic (stored either on the board or in a connected higher-level control system), it can make fine-tuned adjustments to ensure the turbine operates under optimal conditions. For example, it can regulate the flow of fuel, steam, or cooling water by precisely controlling the position of valves, or adjust the speed of motors driving pumps or other mechanical components.
• Programmable Control Logic: The board likely incorporates programmable logic capabilities, allowing users to implement custom control algorithms. This flexibility enables engineers to tailor the control strategies to the specific requirements of the turbine application and the industrial process it's integrated into. Whether it's optimizing the startup and shutdown sequences of a steam turbine, or adjusting the load-following behavior of a gas turbine based on grid demands, the ability to program custom control logic is a significant advantage. It also enables the adaptation of the control system to changes in the turbine's performance, operating environment, or process requirements over time.

• Memory Features

• Ample Onboard Memory: The DS3800HRCA is equipped with a significant amount of onboard memory. It includes 33 EPROM (Erasable Programmable Read-Only Memory) or storage chips that can be updated and reprogrammed, along with four EEPROM (Electrically Erasable Programmable Read-Only Memory) chips. The combined storage capacity of these memory modules provides enough space to store firmware, configuration parameters, control algorithms, and other critical data that the board needs to operate and maintain its functionality over time. The ability to update and reprogram the EPROM chips allows for customization of the board's behavior and adaptation to different industrial processes and changing requirements.
• Expandable Memory Options: In addition to the existing memory chips, the board has two areas where additional EPROM or EEPROM chips can be added. One is labeled "spare" with silver attachment points, and the other is an empty black platform with connection ports. These expansion options provide the potential to increase the memory capacity further or to add custom functionality in the future. This expandability is useful as industrial applications may evolve or require more storage for advanced control algorithms, additional sensor data logging, or other purposes.

• Diagnostic and Monitoring Features

• LED Indicator Lights: The presence of one amber LED and four red LED indicator lights is a useful feature for quickly assessing the status of the board. The amber LED can provide visual cues about normal operating conditions, such as indicating that the board is powered on or that a particular mode of operation is active. The red LEDs, on the other hand, are designed to signal different types of abnormal or warning conditions, like a fault in a specific circuit, an overvoltage or overcurrent situation, or a problem with the signal processing functions. This visual feedback allows technicians and operators to promptly identify potential issues and take appropriate actions without having to rely on complex diagnostic tools immediately.
• Test Points (if applicable): Some versions of the DS3800HRCA may have test points strategically located on the board. These test points provide access to specific electrical nodes within the circuit, allowing technicians to use test equipment like multimeters or oscilloscopes to measure voltages, currents, or signal waveforms. This enables detailed troubleshooting, verification of signal integrity, and a better understanding of the internal circuitry's behavior, especially when trying to diagnose problems related to signal processing, power distribution, or communication.

• Environmental Adaptability Features

• Wide Temperature Range: The board is designed to operate within a relatively wide temperature range, typically from -20°C to +70°C. This broad temperature tolerance enables it to function reliably in various industrial environments, from cold outdoor power generation sites during winter to hot manufacturing areas or equipment rooms where it may be exposed to heat generated by nearby machinery. This ensures that the DS3800HRCA can maintain its performance and communication capabilities regardless of the ambient temperature conditions.
• Humidity and Electromagnetic Compatibility (EMC): It can handle a wide range of humidity levels within the non-condensing range common in industrial settings, usually around 5% to 95%. This humidity tolerance prevents moisture in the air from causing electrical short circuits or corrosion of the internal components. Moreover, the board has good electromagnetic compatibility properties, meaning it can withstand external electromagnetic interference from other electrical equipment in the vicinity and also minimize its own electromagnetic emissions to avoid interfering with other components in the system. This allows it to operate stably in electrically noisy environments where there are numerous motors, generators, and other electrical devices generating electromagnetic fields.

Technical Parameters:DS3800HRCA

• Power Supply
  • Input Voltage: The DS3800HRCA is designed to operate with a specific range of input voltages. It typically requires a DC voltage input in the range of 24V DC. This voltage level is commonly used in industrial control systems and is chosen to ensure stable operation and compatibility with other components in the turbine control infrastructure. The power supply also has certain current requirements, with a maximum current consumption of around 2A under normal operating conditions. This takes into account the power needed by the various components on the board, such as the microprocessor, memory chips, and signal processing circuits.
  • Power Consumption: Under normal operation, the power consumption of the DS3800HRCA generally falls within a specific range. It might consume approximately 10 to 30 watts on average, depending on factors like the level of activity in processing signals, the number of components actively engaged, and the complexity of the functions it's performing. The board is designed to be power-efficient to minimize heat generation while still providing the necessary processing power and functionality.
• Input Signals
  • Digital Inputs
    • Number of Channels: There are typically several digital input channels available, often in the range of 8 to 16 channels. These channels are designed to receive digital signals from various sources like switches, digital sensors, or status indicators within the industrial control system.
    • Input Logic Levels: The digital input channels are configured to accept standard logic levels, usually following TTL (Transistor-Transistor Logic) or CMOS (Complementary Metal-Oxide-Semiconductor) standards. A digital high level could be in the range of 2.4V to 5V, and a digital low level from 0V to 0.8V.
  • Analog Inputs
    • Number of Channels: It generally has multiple analog input channels, usually ranging from 4 to 8 channels. These channels are used to receive analog signals from sensors such as temperature sensors (thermocouples and Resistance Temperature Detectors - RTDs), pressure sensors, vibration sensors, and others.
    • Input Signal Range: The analog input channels can handle voltage signals within specific ranges. For example, they might be able to accept voltage signals from 0 - 5V DC, 0 - 10V DC, or other custom ranges depending on the configuration and the types of sensors connected. Some models may also support current input signals, typically in the range of 0 - 20 mA or 4 - 20 mA.
    • Resolution: The resolution of these analog inputs is usually in the range of 10 to 16 bits. A higher resolution allows for more precise measurement and differentiation of the input signal levels, enabling accurate representation of sensor data for further processing within the control system.
• Output Signals
  • Digital Outputs
    • Number of Channels: There are typically several digital output channels, often in the range of 8 to 16 channels as well. These channels can provide binary signals to control components like relays, solenoid valves, or digital displays within the industrial control system.
    • Output Logic Levels: The digital output channels can provide signals with logic levels similar to the digital inputs, with a digital high level in the appropriate voltage range for driving external devices and a digital low level within the standard low voltage range.
  • Analog Outputs
    • Number of Channels: It may feature a number of analog output channels, usually ranging from 2 to 4 channels. These can generate analog control signals for actuators or other devices that rely on analog input for operation, such as fuel injection valves or air intake vanes.
    • Output Signal Range: The analog output channels can generate voltage signals within specific ranges similar to the inputs, such as 0 - 5V DC or 0 - 10V DC. The output impedance of these channels is usually designed to match typical load requirements in industrial control systems, ensuring stable and accurate signal delivery to the connected devices.

Processing and Memory Specifications

• Processor
  • Type and Clock Speed: The board incorporates a 32-bit microprocessor with a specific architecture and clock speed. The clock speed is typically in the range of tens to hundreds of MHz, depending on the model. For example, it might have a clock speed of 50 MHz or higher, which determines how quickly the microprocessor can execute instructions and process the incoming signals. A higher clock speed allows for faster data analysis and decision-making when handling multiple input signals simultaneously.
  • Processing Capabilities: The microprocessor is capable of performing various arithmetic, logical, and control operations. It can execute complex control algorithms based on the programmed logic to process the input signals from sensors and generate appropriate output signals for actuators or for communication with other components in the system.
• Memory
  • Onboard Memory Capacity: The DS3800HRCA has a significant amount of onboard memory. It includes 256MB of Random Access Memory (RAM) for temporary data storage during operation. The RAM is used by the microprocessor to store and manipulate data such as sensor readings, intermediate calculation results, and communication buffers as it processes information and executes tasks.

Communication Interface Parameters

• Ethernet Interface
  • Speed and Standards: The Ethernet interface on the DS3800HRCA typically supports industry-standard Ethernet speeds, such as 10/100 Mbps. It adheres to Ethernet protocols like IEEE 802.3, enabling seamless integration with local area networks (LANs) and allowing for communication with other devices connected to the network, including computers, servers, and other industrial controllers. This interface facilitates remote monitoring, control, and data exchange over the network, making it possible to manage and oversee the operation of the industrial system from a central location.
  • MAC Address: The board has a unique Media Access Control (MAC) address assigned to its Ethernet interface, which is used to identify it on the network and ensure proper communication with other devices.
• RS-485 Interface
  • Baud Rates: The RS-485 interface supports a range of baud rates for serial communication, typically from 9600 bits per second (bps) up to higher values like 115200 bps or more, depending on the specific configuration and the requirements of the connected devices. This allows for flexible communication with other devices that use the RS-485 protocol, which is often used in industrial environments for long-distance or multi-drop communication scenarios.
  • Protocols: It can support various serial communication protocols built on top of RS-485, such as Modbus RTU (Remote Terminal Unit) protocol for communication with multiple slave devices in a master-slave configuration, enabling efficient data exchange between different components in a distributed industrial control system.

Environmental Specifications

• Operating Temperature: The DS3800HRCA is designed to operate within a specific temperature range, typically from -20°C to +70°C. This temperature tolerance allows it to function reliably in various industrial environments, from relatively cold outdoor locations to hot manufacturing areas or power plants where it may be exposed to heat generated by nearby equipment.
• Humidity: It can operate in environments with a relative humidity range of around 5% to 95% (non-condensing). This humidity tolerance ensures that moisture in the air does not cause electrical short circuits or corrosion of the internal components, enabling it to work in areas with different levels of moisture present due to industrial processes or environmental conditions.
• Electromagnetic Compatibility (EMC): The board meets relevant EMC standards to ensure its proper functioning in the presence of electromagnetic interference from other industrial equipment and to minimize its own electromagnetic emissions that could affect nearby devices. It is designed to withstand electromagnetic fields generated by motors, transformers, and other electrical components commonly found in industrial environments and maintain signal integrity and communication reliability.

Physical Dimensions and Mounting

• Board Size: The physical dimensions of the DS3800HRCA are usually in line with standard industrial control board sizes. It might have a length in the range of 8 - 12 inches, a width of 6 - 10 inches, and a thickness of 1 - 2 inches, depending on the specific design and form factor. These dimensions are chosen to fit into standard industrial control cabinets or enclosures and to allow for proper installation and connection with other components.
• Mounting Method: It is designed to be mounted securely within its designated housing or enclosure. It typically features mounting holes or slots along its edges to enable attachment to the mounting rails or brackets in the cabinet. The mounting mechanism is designed to withstand the vibrations and mechanical stress that are common in industrial environments, ensuring that the board remains firmly in place during operation and maintaining stable electrical connections.

Applications:DS3800HRCA

• Gas Turbine Applications:
  • Monitoring and Control: In gas turbine power plants, the DS3800HRCA plays a crucial role in the control system. It interfaces with numerous sensors placed throughout the gas turbine, including thermocouples and Resistance Temperature Detectors (RTDs) that measure the temperature of the combustion chamber, turbine blades, and exhaust sections. Pressure sensors in the fuel and air supply lines, as well as vibration sensors on the rotating components, also send signals to the board. The DS3800HRCA processes these analog and digital signals to monitor the health and performance of the gas turbine continuously. For example, it can detect any abnormal temperature increases in the combustion chamber, which might indicate combustion inefficiency or potential damage to turbine components. Based on this analysis, it can then send control signals to adjust the fuel injection rate, air intake vanes, or cooling mechanisms to maintain optimal operating conditions.
  • Load Management: During variations in power grid demand, the DS3800HRCA helps in adjusting the gas turbine's output. When the grid requires more power, it can increase the turbine's load by sending appropriate signals to actuators that control fuel flow and other parameters. Conversely, when the load on the grid decreases, it can reduce the turbine's output in a controlled manner to ensure efficient operation and grid stability. For instance, it can communicate with the fuel control system to decrease the amount of fuel supplied to the turbine while maintaining the necessary rotational speed and other operating parameters.
  • System Integration: The Ethernet interface of the DS3800HRCA enables seamless integration with other components in the power plant's control system. It can communicate with the main control unit that oversees multiple turbines and auxiliary systems. Additionally, it can connect with other controllers and operator stations to synchronize the operation of different parts of the power generation facility. This integration allows for coordinated control, remote monitoring from a central control room, and sharing of operational data for overall system optimization and maintenance planning.
• Steam Turbine Applications:
  • Process Parameter Monitoring: In steam turbine power plants, the DS3800HRCA interfaces with sensors that measure key parameters such as steam pressure at different points in the system, steam temperature, and the rotational speed of the turbine. It also connects with sensors monitoring the condition of the condenser, like cooling water temperature and pressure. By receiving and processing these signals, the board helps in maintaining the steam turbine's optimal operating conditions. For example, if the steam pressure drops below a certain level, it can trigger an alarm or communicate with the control system to adjust the steam supply valves to restore the proper pressure.
  • Startup and Shutdown Coordination: During startup and shutdown procedures of steam turbines, the DS3800HRCA is responsible for coordinating the sequence of events. It ensures that the steam inlet valves open or close gradually to warm up or cool down the turbine safely, preventing thermal stress on the components. It also controls the operation of feedwater pumps and other auxiliary systems in the correct order. For instance, during startup, it can start the feedwater pump at the appropriate time to supply water to the boiler and maintain the steam generation process while gradually increasing the steam flow to the turbine.
  • Remote Monitoring and Optimization: With its Ethernet connectivity, the DS3800HRCA enables remote monitoring of the steam turbine's performance from a control center located away from the actual plant. Operators can track parameters like turbine efficiency, power output, and any potential issues in real-time. This allows for proactive maintenance, as technicians can identify and address problems before they lead to major failures. Moreover, the data collected can be used to optimize the turbine's operation over time, such as adjusting control parameters to improve energy conversion efficiency.

Oil and Gas Industry

• Gas Compression: In oil and gas production and transportation, compressor stations are crucial for increasing the pressure of natural gas to facilitate its flow through pipelines. Gas turbines are often used to drive these compressors. The DS3800HRCA is employed to control the operation of these turbines to ensure efficient and reliable gas compression. It monitors parameters like the inlet and outlet pressures of the compressor, the temperature of the gas, and the turbine's speed. Based on this data, it adjusts the fuel supply and other control parameters to maintain the desired compression ratio and flow rate.
• Condition Monitoring: The board continuously monitors the health of the turbine and compressor system. It can detect early signs of wear and tear, such as changes in vibration patterns or component temperatures. This information is valuable for scheduling preventive maintenance and avoiding unexpected breakdowns, which could disrupt gas production and transportation. For example, if the vibration levels of the turbine exceed a certain threshold, it can alert operators to conduct inspections and perform necessary repairs before a more serious failure occurs.
• Remote Operation and Management: With its Ethernet interface, the DS3800HRCA allows for remote operation and management of compressor station turbines. Operators can monitor and control multiple compressor stations from a central location, making it easier to manage a large network of gas production and transportation infrastructure. This remote capability improves operational efficiency and enables quick response to any issues that arise in the field.

Industrial Manufacturing

• Powering Manufacturing Processes: In many manufacturing industries, turbines are used to provide mechanical power for driving various processes. For example, in a paper mill, steam turbines can drive the rollers that press and dry the paper. The DS3800HRCA controls the operation of these turbines to ensure that the rollers rotate at the correct speed and with the appropriate torque. It receives signals from sensors that monitor the speed and load of the rollers and adjusts the turbine's output accordingly. This precise control helps in maintaining consistent paper quality and production efficiency.
• Process Optimization: In chemical plants, gas turbines may be used to power compressors that circulate gases through the production process. The DS3800HRCA monitors the pressure and flow requirements of the chemical processes and adjusts the turbine's operation to meet these demands. By continuously analyzing the sensor data and making real-time adjustments, it can optimize the use of energy and ensure that the chemical reactions proceed smoothly. For instance, it can control the turbine's speed to maintain the right pressure in a reaction vessel, enhancing the overall productivity and quality of the chemical products.
• Equipment Protection: The board also plays a role in protecting the manufacturing equipment by monitoring the turbine's operating conditions. If it detects abnormal vibrations, temperature spikes, or other signs of potential malfunctions, it can take immediate action to shut down the turbine or adjust its operation to prevent damage to the connected machinery. This helps in minimizing downtime and reducing maintenance costs in the manufacturing process.

Customization:DS3800HRCA

• Firmware Customization:
  • Control Algorithm Customization: Depending on the unique characteristics of the application and the specific industrial process it's integrated into, the firmware of the DS3800HRCA can be customized to implement specialized control algorithms. For example, in a gas turbine used for power generation in a region with frequent and rapid load changes in the power grid, custom algorithms can be developed to enable the turbine to respond more quickly and smoothly to such variations. This might involve optimizing the way the board adjusts fuel injection and air intake based on real-time grid demand signals and turbine performance metrics.

• Fault Detection and Handling Customization: The firmware can be configured to detect and respond to specific faults in a customized manner. Different applications may have distinct failure modes or components that are more prone to issues. In a marine turbine application where the equipment is exposed to harsh saltwater environments and high vibrations from the ship's movement, the firmware can be programmed to perform more frequent checks on sensors related to corrosion and vibration.

• Communication Protocol Customization: To integrate with existing industrial control systems that may use different communication protocols, the DS3800HRCA's firmware can be updated to support additional or specialized protocols. In a power plant that has legacy systems still using older serial communication protocols for some of its monitoring and control functions, the firmware can be modified to enable seamless data exchange with those systems.

• Data Processing and Analytics Customization: The firmware can be customized to perform specific data processing and analytics tasks relevant to the application. In a chemical manufacturing process where a turbine is driving a reaction vessel and precise temperature and pressure control is crucial, the firmware can be programmed to analyze sensor data related to these parameters over time. It could calculate trends, predict potential process deviations, and adjust the turbine's operation proactively to maintain optimal reaction conditions.

Hardware Customization

• Input/Output (I/O) Configuration Customization:
  • Analog Input Adaptation: Depending on the types of sensors used in a particular application, the analog input channels of the DS3800HRCA can be customized. In a gas turbine used in a power plant with specialized high-temperature sensors that have a non-standard voltage output range, additional signal conditioning circuits like custom resistors, amplifiers, or voltage dividers can be added to the board. These adaptations ensure that the unique sensor signals are properly acquired and processed by the board.

• Digital Input/Output Customization: The digital input and output channels can be tailored to interface with specific digital devices in the system. In a manufacturing plant with a custom safety interlock system that uses digital sensors with unique voltage levels or logic requirements, additional level shifters or buffer circuits can be incorporated. This ensures proper communication between the DS3800HRCA and these components.

• Power Input Customization: In industrial settings with non-standard power supply configurations, the power input of the DS3800HRCA can be adapted. For example, in an offshore oil platform where the power supply is subject to significant voltage fluctuations and harmonic distortions due to the complex electrical infrastructure, custom power conditioning modules like DC-DC converters or advanced voltage regulators can be added to the board. These ensure that the board receives stable and appropriate power, safeguarding it from power surges and maintaining its reliable operation.

• Add-On Modules and Expansion:
  • Enhanced Monitoring Modules: To improve the diagnostic and monitoring capabilities of the DS3800HRCA, extra sensor modules can be added. In a gas turbine application where more detailed blade health monitoring is desired, additional sensors like blade tip clearance sensors, which measure the distance between the turbine blade tips and the casing, can be integrated. The data from these sensors can then be processed by the board and used for more comprehensive condition monitoring and early warning of potential blade-related issues.

• Communication Expansion Modules: If the industrial system has a legacy or specialized communication infrastructure that the DS3800HRCA needs to interface with, custom communication expansion modules can be added. In a power plant with an older SCADA (Supervisory Control and Data Acquisition) system that uses a proprietary communication protocol for some of its legacy equipment, a custom module can be developed to enable the DS3800HRCA to communicate with that equipment.

Customization Based on Environmental Requirements

• Enclosure and Protection Customization:
  • Harsh Environment Adaptation: In industrial environments that are particularly harsh, such as those with high levels of dust, humidity, extreme temperatures, or chemical exposure, the physical enclosure of the DS3800HRCA can be customized. In a desert-based power plant where dust storms are common, the enclosure can be designed with enhanced dust-proof features like air filters and gaskets to keep the internal components of the board clean. Special coatings can be applied to protect the board from the abrasive effects of dust particles.

• Thermal Management Customization: Depending on the ambient temperature conditions of the industrial setting, custom thermal management solutions can be incorporated. In a facility located in a hot climate where the control board might be exposed to high temperatures for extended periods, additional heat sinks, cooling fans, or even liquid cooling systems (if applicable) can be integrated into the enclosure to maintain the device within its optimal operating temperature range.

Customization for Specific Industry Standards and Regulations

• Compliance Customization:
  • Nuclear Power Plant Requirements: In nuclear power plants, which have extremely strict safety and regulatory standards, the DS3800HRCA can be customized to meet these specific demands. This might involve using materials and components that are radiation-hardened, undergoing specialized testing and certification processes to ensure reliability under nuclear conditions, and implementing redundant or fail-safe features to comply with the high safety requirements of the industry.

• Aerospace and Aviation Standards: In aerospace applications, there are specific regulations regarding vibration tolerance, electromagnetic compatibility (EMC), and reliability due to the critical nature of aircraft operations. The DS3800HRCA can be customized to meet these requirements. For example, it might need to be modified to have enhanced vibration isolation features and better protection against electromagnetic interference to ensure reliable operation during flight.

Support and Services:DS3800HRCA

Our product technical support team is available to assist you with any questions or issues you may have with your Other product. Our services include:

• Technical troubleshooting
• Software and firmware updates
• Warranty support
• Product training and education
• Repair and replacement services

We are committed to providing excellent customer service and ensuring that your Other product meets your expectations. Please do not hesitate to contact us for assistance.
