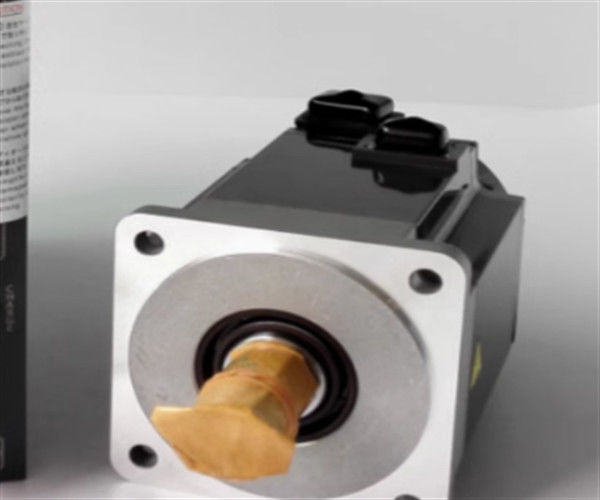

Mitsubishi Servo Motor- HC-SFS352K Keyed Shaft, Built-In Absolute Feedback Encod

Product Descriptions  of HC-SFS352K

The HC-SFS352K is highly efficient and precise automation hardware that belongs to Mitsubishi's prestigious MELSERVO J2S series. The device in question is an alternating current (AC) brushless rotary servo motor, which is a crucial component in various automation systems that require rapid, accurate, and regulated rotational motions. The design of the system prominently features the integration of a keyed shaft and a built-in absolute feedback encoder. The 17-bit encoder is a crucial component that provides a resolution of 131072 pulses per revolution (ppr). It functions as a precise tracking system for the motor's position, thereby improving the control precision of the motor. An integrated oil seal is a component that enhances the motor's durability and reliability by preventing oil leakage. This feature ensures consistent and efficient performance of the motor across various operating conditions. The HC-SFS352K operates using a supply voltage class of 200 volts AC and has an active power output of 3.5 kW.This enables it to deliver a rated rotational speed of 2000 revolutions per minute (rpm), with the ability to reach a maximum speed of 2500 rpm under optimal conditions. The motor's speed capabilities, combined with a nominal torque performance of 16.7 Nm and a maximum torque of 50.1 Nm, enable efficient handling of demanding applications. The HC-SFS352K is equipped with an IP65 protection rating, which safeguards the motor against dust and water. This feature ensures the motor's durability and performance in different environmental conditions. The Mitsubishi HC-SFS352K AC servo motor has established itself as a leading product in the field. Its carefully engineered features and strong performance specifications make it an ideal choice for precision-driven automation systems, providing a dependable solution.

Technical Specifications for HC-SFS352K

The HC-SFS352K, manufactured by Mitsubishi, is an alternating current (AC) brushless rotary servo motor that is part of the highly regarded MELSERVO J2S series. This motor is recognized for its dependable performance and effectiveness in a wide range of automated industrial applications. The device is equipped with a keyed shaft and incorporates a 17-bit absolute feedback encoder. The device's technical specifications consist of a 200V AC class supply voltage, a rated active power of 3.5kW, and a maximum rotational speed of 2500rpm. These specifications enable the device to generate a high torque of up to 50.1Nm, making it well-suited for applications that demand precise and controlled movement.
