| Place of Origin: | Japan |
| Brand Name: | Mitsubishi |
| Certification: | CE |
| Model Number: | HF-SP121 |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiated |
| Packaging Details: | New Original |
| Delivery Time: | 3-5days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 1000 |
| Brand: | Mitsubishi | Product Type: | Industrial Servo Drives |
|---|---|---|---|
| Part Number: | HF-SP121 | Place Of Origin: | Japan |
| Frequency: | 200-230 VAC | Power: | 200W |
| Highlight: | Medium-Inertia Servo Motor,HF-SP121 Servo Motor,1.2kW Servo Motor |
||

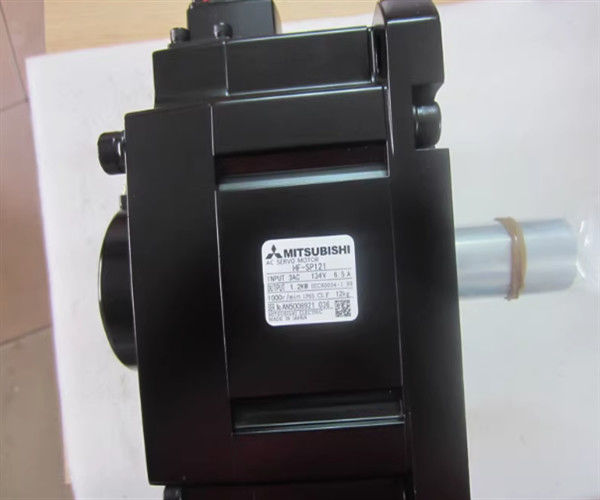

Mitsubishi Motor Servo HF-SP121 Medium-Inertia 1.2kW Servo Motor
Product Descriptions of HF-SP121
The Mitsubishi HF-SP121 rotary servo motor delivers efficient performance across a medium application range. It operates under a 200VAC voltage class, ensuring compatibility with standard industrial systems. This model exhibits a rated speed of 1,000 RPM while having the capacity to reach a maximum speed of 1,500 RPM. This flexibility allows it to adapt to various operational demands effectively.
This servo motor is characterized by medium inertia, which aids in achieving stable performance and responsiveness. It has a rated torque of 11.5 Newton-meters, which is suitable for a wide range of mechanical functions. The current consumption is rated at 6.5 Amps, with an upper limit of 19.5 Amps, providing sufficient headroom for variable operational conditions.
The HF-SP121 is designed for use in environments with operating temperatures ranging from 32°F to 104°F and can be stored safely in conditions ranging from 5°F to 158°F. Protection against external environmental factors is supplied by the motor's IP67 enclosure rating, making it highly resistant to dust and water ingress. This motor is equipped with a standard straight shaft, simplifying integration into existing systems. However, it should be noted that it does not include an electromagnetic brake, aligning it with specific application requirements that do not necessitate this feature.
| Manufacturer | Mitsubishi |
|---|---|
| Series | HF Series |
| Part Number | HF-SP121 |
| Voltage Class | 200VAC Class |
| Enclosure Rating | IP67 |
| Operating Temperature | 32 to 104 degrees Fahrenheit |
| Storage Temperature | 5 to 158 degrees Fahrenheit |
| Inertia | Medium Inertia |
| Rated Torque | 11.5 Newton-meters |
| Capacity | Medium Capacity |
| Electromagnetic Brake | Not Included |
| Motor Speed | 1,000 revolutions per minute (RPM) |
| Rated Current | 6.5 Amps |
| Output Power Rating | 1.2 kilowatts |
| Type of Shaft | Straight Shaft (Standard) |
| Maximum Motor Speed | 1,500 revolutions per minute (RPM) |
| Maximum Current | 19.5 Amps |
| Product Type | Rotary Servo Motor |
The HF-SP121 by Mitsubishi is a rotary servo motor designed for medium power applications. It operates at a voltage class of 200VAC and offers a maximum speed of 1,500 RPM, achieving a steady rated speed of 1,000 RPM, making it a reliable choice for various tasks.
