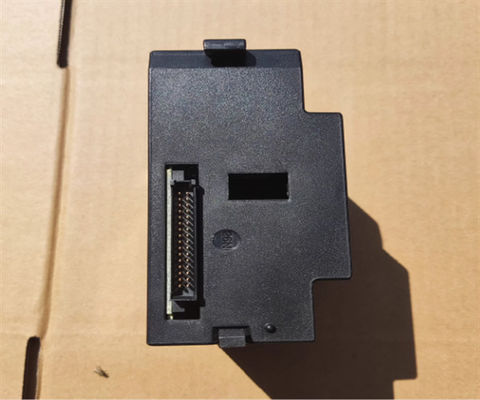

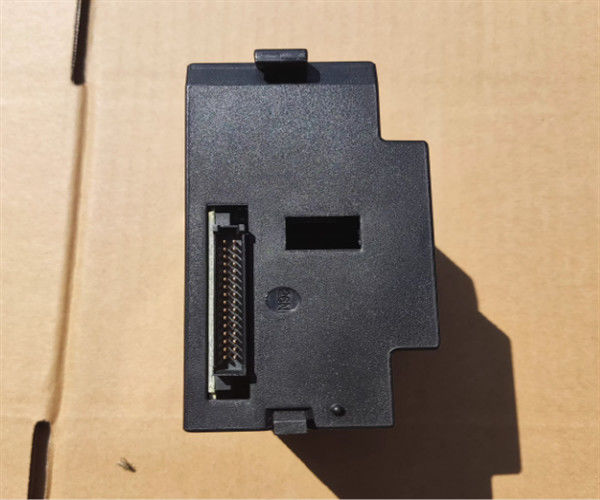

Remanufactured GE-Emerson IC693MDL732 12/24 VDC Output Module

Product Description  of  IC693MDL732

This module is designed for the Series 90-30 PLC system and provides 8 output points grouped together. It operates with positive logic, meaning it sources current to the loads from the user’s common or positive power bus. The connected device (such as motor starters, solenoids, or indicators) is placed between the negative power bus and the module output. The power to operate these devices must come from an external power supply provided by the user.



Key Features of IC693MDL732:

8 outputs, all grouped with a common power output terminal.
Works with positive logic, meaning it sources current to the loads.
Compatible with motor starters, solenoids, indicators, and other user-supplied devices.
Requires a user-supplied power source to operate field devices.



LED Indicators:

Green LEDs located at the top of the module provide the ON/OFF status for each output point.
The top row of LEDs is labeled A1 through A8, representing points 1 through 8.
This module does not have any fuses.
An insert is placed between the inside and outside surface of the hinged door for circuit wiring and identification purposes. The module is color-coded blue to indicate it is a low-voltage module.



Technical Details of IC693MDL732:

Rated Voltage: 12/24 volts DC.
Output Voltage Range: 12 to 24 volts DC (+20%, -15%).
Isolation: 1500 volts between the field side and logic side.
Output Current:
0.5 amps maximum per output point.
2 amps maximum per common.
Inrush Current: Maximum of 4.78 amps for 10 ms.
Output Voltage Drop: Maximum of 1 volt.
Off-state Leakage: Maximum of 1 mA.
On/Off Response Time: Maximum of 2 ms for both on and off states.
