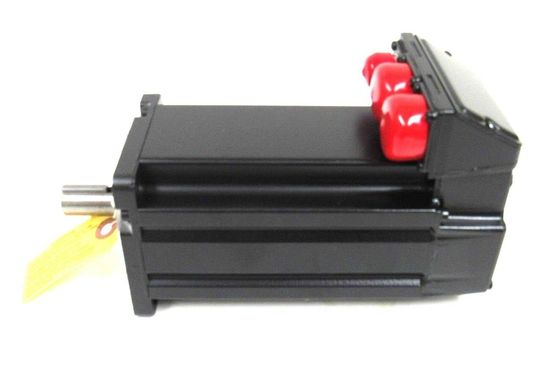

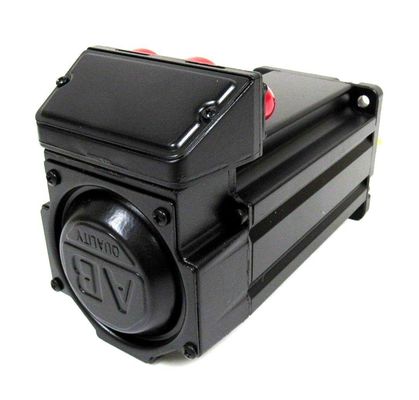

ALLEN-BRADLEY MPL-B320P-MJ24AA MP-Series MPL 480V AC Rotary Servo Motor

Product Description:MPL-B320P-MJ24AA

1. High Torque and Efficiency:

   • The MPL-B320P-MJ24AA motor is engineered to deliver high torque output while maintaining efficiency. This makes it ideal for demanding motion control applications that require consistent performance over time.
   • Its permanent magnet design provides superior torque density, meaning it can generate more torque for the same physical size compared to standard induction motors.

2. Precision Control:

   • The motor is typically used in conjunction with Allen-Bradley Kinetix or PowerFlex drives, which allows for precise speed, torque, and position control. This is critical in applications like robotics, material handling, and packaging where precision is a top priority.

3. Integrated Encoder:

   • Many MPL motors, including the B320P-MJ24AA, come with an integrated encoder. This provides real-time feedback to the drive system, ensuring precise motor control. The encoder enables the system to monitor speed, position, and direction, improving accuracy in motion applications.

4. Compact and Robust Design:

   • The MPL Series motors are designed to be compact yet powerful. This makes them suitable for use in space-constrained environments or in applications where motor weight and size are factors.
   • These motors are built to withstand industrial conditions and are durable enough to handle continuous operation in demanding environments.

5. Wide Range of Applications:

   • Industrial Robotics: The motor’s high precision and torque capabilities make it ideal for robotics applications, where exact movement control is critical.
   • Conveyors and Material Handling: The motor is often used in conveyor systems, packaging machines, and other material handling systems that require high-performance motion control.
   • Automated Manufacturing: Its precision and reliability make it well-suited for high-speed automated production lines, CNC machines, and assembly systems.

6. Voltage and Power:

   • The MPL-B320P-MJ24AA motor is designed to operate on a three-phase AC power supply. Voltage ranges can vary but generally fall within 200V to 480V, depending on the specific configuration of the motor.
   • It is part of the high-performance motor class in the Allen-Bradley catalog, optimized for use in systems where minimizing downtime and maximizing throughput are crucial.

7. Customization Options:

   • The MJ24AA part of the model number likely indicates a specific configuration, which may include options like shaft type, mounting configuration, and other customizations. These allow the motor to be tailored for particular needs within different machine designs.

The Allen-Bradley MPL-B320P-MJ24AA motor is typically found in:

• Robotic arms and automation systems
• CNC machinery
• Packaging and labeling systems
• Material handling systems
• Automated guided vehicles (AGVs)
• Conveyor belts in production lines
• High Efficiency: Permanent magnet design reduces energy consumption compared to traditional motors.
• Compact Design: Ideal for installations where space is limited.
• Precision Feedback: Ensures that systems operate smoothly and accurately, minimizing errors.
• Durability: Built for industrial environments, ensuring long operational lifespans.
• Seamless Integration: Works well with Allen-Bradley drives and control systems, making it easy to integrate into existing automation setups.

Features:MPL-B320P-MJ24AA

• Permanent Magnet Synchronous Motor (PMSM) Technology:

  • High Torque Density: Utilizes permanent magnets to produce high torque for the size of the motor, enabling better performance in compact form factors.
  • Improved Efficiency: PMSM motors are generally more efficient than traditional induction motors, reducing energy consumption and heat generation.
  • High Power-to-Weight Ratio: Provides a high output relative to its size, ideal for space-constrained or lightweight applications.

• Integrated Encoder for Precision Feedback:

  • Position and Speed Control: The motor includes an integrated encoder that provides feedback on the motor's position, speed, and direction of rotation.
  • High Precision: This enables precise control over motion, ensuring accurate positioning in applications like robotics, conveyors, and automated machines.
  • Closed-Loop Control: Works seamlessly with Allen-Bradley Kinetix or PowerFlex drives, enabling high-precision, closed-loop control systems.

• Compact and Robust Design:

  • Space-Saving: The compact design allows for integration into tight spaces, making it ideal for applications where motor size and weight are important factors.
  • Durable Construction: Built to withstand harsh industrial environments, including heavy use, vibrations, and temperature fluctuations.

• Wide Voltage Range:

  • The MPL-B320P-MJ24AA can typically operate across a range of voltages (e.g., 200V to 480V AC), making it versatile for use in different industrial power supply environments.

• High-Speed Performance:

  • The motor can operate at high speeds (typically in the range of 1500 to 3000 RPM), providing rapid response in dynamic applications where speed and precision are critical.

• High-Performance Motion Control:

  • When used with Allen-Bradley Kinetix or PowerFlex drives, the motor offers high levels of performance control, such as torque control, speed control, and positioning.
  • Provides low cogging, smooth motion, and fast response time, making it ideal for applications that require precise movements.

• Customizable Features (MJ24AA Variant):

  • The MJ24AA part of the model number suggests specific options and configurations that can be customized based on the motor’s application needs, such as shaft type, mounting configuration, or other mechanical features tailored to specific machinery.

• Suitable for High-Demand Applications:

  • Robotics: Ideal for robotic arms, automated guided vehicles (AGVs), and other precision-driven robotic systems.
  • Material Handling and Conveyors: Perfect for high-precision conveyor systems in manufacturing, packaging, and assembly lines.
  • CNC Machines and Precision Equipment: Well-suited for applications where high speed, low backlash, and high accuracy are essential.

• Seamless Integration with Control Systems:

  • The motor is designed to integrate easily with Allen-Bradley’s Kinetix motion control systems, PowerFlex variable frequency drives (VFDs), and Studio 5000 software. This makes setup and tuning simpler and more efficient.
  • Ensures compatibility with the Rockwell Automation ecosystem, simplifying control and monitoring for industrial applications.

• Low Maintenance:

• The permanent magnet design reduces wear and tear on the motor’s internal components, resulting in less frequent maintenance and longer operational life.
• High Overload Capacity:
• The motor is capable of handling temporary overloads without damage, making it ideal for applications where occasional spikes in load may occur.
• Environmentally Friendly:
• Due to its high efficiency and low energy consumption, the MPL-B320P-MJ24AA motor can help reduce overall system energy usage, contributing to more sustainable and cost-effective industrial operations.

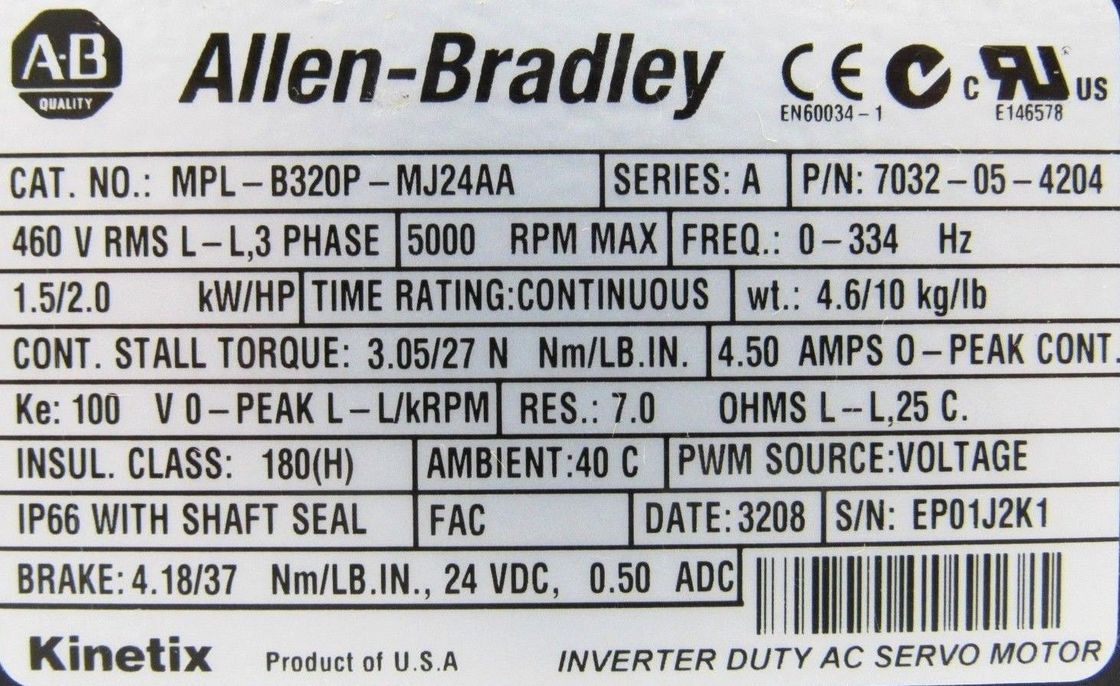

Technical Parameters:MPL-B320P-MJ24AA

Applications:MPL-B320P-MJ24AA
