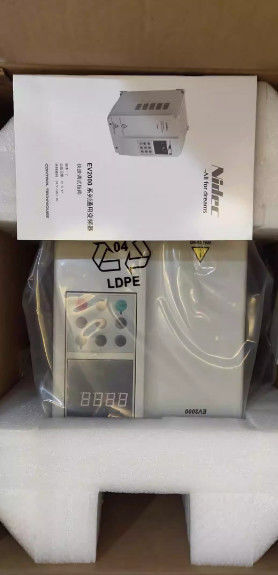

Emerson EV2000-4T0075G/0110P 1.5kw Inverter 380V Power Supply

Emerson inverter series models and parameters
1, EV800 series (single-phase/three-phase, 220V, for OEM customers, replacing TD900)
Model Power (KW)
EV800-2S0002G 0．25
EV800-2S0004G 0．4
EV800-2S0005G 0．55
EV800-2S0007G 0．75
EV800-2D0011G 1．1
EV800-2D0015G 1．5
EV800-2T0022G 2．2
2, EV800 series (three-phase, 380V, for OEM customers, replacing TD900)
Model Power (KW)
EV800-4T0004G 0．4
EV800-4T0005G 0．55
EV800-4T0007G 0．75
EV800-4T0011G 1.1
EV800-4T0015G 1．5
EV800-4T0022G 2．2
EV800-4T0030G 3.0
EV800-4T0037G 3.7
It has been discontinued and now needs to be replaced with EV1000 or SK series. The EV800 itself has software defects that cannot be resolved, so it is best not to recommend customers to use EV800

3, EV1000G series (single-phase, 220V, dedicated for constant torque loads)
Model Power (KW)
EV1000-2S0004G 0．4
EV1000-2S0007G 0．75
EV1000-2S0015G 1.5
EV1000-2S0022G 2.2
4, EV1000G series (three-phase, 380V, dedicated for constant torque load)
Model Power (KW)
EV1000-4T0007G 0.75
EV1000-4T0015G 1.5
EV1000-4T0022G 2.2
EV1000-4T0037G 3.7
EV1000-4T0055G 5.5
EV1000-4T0037P 3.7
EV1000-4T0055P 5.5
There is no distinction between P and G series, they only represent different types of loads, with G indicating constant torque, generally used for heavy-duty general loads; P indicates the load of the fan pump, generally used for light loads such as fan pumps, except for water pumps specifically designed for water supply.

6, EV2000G series (three-phase, 380V, constant torque frequency converter)
Model Power (KW) Constant torque/Square decreasing torque
EV2000-4T0055G/0075P 5.5/7.5
EV2000-4T0075G/0110P 7.5/11
EV2000-4T0110G/0150P 11/15
EV2000-4T0150G/0185P 15/18.5
EV2000-4T0185G/0220P 18.5/22
EV2000-4T0220G/0300P 22/30
EV2000-4T0300G/0370P 30/37
EV2000-4T0370G/0450P 37/45
EV2000-4T0450G/0550P 45/55
EV2000-4T0550G 55
EV2000-4T0750G 75
EV2000-4T0900G 90
EV2000-4T1100G 110
EV2000-4T1320G 132
EV2000-4T1600G 160
EV2000-4T2000G 200
EV2000-4T2200G 220
EV2000-4T0750P 75
EV2000-4T0900P 90
EV2000-4T1100P 110
EV2000-4T1320P 132
EV2000-4T1600P 160
EV2000-4T2000P 200
EV2000-4T2200P 220
EV2000-4T2500P 250
There is no distinction between P and G series, they only represent different types of loads, with G indicating constant torque, generally used for heavy-duty general loads; P indicates the load of the fan pump, generally used for light loads such as fan pumps, except for water pumps specifically designed for water supply.

8, TD2100 series (three-phase, 380V, dedicated for water supply, including PLC)
Model Power (KW)
TD2100-4T0055S 5.5
TD2100-4T0075S 7.5
TD2100-4T0110S 11
TD2100-4T0150S 15
TD2100-4T0185S 18.5
TD2100-4T0220S 22
TD2100-4T0300S 30
TD2100-4T0370S 37
TD2100-4T0450S 45
TD2100-4T0550S 55
TD2100-4T0750S 75

The EV3000 series high-capacity frequency converter will be discontinued in August 2014.
The latest product of EV2100, a dedicated fan frequency converter, is a simplified version of EV2000. The price range of 45kw and above has advantages.
The EV5000 series high-capacity frequency converter is a new type that can be equipped with cards, replacing the EV3000 5000 TD3300 series.

The SK series is a compact frequency converter, produced according to the same standards as the SP series. It can be equipped with external cards and modules to achieve multiple functions.

The SP series is a servo unified drive that can be used for both servo and frequency conversion, making it the most high-end application
The UNI series has been discontinued and replaced with the SP series.
SE discontinued series, replaced by SK
The above is for communication

The following is DC

The M series is a DC speed regulation, discontinued series.

MP is a DC speed regulation device, replacing the M series.

DCD is a small DC servo.
