| Place of Origin: | Japan |
| Brand Name: | Mitsubishi |
| Certification: | CE |
| Model Number: | HC-SFS202 |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiated |
| Packaging Details: | New Original |
| Delivery Time: | 3-5days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 1000 |
| Brand: | Mitsubishi | Product Type: | Industrial Servo Drives |
|---|---|---|---|
| Part Number: | HC-SFS202 | Place Of Origin: | Japan |
| Frequency: | 200-230 VAC | Power: | 200W |
| Highlight: | Electric Automation Servomotor,Mitsubishi MELSERVO-J2S Servomotor,2kW Servomotor |
||

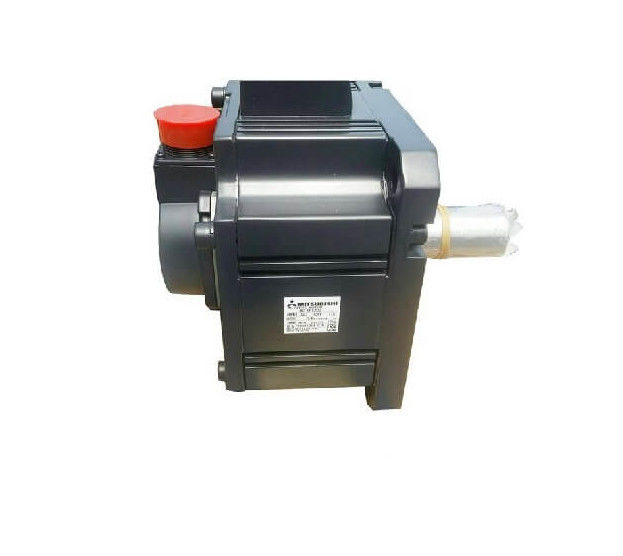

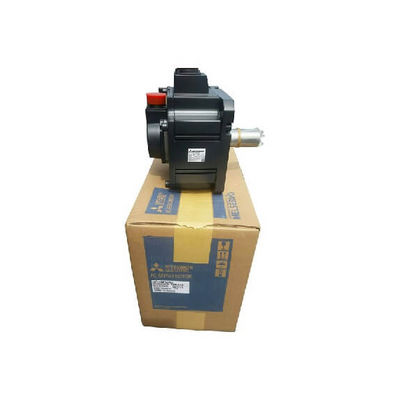

Mitsubishi MELSERVO-J2S Servomotor 2kW HC-SFS202 Electric Automation
Mitsubishi manufactured the HC-SFS202 is a MELSERVO HC series servo motor with a 2 kilowatts output power; it is designed to work with a wide range of Mitsubishi servo amplifiers; the torque of the servo motor is 9.55 (N x m) or 1352.3 (oz x in) and can be increased to 28.5 (N x m) or 4035.6 (oz x in). This servo motor has a standard speed of 2000 rev/min, but it can be increased to 2500 rev/min. At least for the time being, the servo motor can still run at speeds of 2875 rev/min. The HC-SFS202 servo motor has a moment of inertia of 52.5 J (x10-4kg x m2) or 287 J (oz x in2), which is higher than usual due to the brake. Ultimately, the standard current is 11 amps, but it can be increased to 33 amps. This servo may be linked to the servo motor via a brake. Using an encoder cable, the users can connect the encoder of the HC-SFS202 servo motor to the CN2 port of the designated amplifier. The other method is to connect the servo motor to the screw terminals (U, V, and W) on the top row of the servo amplifier using a cable and a power supply cable. The goal is for the HC-SFS202B servo motor to communicate with the amplifier's integrated power supply. This type of servo motor is widely used in a variety of industrial applications, particularly in automation and robotics, where precise control of position, speed, and torque is required. They are well-known for their high levels of efficiency, accuracy, and responsiveness.
The HC-SFS202 is 2 kilowatt rated AC brushless rotary servo motor that is well-suited for applications requiring high accuracy, precision, and reliability; it can be used in a wide range of industrial applications; it is compatible with Mitsubishi servo amplifiers. This servo unit is protected from dust particles and water splashes by an IP65-rated enclosure, and it has flange mounting capability. It can also operate in temperatures ranging from 0 to 40 degrees Celsius.
Detail of HC-SFS202
| Primary brand | Mitsubishi Electric |
| Main function | AC servo motor |
| Product series / family name | MELSERVO J2S series |
| Sub-range name | HC-SF series |
| Functions | AC brushless rotary servo motor |
| Design | straight shaftbuilt-in absolute feedback encod. (17-bit)oil sealmedium inertia / medium power capacity |
| Supply voltage (AC) | 200Vac class |
| Rated current | 11A |
| Rated active power (kW) | 2000W / 2kW |
| Rotational speed | 2000rpm2500rpm (maximum) |
| Torque | 9.55Nm nominal |
| Maximum torque | 28.5Nm |
| Moment of inertia | 0.00425kg.m2 (42.5kg.cm2) |
| Net Height (mm) | 230 mm |
| Net Width (mm) | 176 mm |
| Net Depth (mm) | 224 mm |
| Mounting mode | 176x176mm flange mounting |
| Resolution | 17-bit (equivalent to 131072ppr) feedback |
| Degree of protection | IP65 |
| Dimensions | H230mm x W176mm x D224mm |
| Ambient air temperature for operation | 0…+40 °C |
| Ambient air temperature for storage | -15°C…+70 °C |
| Maximum current | 33 A |
| Order code / Manufacturer SKU | HC-SFS202 |
| Product ID | hc-sfs202 |
|---|---|
| Manufacturer | Mitsubishi |
| Type | Medium inertia power motor |
| Motor series | Low inertia, low power. |
| Rated output power | 0.1kw. |
| Rated speed | 2000r/min. |
| Shaft end | Standard (straight) |
| Protection level | IP65 (IP67) |
| Modes for selection | 3 |
| Transmission machinery | Supported Application |
| Robots | Supported |
| X-Y working platform | Supported |
| High resolution encoder | 131072p/rev (17 bit). |
A quality and reliable AC servo motor unit for a range of motion control applications is the Mitsubishi HC-SFS202. This Mitsubishi-made servo motor unit's IP65 (IP67) grade attests to its exceptional toughness and security. This guarantees resistance against dust infiltration and water infiltration, enabling deployment in difficult situations. With three selectable modes, the HC-SFS202 exhibits its adaptability by allowing the motor's functioning to be effortlessly adjusted to a variety of application needs.
Models of Mitsubishi drive
| Servo amplifier | Servo motor with functional safety |
|---|---|
| MR-J4-10GF-RJ MR-J4-10B-RJ MR-J4-10A-RJ |
HG-KR053(B)W0C, 13(B)W0C |
| MR-J4-20GF-RJ MR-J4-20B-RJ MR-J4-20A-RJ |
HG-KR23(B)W0C |
| MR-J4-40GF-RJ MR-J4-40B-RJ MR-J4-40A-RJ |
HG-KR43(B)W0C |
| MR-J4-60GF-RJ MR-J4-60B-RJ MR-J4-60A-RJ |
HG-SR51(B)W0C, 52(B)W0C HG-JR53(B)W0C. |
| MR-J4-70GF-RJ MR-J4-70B-RJ MR-J4-70A-RJ |
HG-KR73(B)W0C HG-JR73(B)W0C |
| MR-J4-100GF-RJ MR-J4-100B-RJ MR-J4-100A-RJ |
HG-SR81(B)W0C, 102(B)W0C HG-JR53(B)W0C (Note 1, 3), 103(B)W0C |
| MR-J4-200GF-RJ MR-J4-200B-RJ MR-J4-200A-RJ |
HG-SR121(B)W0C, 201(B)W0C, 152(B)W0C, 202(B)W0C HG-JR73(B)W0C (Note 1, 3), 103(B)W0C (Note 1, 3), 153(B)W0C, 203(B)W0C |
| MR-J4-350GF-RJ MR-J4-350B-RJ MR-J4-350A-RJ |
HG-SR301(B)W0C, 352(B)W0C HG-JR153(B)W0C (Note 1), 203(B)W0C (Note 1), 353(B)W0C |
| MR-J4-500GF-RJ MR-J4-500B-RJ MR-J4-500A-RJ |
HG-SR421(B)W0C, 502(B)W0C HG-JR353(B)W0C (Note 1), 503(B)W0C |
| MR-J4-700GF-RJ MR-J4-700B-RJ MR-J4-700A-RJ |
HG-SR702(B)W0C HG-JR503(B)W0C (Note 1), 703(B)W0C, 701M(B)W0C |
| MR-J4-11KGF-RJ MR-J4-11KB-RJ MR-J4-11KA-RJ |
HG-JR903(B)W0C, 11K1M(B)W0C |
| MR-J4-15KGF-RJ MR-J4-15KB-RJ MR-J4-15KA-RJ |
HG-JR15K1M(B)W0C |
| MR-J4-22KGF-RJ MR-J4-22KB-RJ MR-J4-22KA-RJ |
HG-JR22K1MW0C |
MDS series Servo Drive
| MDS-D-V1-20 | MDS-D-V1-40 | MDS-D-V1-80 | MDS-D-V1-160 | MDS-D-V1-160W |
| MDS-D-V1-320W | MDS-D-V2-2020 | MDS-D-V2-4020 | MDS-D-V2-4040 | MDS-D-V2-8040 |
| MDS-D-V1-320 | MDS-D-V2-8080 | MDSD-V2-16080 | MDS-D-V2-160160 | MDS-D-V2-160160W |
| MDS-DM-V3-202020 | MDS-DM-V3-404040 | MDS-D-SP-20 | MDS-D-SP-40 | MDS-D-SP-80 |
| MDS-D-SP-160 | MDS-D-SP-200 | MDS-D-SP-240 | MDS-D-SP-320 | MDS-D-SP-400 |
| MDS-D-SP-640 | MDS-D-SP2-2020 | MDS-D-SP2-4020 | MDS-D-SP2-4040S | MDS-D-SP2-8040 |
| MDS-D-SP2-8080 | MDS-D-SP2-16080S | MDS-D-CV-37 | MDS-D-CV-75 | MDS-D-CV-110 |
| MDS-D-CV-185 | MDS-D-CV-300 | MDS-D-CV-370 | MDS-D-CV-450 | MDS-D-CV-550 |
| HF-MP053 | HF-MP13 | HF-MP13 | HF-MP23 | HF-MP43 |
| HF-MP73 | HF-KP053 | HF-KP13 | HF-KP23 | HF-KP43 |
| HF-KP73 | HF-MP053B | HF-MP13B | HF-MP23B | HF-MP43B |
| HF-MP73B | HF-KP053B | HF-KP13B | HF-KP23B | HF-KP43B |
| HF-KP73B | HF-SP52 | HF-SP102 | HF-SP152 | HF-SP202 |
| HF-SP352 | HF-SP502 | HF-SP702 | HF-SP52B | HF-SP102B |
| HF-SP152B | HF-SP202B | HF-SP352B | HF-SP502B | HF-SP702B |
| HF-SP51 | HF-SP81 | HF-SP121 | HF-SP201 | HF-SP51B |
| HF-SP81B | HF-SP121B | HF-SP201B | HG-SR352BK | HG-SR352BJ |
Similer item we can supply:
| MR-J2S-10B-S149 | MR-J2S-20B-S149 | MR-J2S-40B-EE085 |
| MR-J2S-40B-EE006 | MR-J2S-40B-S009U528 | MR-J2S-40CP-S186 |
| MR-J2S-40CP-S084 | MR-J2S-40A-PY091 | MR-J2S-40B-PY096 |
| MR-J2S-40B-PY135 | MR-J2S-40B-S210 | MR-J2S-40A-PF |
| NR-J2S-60A-PF | MR-J2S-40A-PQ108T022 | MR-J2S-40B-PY096T018 |
| MR-J2S-60B-S041U638 | MR-J2S-60B-S134 | MR-J2S-40B-PY135 |
| MR-J2S-60B-FH168 | MR-J2S-40B1-EH018 | MR-J2S-40B1-QA112 |
| MR-J2S-40CP1 | MR-J2S-60B-S030 | MR-J2S-40B-QT0009U625 |
| MR-J2S-40CP-EG | MR-J2S-10CP1 | MR-J2S-40A-S004 |
| MR-J2S-20CP1 | MR-J2S-10A1-S017 | MR-J2S-70A-S011 |
| MR-J2S-20A-S011 | MR-J2S-40A-S011 | MR-J2S-100A-S011 |
| MR-J2S-40A-EG055 | MR-J2S-40A-EG011 | MR-J2S-20CP-S011 |
| MR-J2S-70CP-S011 | MR-J2S-200B-S126 | MR-J2S-70CP-S259 |
| MR-J2S-70B-T004 | MR-J2S-350CP-S186 | MDS-B-SVJ2-07 |
| MR-J2S-70B-RT | MR-J2S-350CP-S084 | MDS-D-SVJ3-01NA |
| MR-J2S-100B-T004 | MR-J2S-350B-EG | MDS-D-SVJ3-02NA |
| MR-J2S-100B-RT | MR-J2S-350B-EG117 | MDS-D-SVJ3-07NA |
| MR-J2S-70A-PM070 | MDS-B-SVJ2-01 | MDS-D-SVJ3-10NA |
| MR-J2S-200A-EJ012 | MDS-B-SVJ2-03 | MDS-D-SVJ3-20NA |
| MR-J2S-200B-T004 | MDS-B-SVJ2-04 | MR-J2S-100CP-S084 |
| MR-J2S-200A-S007 | MDS-B-SVJ2-06 | MR-J2S-100CP-S186 |
| MR-J2S-200B-S009V613 | MDS-B-SVJ2-10 | MR-J2S-70B-PY135U504 |
| MR-J2S-200B-RS238 | MDS-B-SVJ2-20 | MR-J2S-40B-PY135U504 |
