| Place of Origin: | Japan |
| Brand Name: | Mitsubishi |
| Certification: | CE |
| Model Number: | HC-SFS102 |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiated |
| Packaging Details: | New Original |
| Delivery Time: | 3-5days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 1000 |
| Brand: | Mitsubishi | Product Type: | Industrial Servo Drives |
|---|---|---|---|
| Part Number: | HC-SFS102 | Place Of Origin: | Japan |
| Frequency: | 200-230 VAC | Power: | 200W |
| Highlight: | Medium Capacity Servo Motor,Mitsubishi HC-SFS102 Servo Motor,Medium Inertia Servo Motor |
||

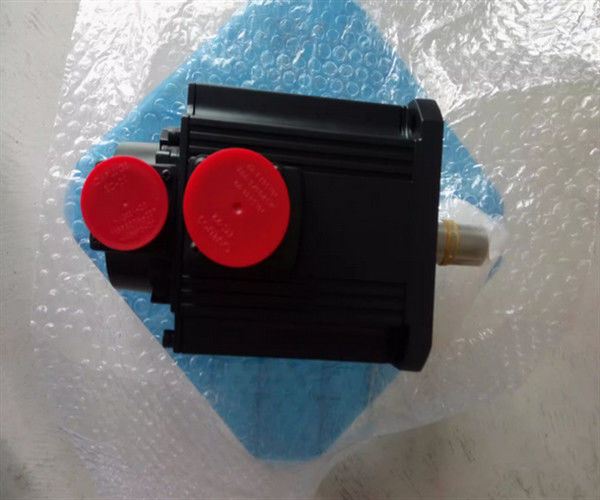

Mitsubishi HC-SFS102 Servo Motor Medium Inertia,Medium Capacity
The Mitsubishi HC-SFS102 servo motor is a MELSERVO general-purpose servo motor that is 200V-compatible. It is a middle-inertia and middle-capacity servo motor that is suitable for a wide range of industrial applications. The HC-SFS102 servo motor’s output power rating is 1 kW. It can operate at a rated speed of 2000 rpm, and it is capable of reaching a maximum speed of 3000 rpm in certain types of demanding applications. The HC-SFS102 servo motor's instantaneous permissible speed rating is 3450 rpm, ensuring controlled operation even during sudden changes. The HC-SFS102 servo motor operates with a rated torque value of 4.78 Nm, and its maximum torque rating is 14.4 Nm, allowing it to handle varying load conditions. To maintain consistent performance, the HC-SFS102 motor’s power rating at the continuous rated torque is 16.7 kW/s. It is compatible with a servo amplifier that is equipped with a built-in regenerative resistor that is rated at 54 times per minute. The HC-SFS102 servo motor operates with a rated current value of 6A and a maximum current rating of 18A. For precise speed and position control, the HC-SFS102 servo motor employs an encoder that is common to both absolute position and incremental detection systems. The encoder’s resolution rating is 131072 pulses per revolution to ensure accurate control. The motor includes an oil seal for added protection. The HC-SFS102 servo motor is designed with class F insulation that ensures reliable operation even in challenging environments. Its structure is totally enclosed and self-cooled, and the structure has an IP65 ingress protection rating. The HC-SFS102 servo motor weighs 7 kg (15.4 lbs).
The Mitsubishi HC-SFS102 motor is a MELSERVO series servo motor. It is 200V-compatible, and it is a middle-inertia and middle-capacity servo motor. Its rated output power is 1kW, and its rated speed is 2000 rpm. The HC-SFS102 servo motor’s maximum speed is 3000 rpm, and its instantaneous permissible speed of 3450 rpm. The HC-SFS102 servo motor's rated current is 6A, and its maximum current rating is 18A.
| Model Type: | Servo motor |
|---|---|
| Series: | MELSERVO |
| Rated Output Power: | 1kW |
| Rated Speed: | 2000 rpm |
| Maximum Speed: | 3000 rpm |
| Instantaneous Permissible Speed: | 3450 rpm |
| Rated Torque: | 4.78 Nm |
| Maximum Torque: | 14.4 Nm |
| Power rate at Continuous Rated Torque: | 16.7 kW/s |
| Servo Amplifier's Built-in Regenerative Resistor Rating: | 54 times/minute |
| Rated Current: | 6A |
| Maximum Current: | 18A |
| Structure: | Totally-enclosed, self-cooled (protection type: IP65) |
| Weight: | 7 kg or 15.4 lbs |
| Primary brand | Mitsubishi Electric |
| Main function | AC servo motor |
| Product series / family name | MELSERVO J2S series |
| Sub-range name | HC-SF series |
| Functions | AC brushless rotary servo motor |
| Design | straight shaftbuilt-in absolute feedback encod. (17-bit)oil sealmedium inertia / medium power capacity |
| Supply voltage (AC) | 200Vac class |
| Rated current | 6A |
| Rated active power (kW) | 1000W / 1kW |
| Rotational speed | 2000rpm3000rpm (maximum) |
| Torque | 4.78Nm nominal |
| Maximum torque | 14.4Nm |
| Moment of inertia | 0.00137kg.m2 (13.7kg.cm2) |
| Net Height (mm) | 176 mm |
| Net Width (mm) | 130 mm |
| Net Depth (mm) | 200 mm |
| Mounting mode | 130x130mm flange mounting |
| Resolution | 17-bit (equivalent to 131072ppr) feedback |
| Degree of protection | IP65 |
| Dimensions | H176mm x W130mm x D200mm |
| Ambient air temperature for operation | 0…+40 °C |
| Ambient air temperature for storage | -15°C…+70 °C |
| Maximum current | 18 A |
| Order code / Manufacturer SKU | HC-SFS102 |
Mitsubishi Servo Motor- HC-SFS102
Features:
Medium inertia from low speed to high speed three modes for selection, suitable for different applications.
High resolution encoder 131072p/rev (17 bit).
The encoder with high resolution ensures excellent performance and stability at low speed.
Application examples:
Transmission machinery, robots, X-Y working platform.
All motor dimensions are the same as before and all are compatible with the wiring.
Motor series: medium inertia, medium power.
Rated output power: 1.0kw.
Rated speed: 2000r/min
Whether to take the brake: No.
Shaft end: Standard (straight).
Protection level: IP65 (IP67)..
Models of Mitsubishi drive
| Servo amplifier | Servo motor with functional safety |
|---|---|
| MR-J4-10GF-RJ MR-J4-10B-RJ MR-J4-10A-RJ |
HG-KR053(B)W0C, 13(B)W0C |
| MR-J4-20GF-RJ MR-J4-20B-RJ MR-J4-20A-RJ |
HG-KR23(B)W0C |
| MR-J4-40GF-RJ MR-J4-40B-RJ MR-J4-40A-RJ |
HG-KR43(B)W0C |
| MR-J4-60GF-RJ MR-J4-60B-RJ MR-J4-60A-RJ |
HG-SR51(B)W0C, 52(B)W0C HG-JR53(B)W0C. |
| MR-J4-70GF-RJ MR-J4-70B-RJ MR-J4-70A-RJ |
HG-KR73(B)W0C HG-JR73(B)W0C |
| MR-J4-100GF-RJ MR-J4-100B-RJ MR-J4-100A-RJ |
HG-SR81(B)W0C, 102(B)W0C HG-JR53(B)W0C (Note 1, 3), 103(B)W0C |
| MR-J4-200GF-RJ MR-J4-200B-RJ MR-J4-200A-RJ |
HG-SR121(B)W0C, 201(B)W0C, 152(B)W0C, 202(B)W0C HG-JR73(B)W0C (Note 1, 3), 103(B)W0C (Note 1, 3), 153(B)W0C, 203(B)W0C |
| MR-J4-350GF-RJ MR-J4-350B-RJ MR-J4-350A-RJ |
HG-SR301(B)W0C, 352(B)W0C HG-JR153(B)W0C (Note 1), 203(B)W0C (Note 1), 353(B)W0C |
| MR-J4-500GF-RJ MR-J4-500B-RJ MR-J4-500A-RJ |
HG-SR421(B)W0C, 502(B)W0C HG-JR353(B)W0C (Note 1), 503(B)W0C |
| MR-J4-700GF-RJ MR-J4-700B-RJ MR-J4-700A-RJ |
HG-SR702(B)W0C HG-JR503(B)W0C (Note 1), 703(B)W0C, 701M(B)W0C |
| MR-J4-11KGF-RJ MR-J4-11KB-RJ MR-J4-11KA-RJ |
HG-JR903(B)W0C, 11K1M(B)W0C |
| MR-J4-15KGF-RJ MR-J4-15KB-RJ MR-J4-15KA-RJ |
HG-JR15K1M(B)W0C |
| MR-J4-22KGF-RJ MR-J4-22KB-RJ MR-J4-22KA-RJ |
HG-JR22K1MW0C |
MDS series Servo Drive
| MDS-D-V1-20 | MDS-D-V1-40 | MDS-D-V1-80 | MDS-D-V1-160 | MDS-D-V1-160W |
| MDS-D-V1-320W | MDS-D-V2-2020 | MDS-D-V2-4020 | MDS-D-V2-4040 | MDS-D-V2-8040 |
| MDS-D-V1-320 | MDS-D-V2-8080 | MDSD-V2-16080 | MDS-D-V2-160160 | MDS-D-V2-160160W |
| MDS-DM-V3-202020 | MDS-DM-V3-404040 | MDS-D-SP-20 | MDS-D-SP-40 | MDS-D-SP-80 |
| MDS-D-SP-160 | MDS-D-SP-200 | MDS-D-SP-240 | MDS-D-SP-320 | MDS-D-SP-400 |
| MDS-D-SP-640 | MDS-D-SP2-2020 | MDS-D-SP2-4020 | MDS-D-SP2-4040S | MDS-D-SP2-8040 |
| MDS-D-SP2-8080 | MDS-D-SP2-16080S | MDS-D-CV-37 | MDS-D-CV-75 | MDS-D-CV-110 |
| MDS-D-CV-185 | MDS-D-CV-300 | MDS-D-CV-370 | MDS-D-CV-450 | MDS-D-CV-550 |
| HF-MP053 | HF-MP13 | HF-MP13 | HF-MP23 | HF-MP43 |
| HF-MP73 | HF-KP053 | HF-KP13 | HF-KP23 | HF-KP43 |
| HF-KP73 | HF-MP053B | HF-MP13B | HF-MP23B | HF-MP43B |
| HF-MP73B | HF-KP053B | HF-KP13B | HF-KP23B | HF-KP43B |
| HF-KP73B | HF-SP52 | HF-SP102 | HF-SP152 | HF-SP202 |
| HF-SP352 | HF-SP502 | HF-SP702 | HF-SP52B | HF-SP102B |
| HF-SP152B | HF-SP202B | HF-SP352B | HF-SP502B | HF-SP702B |
| HF-SP51 | HF-SP81 | HF-SP121 | HF-SP201 | HF-SP51B |
| HF-SP81B | HF-SP121B | HF-SP201B | HG-SR352BK | HG-SR352BJ |
Similer item we can supply:
| MR-J2S-10B-S149 | MR-J2S-20B-S149 | MR-J2S-40B-EE085 |
| MR-J2S-40B-EE006 | MR-J2S-40B-S009U528 | MR-J2S-40CP-S186 |
| MR-J2S-40CP-S084 | MR-J2S-40A-PY091 | MR-J2S-40B-PY096 |
| MR-J2S-40B-PY135 | MR-J2S-40B-S210 | MR-J2S-40A-PF |
| NR-J2S-60A-PF | MR-J2S-40A-PQ108T022 | MR-J2S-40B-PY096T018 |
| MR-J2S-60B-S041U638 | MR-J2S-60B-S134 | MR-J2S-40B-PY135 |
| MR-J2S-60B-FH168 | MR-J2S-40B1-EH018 | MR-J2S-40B1-QA112 |
| MR-J2S-40CP1 | MR-J2S-60B-S030 | MR-J2S-40B-QT0009U625 |
| MR-J2S-40CP-EG | MR-J2S-10CP1 | MR-J2S-40A-S004 |
| MR-J2S-20CP1 | MR-J2S-10A1-S017 | MR-J2S-70A-S011 |
| MR-J2S-20A-S011 | MR-J2S-40A-S011 | MR-J2S-100A-S011 |
| MR-J2S-40A-EG055 | MR-J2S-40A-EG011 | MR-J2S-20CP-S011 |
| MR-J2S-70CP-S011 | MR-J2S-200B-S126 | MR-J2S-70CP-S259 |
| MR-J2S-70B-T004 | MR-J2S-350CP-S186 | MDS-B-SVJ2-07 |
| MR-J2S-70B-RT | MR-J2S-350CP-S084 | MDS-D-SVJ3-01NA |
| MR-J2S-100B-T004 | MR-J2S-350B-EG | MDS-D-SVJ3-02NA |
| MR-J2S-100B-RT | MR-J2S-350B-EG117 | MDS-D-SVJ3-07NA |
| MR-J2S-70A-PM070 | MDS-B-SVJ2-01 | MDS-D-SVJ3-10NA |
| MR-J2S-200A-EJ012 | MDS-B-SVJ2-03 | MDS-D-SVJ3-20NA |
| MR-J2S-200B-T004 | MDS-B-SVJ2-04 | MR-J2S-100CP-S084 |
| MR-J2S-200A-S007 | MDS-B-SVJ2-06 | MR-J2S-100CP-S186 |
| MR-J2S-200B-S009V613 | MDS-B-SVJ2-10 | MR-J2S-70B-PY135U504 |
| MR-J2S-200B-RS238 | MDS-B-SVJ2-20 | MR-J2S-40B-PY135U504 |
Warranty
We offer 1 year warranty for this product. If the product is out of working order under proper usage per
instructions manual within the warranty period, please contact us to obtain a merchandise return code and
shipping instruction. Then, send it back at your shipping costs.
After receiving your return item, it will take 7 days for evaluation and investigation. A brand new
replacement unit will be sent to you at our shipping costs if it meets our warranty requirements.
Payment
Credit card on line is available.We also accept payment by T/T and Western Union.
This item have stock,so can delivery to you within 3 business days after your payment cleared.If ther
is any import duties or taxes,it is the buyer's responsibility.
Good Service in WTL:
> We offer high quality, fast delivery, competitive price for Mitsubishi Servo Motor and Servo Drive.
> Please send your RFQ to get the latest price.
> Normally, we will ship the items in 1-2 weeks after receive the payment.
> We can ship to you by UPS/DHL//EMS/Fedex. Please contact us and we will use your preferred ways.
> We have a large stock and the prices are variable, so sometimes the prices we post are not accurate.
If needed, please contact us for specific prices.v
