| Brand: | Mitsubishi | Product Type: | Industrial Servo Drives |
|---|---|---|---|
| Part Number: | HC-UFS152 | Place Of Origin: | Japan |
| Frequency: | 200-230 VAC | Power: | 200W |

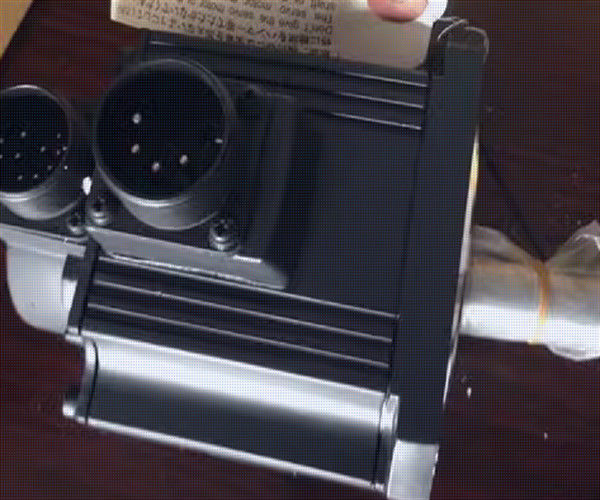

HC-UFS152 Mitsubishi Servo Motor AC Servo Amplifier
Description of HC-UFS152
| Primary brand | Mitsubishi Electric |
| Main function | AC servo motor |
| Product series / family name | MELSERVO J2S series |
| Sub-range name | HC-SF series |
| Functions | AC brushless rotary servo motor |
| Design | straight shaftbuilt-in absolute feedback encod. (17-bit)oil sealmedium inertia / medium power capacity |
| Supply voltage (AC) | 200Vac class |
| Rated current | 9A |
| Rated active power (kW) | 1500W / 1.5kW |
| Rotational speed | 2000rpm3000rpm (maximum) |
| Torque | 7.16Nm nominal |
| Maximum torque | 21.6Nm |
| Moment of inertia | 0.00200kg.m2 (20kg.cm2) |
| Net Height (mm) | 176 mm |
| Net Width (mm) | 130 mm |
| Net Depth (mm) | 225 mm |
| Mounting mode | 130x130mm flange mounting |
| Resolution | 17-bit (equivalent to 131072ppr) feedback |
| Degree of protection | IP65 |
| Dimensions | H176mm x W130mm x D225mm |
| Ambient air temperature for operation | 0…+40 °C |
| Ambient air temperature for storage | -15°C…+70 °C |
| Maximum current | 27 A |
| Order code / Manufacturer SKU | HC-SFS152 |
MITSUBISHI HC-UFS152 Product information and technical parameters:
Brand: MITSUBISHI
Name: Medium inertia power motor
Model:HC-UFS152
Motor series: medium inertia, medium power.
Rated output power: 0.5kw.
Rated speed: 3000r/min.
Whether to take the brake: No.
Shaft end: Standard (straight).
Protection level: IP65 (IP67).
Features: medium inertia from low speed to high speed three modes for selection, suitable for different applications.
Application examples: transmission machinery, robots, X-Y working platform.
High resolution encoder 131072p/rev (17 bit).
The encoder with high resolution ensures excellent performance and stability at low speed.
All motor dimensions are the same as before and all are compatible with the wiring.
Motor series: medium inertia, medium power.
Rated output power: 1.5kw.
Rated speed: 3000r/min.
Whether to bring the brakes: with.
Part Number: HC-UFS152 (HCUFS152)
Module Type: Servo Motor
RPM: 2000rpm
Output Wattage: 1.5KW
