| Place of Origin: | Japan |
| Brand Name: | Mitsubishi |
| Certification: | CE |
| Model Number: | FR-F840-05470-2-60 |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiated |
| Packaging Details: | New Original |
| Delivery Time: | 3-5days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 1000 |
| Brand: | Mitsubishi | Product Type: | Variable Frequency Inverter |
|---|---|---|---|
| Part Number: | FR-F840-05470-2-60 | Place Of Origin: | Japan |
| Inverter (ND) Rated Capacity (kW): | 250kW | Voltage Class: | 400v |

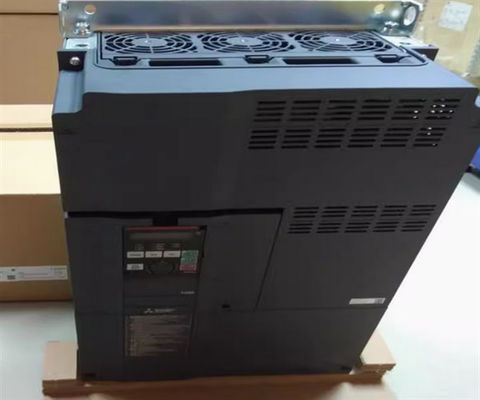

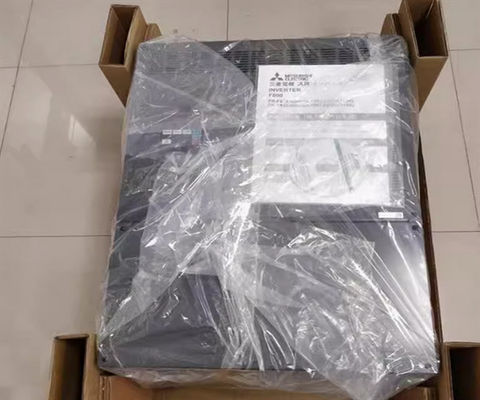

FR-F840-05470-2-60 Variable Frequency Inverter Mitsubishi Three phase 400V
Description of FR-F840-05470-2-60 Variable Frequency Inverter
MITSUBISHI FR-F840-05470-2-60 Product information and technical parameters:
Brand: MITSUBISHI
Name: Three phase 400V grade frequency converter
Model: FR-F840-05470-2-60
MITSUBISHI inverter series: FR-F840.
Voltage level: three phase 400V.
Power: 250kw.
SLD converter rated current: 547A.
FA-Inverter: Inverter FR-F840-05470-2-60
| Series | FR-F800 SERIES |
|---|---|
| Type | FR-F800-E INVERTER |
| Minimum Rated Voltage (V) | 380 |
| Min. Permissible Voltage (V) | 323 |
| Maximum Rated Voltage (V) | 500 |
| Max. Permissible Voltage (V) | 550 |
| Current Type | AC |
| Phases | 3 |
| Rated Output Current SLD (A) | 547 |
| Rated Output Current LD (A) | 481 |
| Rated Motor Capacity SLD (kW) | 280 |
| Rated Motor Capacity LD (kW) | 250 |
| Control Method | V/F CONTROL, MAGNETIC FLUX VECTOR CONTROL, PM SENSORLESS VECTOR CONTROL, SOFT-PWM/HIGH FREQUENCY PWM |
| Motor Type | INDUCTION MOTOR, PM MOTOR |
| Display | FR-DU08 |
|---|---|
| Display Type | 5 DIGITS LED (12 SEGMENT) |
| PLC Function | YES |
| Program Memory | 6K |
| Program Memory Unit | STEPS |
| Integrated Digital Inputs | 12 |
| Digital Outputs (Transistor) | 5 |
| Digital Outputs (Relay) | 2 |
| Integrated Analogue Inputs | 3 |
| Integrated Analogue Outputs | 2 |
| IO Type of Terminal Block | SPRING CLAMP |
| Expandable | YES |
| USB | 1+1 MINI |
| Ethernet Port | 1 |
| Built-In Network | iQSS, SLMP, MODBUS/TCP, MELSOFT/FA, CC-LINK IE FIELD NETWORK BASIC, BACnet/IP |
| Leakage Current (mA) | 35(DELTA) / 2(STAR) |
