| Place of Origin: | FI |
| Brand Name: | ABB |
| Certification: | Does not supply |
| Model Number: | AO810V2 3BSE038415R1 |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | in box |
| Delivery Time: | 3-5days |
| Payment Terms: | T/T, Western Union, PAYONEER |
| Supply Ability: | 10 |
| Brand: | ABB | Channel Type: | DI |
|---|---|---|---|
| Weight: | 0.3kg | Isolation: | Individually Galvanic Isolated Channels |
| Product Type: | I-O_Module | Product ID: | AO810V2 3BSE038415R1 |
| RoHS Status: | Following EU Directive 2011/65/EU | Part Number: | AO810V2 3BSE038415R1 |

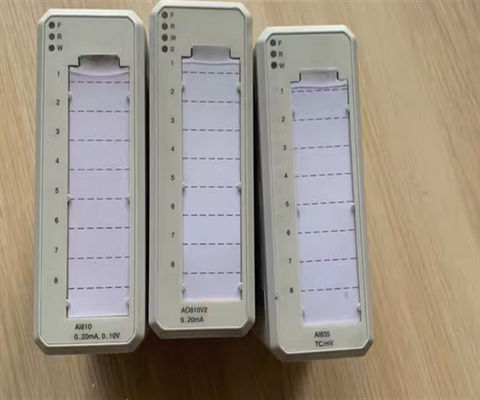

3BSE038415R1 ABB AO810V2 Analog Output Redundant Power Supply Module
Description
The AO810/AO810V2 Analog Output Module has 8 unipolar analog output channels. To supervise the communication to the D/A-converters the serial data is read back and verified. The opencircuit diagnostic is received during the readback. The module performs self-diagnostic cyclically. The module diagnostics includes process power supply supervision, which is reported when supply voltage to output circuitry is to low. The error is reported as a channel error. The channel diagnostic includes fault detection of the channel (only reported on active channels). The error is reported if the output current is less than the output set value and the output set value is greater than 1 mA.
General info
| Article number | 3BSE038415R1 |
| Type | Analog Output |
| Signal specification | 0..20 mA, 4..20 mA |
| Number of channels | 8 |
| HART | No |
| SOE | No |
| Redundancy | No |
| High integrity | No |
| Intrinsic safety | No |
| Mechanics | S800 |
Detailed data
| Resolution | 14 bit |
| Isolation | Groupwise isolated from ground |
| Under/over range | - / +15% |
| Output load | ≤ 500 Ω (supply connected to L1+ only) 250 - 850 Ω (with supply connected L2+ only) |
| Error | Max. 0.1% at 0 - 500 ohms (current) |
| Temperature drift | Typ. 30 ppm/°C, Max 60 ppm/°C |
| Rise Time | 0.35 ms (PL = 500 Ω) |
| Update cycle time | ≤ 2ms |
| Current limiting | Short circuit proof current limited output |
| Maximum field cable length | 600 meters (656 yards) |
| Rated insulation voltage | 50 V |
| Dielectric test voltage | 500 V a.c. |
| Power dissipation | 2.3 W |
| Current consumption +5 V Modulebus | Max 70 mA |
| Current consumption +24 V Modulebus | 0 |
| Current consumption +24 V external | 245 mA |
Diagnostics
| Front LED’s | F(ault), R(un), W(arning), O(SP) |
| Supervision | Module Error: Output power low. Channel Error: Open circuit (for current >1 mA) |
| Status indication of supervision | Module Error, Module Warning, Channel Error |
Compatibility
| Use with MTU | TU810, TU812, TU814, TU830, TU833 |
| Keying code | AE |
Dimensions
| Width | 45 mm (1.77”) |
| Depth | 102 mm (4.01”), 111 mm (4.37”) including connector |
| Height | 119 mm (4.7”) |
| Weight |
0.18 kg (0.4 lbs.) |
Q: What is the brand name of the product?
A: The brand name of the product is ABB.
Q: What is the model number of the product?
A: The model number of the product is AO810V2 3BSE038415R1.
Q: Where is the product manufactured?
A: The product is manufactured in FI.
Q: What are the available payment terms?
A: The available payment terms are T/T, Western Union, and PAYONEER.
Q: What is the delivery time for the product?
A: The delivery time for the product is 3-5 days.
