| Place of Origin: | FI |
| Brand Name: | ABB |
| Certification: | Does not supply |
| Model Number: | AI835 3BSE008520R1 |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | in box |
| Delivery Time: | 3-5days |
| Payment Terms: | T/T, Western Union, PAYONEER |
| Supply Ability: | 10 |
| Brand: | ABB | Channel Type: | DI |
|---|---|---|---|
| Weight: | 0.3kg | Isolation: | Individually Galvanic Isolated Channels |
| Product Type: | I-O_Module | Product ID: | AI835 3BSE008520R1 |
| RoHS Status: | Following EU Directive 2011/65/EU | Part Number: | AI835 3BSE008520R1 |

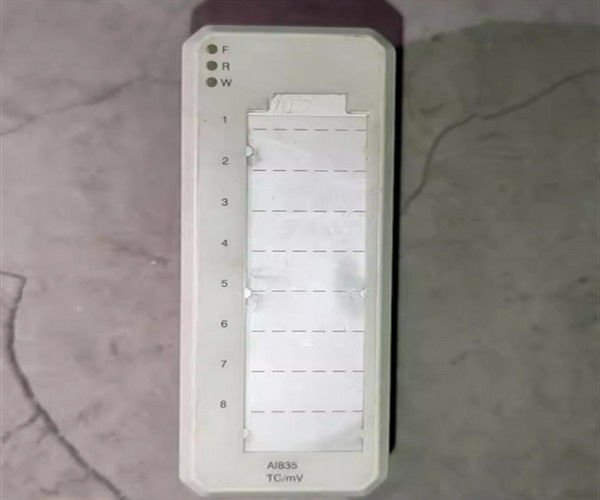

ABB AI835 3BSE008520R1 Analog Input Redundant Power Supply Module
Description
The AI835/AI835A provides 8 differential input channels for Thermocouple/mV measurements. Measurement ranges configurable per channel are: -30 mV to +75 mV linear, or TC Types B, C, E, J, K, N, R, S and T, for AI835A also D, L and U.
One of the channels (Channel 8) may be configured for “Cold Junction” (ambient) temperature measurements, thus serving as CJ-channel for Ch. 1...7. The junction temperature may be measured locally on the MTUs screw terminals, or on a connection unit distant form the device.
Alternatively, a fix junction temperature for the module may be set by the user (as parameter) or for AI835A also from
General info
| Article number | 3BSE051306R1 |
| Type | Analog Input |
| Signal specification | -30..75 mV linear; TC types B, C, D, E, J, K, L, N, R, S, T and U |
| Number of channels | 8 |
| Signal type | See table in S800 Modules and Termination Units, 3BSE020924 |
| HART | No |
| SOE | No |
| Redundancy | No |
| High integrity | No |
| Intrinsic safety | No |
| Mechanics | S800 |
Detailed data
| Resolution | 15 bits |
| Input impedance | > 1 MΩ |
| Isolation | Groupwise isolated from ground |
| Error | Max. 0.1% |
| Temperature drift | Typ. 5 ppm/°C, Max. 7 ppm/°C |
| Update cycle time | 280 + 80 * (number of active channels) ms at 50 Hz; 250 + 70 * (number of active channels) ms at 60 Hz |
| Maximum field cable length | 600 meters (656 yards) |
| CMRR, 50Hz, 60Hz | 120 dB |
| NMRR, 50Hz, 60Hz | > 60 dB |
| Rated insulation voltage | 50 V |
| Dielectric test voltage | 500 V a.c. |
| Power dissipation | 1.6 W |
| Current consumption +5 V Modulebus | 75 mA |
| Current consumption +24 V Modulebus | 50 mA |
| Current consumption +24 V external | 0 |
Diagnostics
| Front LED’s | F(ault), R(un), W(arning) |
| Supervision | Module error´: reference channels, power supply low Channel error: open-circuit CJ-channel (ch 8): < -40 °C (-40°F) and > 100 °C (212°F) |
| Status indication of supervision | Module Error, Module Warning, Channel error (8) |
Compatibility
| Use with MTU | TU810, TU812, TU814, TU818, TU830, TU833 |
| Keying code | BA |
Dimensions
| Width | 45 mm (1.77”) |
| Depth | 102 mm (4.01”), 111 mm (4.37”) including connector |
| Height | 119 mm (4.7”) |
| Weight | 0.22 kg (0.49 lbs.) |
Q: What is the brand name of the product?
A: The brand name of the product is ABB.
Q: What is the model number of the product?
A: The model number of the product is AI835 3BSE008520R1.
Q: Where is the product manufactured?
A: The product is manufactured in FI.
Q: What are the available payment terms?
A: The available payment terms are T/T, Western Union, and PAYONEER.
Q: What is the delivery time for the product?
A: The delivery time for the product is 3-5 days.
