A Feeder Protection Relay is a device designed to protect electrical feeders from faults and abnormal conditions in power distribution systems. Here are its primary features and functions:
1. Fault Detection and Isolation
Overcurrent Protection: Detects excessive current and disconnects the feeder to prevent damage.
Earth Fault Protection: Identifies ground faults and isolates the affected section to ensure safety.
2. Advanced Protection Features
Differential Protection: Monitors the difference between incoming and outgoing currents to detect internal faults.
Distance Protection: Measures impedance to identify faults based on distance from the relay.
3. Reclosing and Auto-Reset
Automatic Reclosing: Can automatically attempt to reclose the circuit after clearing a transient fault.
Adjustable Settings: Configurable time delays and reclose attempts to suit the system's needs.
4. Monitoring and Diagnostics
Status Indicators: Provides visual and/or digital indicators for operational status and fault conditions.
Event Logging: Records fault events, alarms, and operational data for analysis and troubleshooting.
5. Communication and Integration
SCADA Integration: Interfaces with SCADA systems for remote monitoring and control.
Communication Protocols: Supports protocols like IEC 61850, Modbus, or DNP3 for data exchange.
6. User Interface

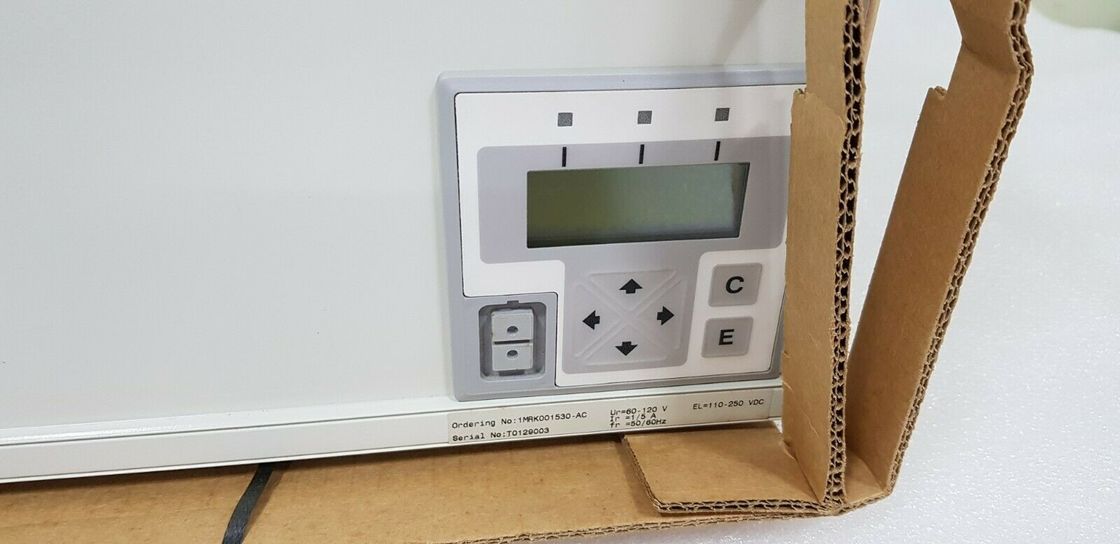

Display and Controls: Features an LCD screen and buttons for configuration and monitoring.
Configuration Software: Allows detailed configuration and analysis through dedicated software.
7. Protection Settings
Customizable Settings: Enables setting various protection parameters like time, current thresholds, and fault characteristics.
Coordination: Ensures proper coordination with upstream and downstream protection devices to avoid unnecessary outages.
8. Compliance and Standards
Industry Standards: Adheres to standards for safety, performance, and reliability in electrical protection.
Applications
Distribution Networks: Protects feeders in electrical distribution networks.
Industrial Systems: Safeguards feeders in industrial facilities and plants.
For specific installation and configuration details, refer to the manufacturer's manual or consult with a technical expert.
1. Fault Detection
Overcurrent Protection: Detects when current exceeds preset limits and triggers disconnection to prevent damage.
Earth Fault Detection: Identifies ground faults and disconnects the affected section to protect personnel and equipment.
Differential Protection: Monitors the difference between incoming and outgoing currents to detect internal faults within the feeder.
2. Protection Settings and Configurations
Adjustable Thresholds: Configurable settings for current, time delays, and fault characteristics to match system requirements.
Multiple Protection Functions: Combines different protection schemes (e.g., overcurrent, undercurrent, and thermal overload) in one device.
3. Reclosing and Auto-Reset
Automatic Reclosing: Capable of automatically reattempting to close the circuit after clearing a fault, with adjustable time delays.
Reclose Attempts: Configurable number of reclose attempts to manage transient faults effectively.
4. Advanced Monitoring and Diagnostics
Event Logging: Records detailed information about fault events, alarms, and system operations for analysis and troubleshooting.
Status Indicators: Visual (LEDs) and digital (display) indicators for real-time status and fault conditions.
5. Communication and Integration
SCADA Integration: Interfaces with SCADA systems for remote monitoring, control, and data acquisition.
Communication Protocols: Supports industry-standard protocols such as IEC 61850, Modbus, or DNP3 for data exchange and integration.
6. User Interface
LCD Display: Provides a clear visual interface for configuration, status monitoring, and fault diagnostics.
Control Buttons: Allows for manual control and setting adjustments directly on the relay.
Configuration Software: Offers a user-friendly software interface for detailed configuration and analysis.
7. Protection Coordination
Selective Coordination: Ensures proper coordination with upstream and downstream protection devices to isolate faults with minimal disruption.
Time-Current Characteristics: Customizable time-current curves for different protection functions to optimize coordination.
8. Testing and Calibration
Self-Diagnostics: Built-in diagnostics to monitor the health of the relay and ensure proper operation.
Testing Capabilities: Facilitates testing and calibration of protection settings to verify functionality and accuracy.
9. Reliability and Robustness
Durable Design: Engineered to withstand harsh environmental conditions and electrical stresses.
Redundancy Features: Some models offer redundancy or backup features to enhance reliability.
10. Compliance and Safety
Standards Compliance: Adheres to relevant industry standards and regulations for safety, performance, and reliability.
