| Place of Origin: | Sweden |
| Brand Name: | ABB |
| Certification: | CE |
| Model Number: | PDP22-FBP.100 |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | New in original box |
| Delivery Time: | 3-5 days |
| Payment Terms: | T/T |
| Supply Ability: | 1 |
| Brand: | ABB | Model: | PDP22-FBP.100 |
|---|---|---|---|
| Product ID: | 1SAJ240100R1010 | Customs Tariff Number: | 85176200 |

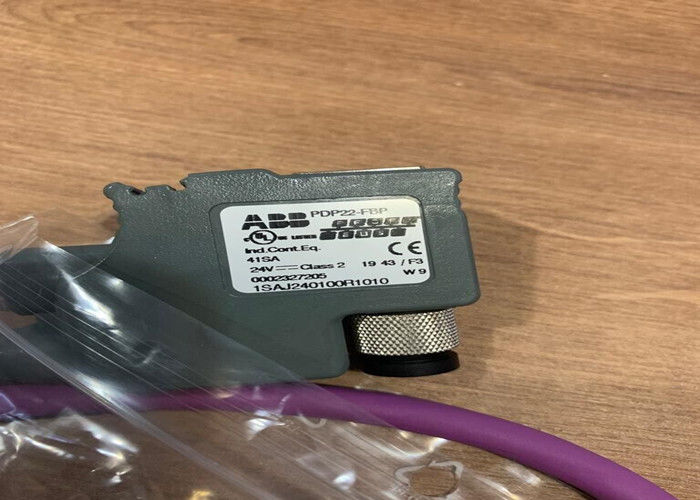

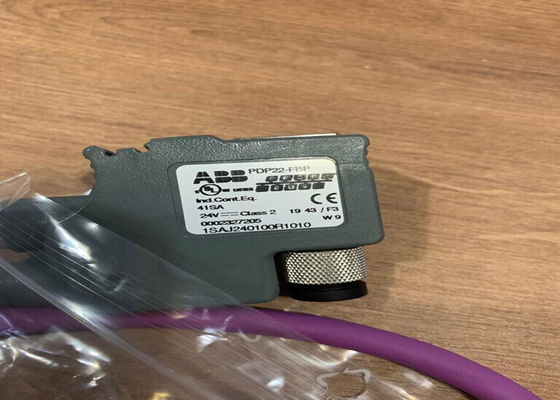

| Catalog Description: | PROFIBUS DP-V0/V1 FieldBusPlug 1 M | Long Description: | Ready-made Profibus DP/V1 Fieldbus Interface. Applicable With All FBP Motor Starters And Other Terminal Devices. Degree Of Protection IP65, Diagnostic LED |
General Information
Extended Product Type:
PDP22-FBP.100
Product ID:
1SAJ240100R1010
EAN:
4013614382963
Catalog Description:
PROFIBUS DP-V0/V1 FieldBusPlug 1 m
Long Description:
Ready-made Profibus DP/V1 fieldbus interface. Applicable with all FBP motor starters and other terminal devices. Degree of protection IP65, diagnostic LED
Ordering
Minimum Order Quantity:
1 piece
Customs Tariff Number:
85176200
Product Main Type:
PDP22-FBP
Popular Downloads
Data Sheet, Technical Information:
2CDC192001D0209
Instructions and Manuals:
2CDC192001D0209
Dimensions
Product Net Width:
48.5 mm
Product Net Depth / Length:
1066 mm
Product Net Height:
0.017 mm
Product Net Weight:
0.157 kg
Technical
Mounting Type:
Single Mounting
Mounting on DIN Rail:
No
Power Loss:
Approximately 0.9 W
Rated Control Supply Voltage (Us):
24 V DC
Standards:
CAN/CSA C22.2 No.142
IEC/EN 61131-2
UL 508
Environmental
Degree of Protection:
IP65
Material Compliance
RoHS Information:
1SVD981044
RoHS Status:
Following EU Directive 2011/65/EU
WEEE B2C / B2B:
Business To Business
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
Certificates and Declarations
Declaration of Conformity - CE:
1SVD981044
DNV Certificate:
E-12789
Container Information
Package Level 1 Units:
1 piece
Package Level 1 Width:
112 mm
Package Level 1 Depth / Length:
26 mm
Package Level 1 Height:
67 mm
Package Level 1 Gross Weight:
0.157 kg
Package Level 1 EAN:
4013614382963
Classifications
eClass:
V11.0 : 27242608
E-Number (Sweden):
4517254
ETIM 6:
EC001604 - Fieldbus, decentr. periphery - communication module
ETIM 7:
EC001604 - Fieldbus, decentr. periphery - communication module
ETIM 8:
EC001604 - Fieldbus, decentr. periphery - communication module
ETIM 9:
EC001604 - Fieldbus, decentr. periphery - communication module
Object Classification Code:
K
