MITSUBISHI MR-J2S-11KB Industrial Servo Amplifier 400V Input Power Module 11kW Capacity

MITSUBISHI MR-J2S-11KB Industrial Servo Amplifier 400V Input Power Module 11kW Capacity

Product Description:

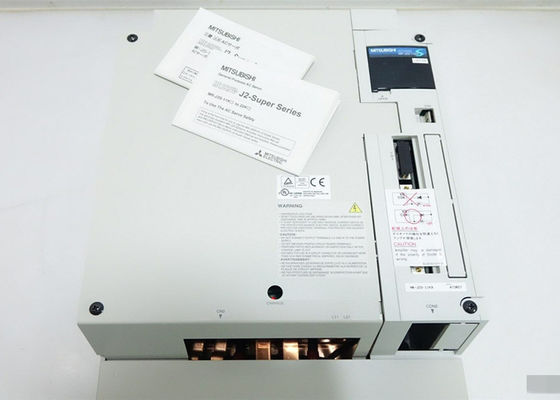

The MR-J2S-11KB is a Mitsubishi MITSUBISHI Servo Drive that is designed for general-purpose use with 400V AC. It is an AC servo amplifier that is part of the MELSERVO-J2-Super Series. This servo amplifier is compatible with the MITSUBISHI Servo Drive (400V AC) 100V/200V AC.

The MR-J2S-11KB has a rated output of 11kw and is SSCNET compatible. This means that it is capable of communicating with other devices that are integrated into the SSCNET network. Furthermore, this servo drive is equipped with a power supply that operates on 200VAC and is compatible with motors such as the HA-LFS801 and HA-LFS12K1.



Features:

The details of this product are as follows: The part number assigned to this item is MR-J2S-11KB, which is also referred to as MRJ2S11KB. This module is a servo amplifier and can communicate through the SSC NETWORK. It operates on a voltage/frequency of 200V AC and outputs an impressive 11KW of wattage. To provide a more detailed view of this product, we have outlined its specifications accordingly: - Module Type: Servo Amplifier - Communication: SSC NETWORK - Voltage/Frequency: 200V AC - Output Wattage: 11KW As highlighted above, this module operates on 200V AC and has an output wattage of 11KW. This module also belongs to the servo amplifier category and can communicate via the SSC NETWORK. Its part number is MRJ2S11KB, which is also known as MR-J2S-11KB.

Technical Parameters:

Voltage/frequency: 1-phase 200 to 230VAC 50/60Hz

Permissible voltage fluctuation: 1-phase 170 to 253VAC

Permissible frequency fluctuation: ±5% maximum

Power consumption (W): 50

Voltage/frequency (Note 1): 3-phase 200 to 230VAC 50/60Hz (Note 2)

Permissible voltage fluctuation: 3-phase 170 to 253VAC

Permissible frequency fluctuation: ±5% maximum

Sine-wave PWM control/current control system

Built-in (Note 3)

External option

Overcurrent shutdown, regeneration overvoltage shutdown, overload shutdown (electronic thermal), servo motor overheat protection, encoder fault protection, regeneration fault protection, undervoltage/sudden power outage protection, overspeed protection, excess error protection

Approximately 10Mpps

Self-cooling, open (IP00)

Fan cooling, open (IP00)

Ambient temperature: 0 to 55°C (32 to 131°F) (non freezing), storage: –20 to 65°C (–4 to 149°F) (non freezing)

Ambient humidity: 90% RH maximum (non condensing), storage: 90% RH maximum (non condensing)

Atmosphere: Indoors (no direct sunlight); no corrosive gas, inflammable gas, oil mist or dust

Elevation: 1000m (3280ft) or less above sea level

Vibration: 5.9m/s2 maximum

kg [lb]	1.7 (3.7)	2.0 (4.4)	2.0 (4.4)	4.9 (10.8)	7.2 (15.9)	15 (33)	16 (35.3)	20 (44.1)

Main circuit power supply: Voltage/frequency (Note 1) -

Permissible voltage fluctuation -

Permissible frequency fluctuation -

Control circuit power supply: Voltage/frequency -

Permissible voltage fluctuation -

Permissible frequency fluctuation -

Power consumption (W) -

Mass: kg [lb] -



Applications:

The Mitsubishi MELSERVO-J2-Super series general-purpose AC servo boasts of even higher performance and functions compared to the MELSERVO-J2 series. It can be connected to a servo system controller or a similar device via a serial bus (SSCNET) and reads position data directly to perform operation.

By using data from a command unit, the speed and rotation direction of the servo motor can be controlled and precision positioning can be executed. To protect the power transistor in the main circuit from overcurrent due to sudden acceleration/deceleration or overload, a torque limit is imposed on the servo amplifier by the clamp circuit. It is also possible to change the torque limit value to any value with an external analog input or the parameter.

The new series features an RS-232C serial communication function which allows for the use of a MR Configurator (servo configuration software)-installed personal computer to perform parameter setting, test operation, status display monitoring, gain adjustment, etc. Real-time auto tuning enables automatic adjustment of the servo gains according to the machine.

The MELSERVO-J2-Super series servo motor is equipped with an absolute position encoder with a resolution of 131072 pulses/rev, guaranteeing more accurate control than the MELSERVO-J2 series. Adding a battery to the servo amplifier creates an absolute position detection system, making home position return unnecessary at power-on or alarm occurrence by setting a home position once.
