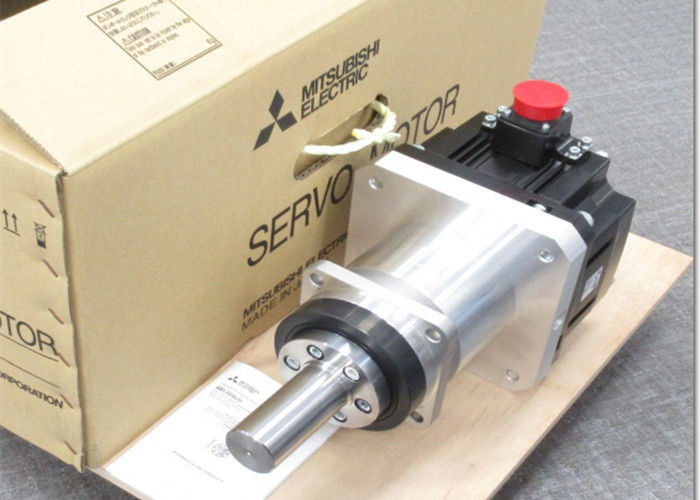

MITSUBISHI 2KW 2000r/min 3 Phase Indutrial AC SERVO MOTOR HG-SR202G7 1/45 With Gear

Servo motor HG-SR202G7
The Mitsubishi HG-SR202G7 servo motor is used in the leading MR-J4 series of servo systems, with very high accuracy. MR-J4 compact design. The frequency response is as high as 2.5kHz, with a very high encoder resolution and industry-leading servo performance. The machine performance is improved through the high performance of servo motors, enhanced one click adjustment function, and Mitsubishi SR202G7 anti operation control
Professional maintenance and supply of various Mitsubishi servos to meet customer requirements as quickly as possible
Hotline: 0901 879 122
Basic specifications of HG-SR202G7 servo motor
Model: HG-SR202G7
Power: 2 kW
Speed: 2000 V/P
Win: Yes
MR-J4 servo motor series: HG-KR, HG-MR, HG-SR, HG-JR, HG-AK, HG-RR, HG-UR, LM-H3, LM-F, LM-K2, LM-U2, TM-RG2M, TM-RU2M, TM-RFM
Encoder rotation encoder improved to 4194304 pulse/speed (22 bits)
Frequency response up to 2.5kHz, meeting the high-end requirements of machinery
Loss of motion compensation function
Impact and pressure control functions
Control mode: speed, position, or torque
You can switch between speed, position, and torque through a switch.
Real time automatic tuning
Light vibration suppression control motor MR-J4 Mitsubishi
General characteristics of Mitsubishi MR-J4 servo series
Power ranging from 0.1 kW to 55 kW
MR-J4 series servo series: MR-J4-A: MR-J4-B, MR-J4W2-B, MR-J4W3-B, MR-J4-B-RJ010
+MR-J3-T10
Optimized motor size, smaller size
MR-J4 engine series: HG-KR, HG-MR, HG-SR, HG-JR, HG-AK, HG-RR, HG-UR, LM-H3, LM-F, LM-K2, LM-U2, TM-RG2M, TM-RU2M, TM-RFM
The rotary encoder increases the resolution to 4194304 pulses/speed (22 bits)
Standard rotary encoder
The 0.2-7kw servo motor is equipped with a built-in discharge resistor, which saves space and makes the system more compact.
The error history records 16 recent errors
Test simulated operation mode before actual load operation
Power and voltage range:
MR-J4-A, MR-J4-B: three-phase 200VAC, from 0.1 to 37kW
Servo MR-J4-B4, MR-J4-A4: 3-phase 400VAC from 0.5 to 55kW

Related items

HG-SR202B
HG-SR202
HG-SR202K
HG-SR202BJ
HG-SR202BJK
HG-SR202JK
HG-SR202BK
HG-SR202BG1
HG-SR202BG1H


HG-SR Series AC servo motor

HG-SR52
HG-SR102
HG-SR152
HG-SR202
HG-SR352
HG-SR502
HG-SR702


Description


The MELSERVO MR-J4 series of servo amplifiers and the associated positioning units, simple motion modules and high-end motion control systems from Mitsubishi Electric enable machine builders and end customers to increase production safety and improve productivity.

The MR-J4 amplifier series has been developed for the automation requirements of tomorrow. Mitsubishi Electric has incorporated numerous innovative and user-friendly functions to minimise the time-consuming and elaborate matching of mechanical and electronic systems.

The absolute encoder which is fitted as standard has a resolution of 22 bits. This corresponds to more than 4 million pulses/revolution. The result is excellent true-running characteristics and a maximum positioning accuracy and processing speed which more than satisfy the performance requirements of modern high-end machines.


Highlights

* Single, dual and triple-axis amplifiers for improved economy, energy efficiency and cabinet space

* Operation of rotary motors, linear motors and direct drive motors with a single unit

* Safety at all times – STO (Safe Torque Off) and SS1 (Safe Stop 1) in accordance with EN 61800-5-2. SS2/SOS/SLS/SBC and SSM options available

Flexible motor selection

Another highlight of functionality and flexibility is the possibility of connecting different motors to the MR-J4 amplifier. The servo amplifier can be conveniently and easily used with rotary motors, linear motors and also direct drive motors.


User-friendly software

The MR Configurator2 programming tool allows convenient commissioning and diagnostics. Calibration, monitoring, diagnostics, reading and writing of parameters and test operation can be carried out easily on a standard PC. MR Configurator2 ensures a stable machine system, optimum control and short set-up times.
