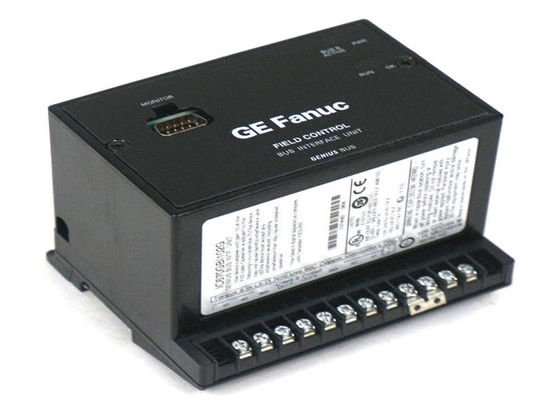

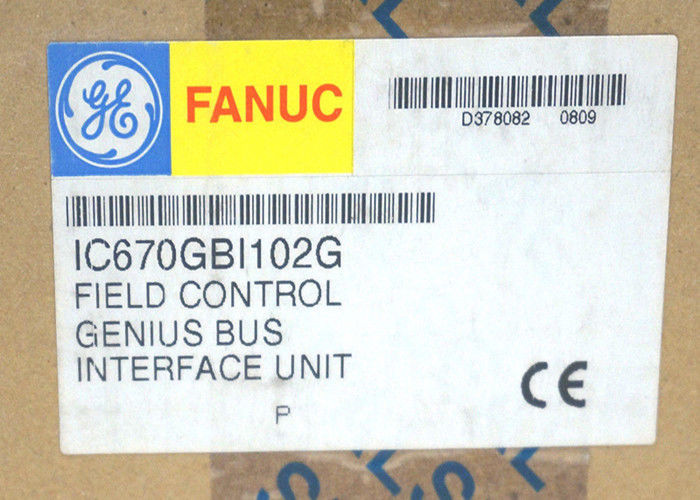

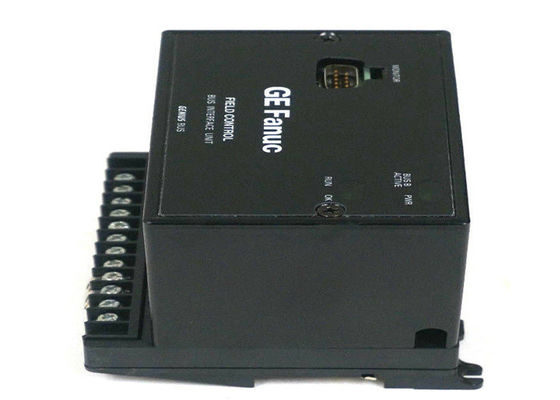

The IC670GBI102 is a Genius Bus Interface module that is manufactured by GE Fanuc

The IC670GBI001 isa communication module from the Field Control series of GE Fanuc. This module specifically supports Genius Bus protocol, allowing users to implement distributed I/O architecture. This module is coupled with a Genius Bus Interface Unit terminal block to enable mounting DIN rail or Panel mounting. This terminal block module also hosts the screw terminals where main genius bus connection and optional redundancy network connectivity can be established.

The IC670GBI001 supports daisy-chain topology architecture on both the primary and secondary bus. The supported data transmission speed of this module are 153.6 Kbaud standard, 153.6 Kbaud extended, 76.8 Kbaud, or 38.4 Kbaud with available memory allocations for a variety of data types such as 256 Bytes for discrete inputs (%I), status data and intelligent modules; 256 Bytes for discrete outputs (%Q) and fault clearing for intelligent modules; 256 bytes for analog inputs (%AI) and 256 bytes for analog outputs (%AQ). Both the primary and secondary bus connection points are provided with terminating resistor connection points that is used to terminate the bus connection and maintain a stable connection across the network. This termination point is specifically allocated across the serial 1 and serial 2 terminals, installed at the start (first node) and end of the bus (last node). Resistor values include 75 ohm, 100 ohm, 120 ohm or 150 ohm terminating resistor. Pre-molded bus cables may also be used with this Bus Interface module with catalog number IC660BLM508 which uses 75 ohm resistor and IC660BLM506 which uses 150 ohm resistor.

The IC670GBI102 bus interface unit is a Field Control bus interface unit manufactured by GE Fanuc. The unit is part of the GE Field Control series and it is compatible with the IC670GB and IC670GBI modules. This programmable control module operates within a temperature range of 0 to 55 degrees Celsius (32 to 131 degrees Fahrenheit) and it has a storage temperature range of -40 to 85 degrees Celsius (-40 to 185 degrees Fahrenheit). The relative humidity range of the IC670GBI102 bus interface module is 5 to 95% (non-condensing). The IC670GBI102 bus interface unit can withstand a solid vibration and shock levels that are typical for industrial environments and it is installed on panel-mounted DIN rail.

The IC670GBI102 bus interface unit can operate on both AC and DC power sources and the operating voltage range is 90 to 135 Volts AC and 105 to 150 Volts DC. The nominal rated voltage of the IC670GBI102 bus interface unit is 115 Volts AC and 125 Volts DC. The power consumption is a maximum of 48 Volt-Amps at 115 Volts AC and a maximum of 24 Watts at 125 Volts AC. The power consumption is specified for operation on a full load. The inrush current of the unit is 20 Amps at peak for a maximum of 3 milliseconds. The maximum holdup time of the unit is 20 milliseconds while the power supply output voltage is 6.5 Volts DC. The input frequency of the unit is 47 to 63 Hertz. The terminal block of the bus interface unit is 16 milliamps and its reliability rating is more than 600,000 hours.

 Technical Specifications
