| Place of Origin: | USA |
| Brand Name: | GE |
| Certification: | Does not supply |
| Model Number: | IC660BSM120 |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | New in original box |
| Delivery Time: | 5-8works |
| Payment Terms: | T/T |
| Supply Ability: | 100 |
| Part Name: | IC660BSM120 | SKU: | IC660BSM120 |
|---|---|---|---|
| Manufactuer: | GE Fanuc | Approximate Dimension: | 3.5 X 2.3 X 2.5 Inches |
| Series: | Genius I-O | Genius I-O: | 60 Milliamps At 115 Volts AC And 12 Milliamps At 120 Volts DC |
Product description

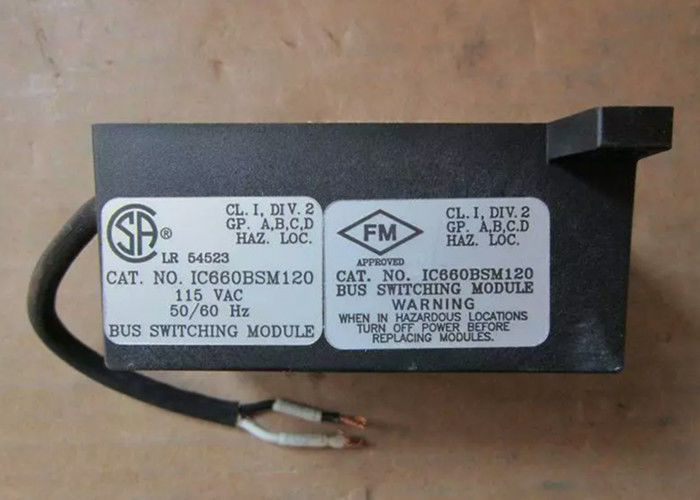

The GE Fanuc IC660BSM120 Genius I/O Bus Switching Module is a simple and reliable module that can be used to connects the Genius I/O blocks to 2 serial busses simultaneously. Unlike its counterpart the IC660BSM021 Switching Module, the IC660BSM120 Switching Module is AC/DC powered and it is suitable for AC supported I/O blocks. The IC660BSM120 Switching Module is designed to connect to up to 8 I/O blocks on the same dual serial bus and wiring additional IC660BSM120 Modules can increase the Genius I/O block connection to up to 30 blocks on the same dual bus. A properly configured dual bus configuration not only connects the I/O block to the serial bus, but it also stores the communication path in the event that the bus fails. The IC660BSM120 Switching Module’s operation is controlled by a Phase B discrete block in the cluster connection. During operation, the first circuit on this I/O block can be configured as a dedicated output for the bus switching module.
The GE Fanuc IC660BSM120 Switching Module is configured by using a Genius handheld monitor (HHM) or through the CPU programming, and it can also be used to switch between busses. When Bus B is selected, the IC660BSM120 Switching Module has operating voltage ranges of 90 to 130 Volts AC and 95 to 150 Volts DC. When Bus A is active, it has an operating voltage rating of less than 65 Volts AC/DC, and a maximum current draw of 60 milliamps at 115 Volts AC and a maximum draw of 12 milliamps at 120 Volts DC. The IC660BSM120 Switching Module has a reliability rating of up to 500,000 operations (minimum) and a maximum activation time of fewer than 20 milliseconds. The IC660BSM120 Switching Module has an operating temperature range of 0 to 60 degrees Celsius and approximate mounting dimensions of 3.5 x 2.3 x 2.5 inches.
Technical Specifications
| Brand | GE Fanuc |
| Series | Genius I-O |
| Part Number | IC660BSM120 |
| Description | Genius I/O Bus Switching Module |
| Application | Genius I/O Serial Bus |
| Operating Voltage | 90 to 130 Volts AC/95 to 150 Volts DC |
| Max Current Draw | 60 milliamps at 115 Volts AC and 12 milliamps at 120 Volts DC |
| I/O Capacity | 8 |
| Operating Temperature Range | 0 to 60 Degrees Celsius |
| Approximate Dimension | 3.5 x 2.3 x 2.5 Inches |
| Configuration | Handheld Monitor and CPU configuration |
| Serial Bus Connectors | 2 |
| Minimum Reliability Rating | 500,000 Operations |
