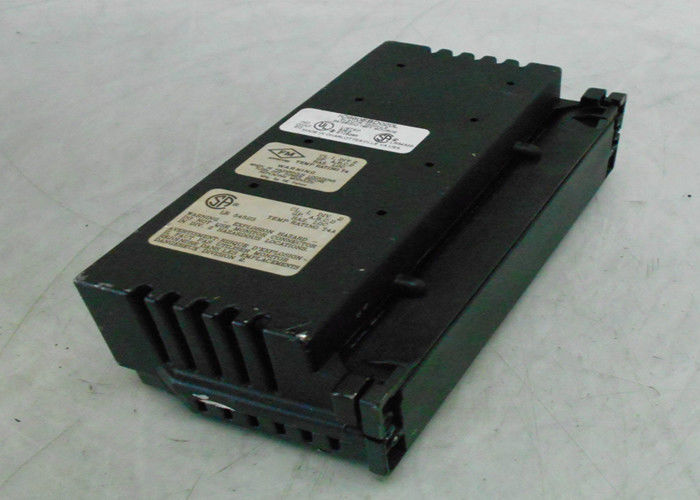

IC660EBD020，component of the Genius Block I/O module ，GE Fanuc Automation ，Emerson Automation

IC660EBD020 is a GE Fanuc-made advanced and programmable module. The IC660EBD020 connects to a wide range of discrete Direct Current sensors and actuators, The electronic block is a source/sink I/O block. It comes with a total of 16 circuits. The Genius I/O IC660EBD020 block comes in two versions. Both of them can smoothly supply current to field devices. The 24/48 volts Direct Current variant of the Direct Current 16-circuit block is designed for use with 3-wire solid-state electromechanical sensors.

The other variety is the 24 volt Direct Current variant, which is designed for use with both two-wire and three-wire electromechanical and solid-state sensors. Furthermore, each of these Direct Current 16-circuit sink blocks can accept current from the field output devices. Except for the voltage ratings, these two blocks are identical. The IC660EBD020 block weighs only about 1.8 kilograms. The dimension measurement for this module is 8.83 inches x 3.56 inches x 4.42 inches. It also incorporates individual LEDs on every circuit, as well as 1500 volts of block voltage isolation.

This block also has over-temperature, field switch, and open-wire input diagnostics, as well as a customizable input time of 5 to 100 milliseconds. The IC660EBD020 block and other Genius I/O blocks require a Direct Current power current rating of 150 milliamperes on average and 300 milliamperes at maximum. The current requirement for this module is 2 amperes. There are a total of 16 output ports on this module. 10 milliseconds is the power supply lag time on it. The heat dissipation rating for this configurable module is 68.8 watts.

The IC660EBD020 is the electronics assembly that is used with the IC660TSD020 terminal base to form the Genius I/O 16-channel, 24/48 VDC Discrete Input, and Output I/O block. These components were formerly manufactured by GE Fanuc Automation now under Emerson Automation. The IC660EBD020 contains the electronic circuitry that is used to process the field voltage signals forwarded to the module’s channels. This electronics assembly contains the RC snubber circuits, smart switch, and Light Emitting Diode (LED) for indication of channel state. It also provided connectivity to the backplane where power is drawn and data exchange to the partner controller is implemented. The IC660EBD020 provides Sixteen (16) discrete input channels that are designed to enter ON state at input voltage signal range of 16-24 VDC at processing speed of 1.7 ms plus the configured signal delay. Conversely, the output channels are capable of generating 2 Amperes per circuit with a maximum inrush current of 10 Amperes at 10 ms duration. The total output current that the I/O block generates is 15 Amperes at 35 Degree Celsius while the maximum switching frequency is once per second. Input diagnostics available include Open wire, Overtemperature, and Failed switch detection while output diagnostics include Short circuit, Overload, No Load, failed switch, and Overtemperature. The electronics assembly has an operating temperature requirement of 0 to 60 Degree Celsius, the Storage temperature of -40 Degree Celsius to 100 Degree Celsius with relative Humidity of 5-95%, non-condensing. The IC660EBD020 operating vibration is5-10 Hz, with an acceptable displacement of up to 2” or 5.088.

The IC660EBD020 is the electronics assembly for the IC660BBD022 circuit source I/O block. Both of these parts have been designed by GE Fanuc Automation and included in the Genius series of GE I/O blocks. This specific model includes 16 discrete inputs and outputs. This block can be used with 2 different kinds of sensors such as 3-wire solid-state sensors and electromechanical sensors. This block can provide and receive currents from these specific output devices. The GE Fanuc Automation IC660EBD020 electronics assembly includes all the circuitry and electronic components of the block. The circuits existent in the block can be configured as inputs, tristate inputs, or outputs, depending on the requirements of the applications at hand.

The GE Fanuc Automation IC660EBD020 electronics assembly comes with configurable features that help improve I/O block operations. For example, it provides an output pulse test capability and a selectable input filter time. Other features are a CPU redundancy and a hold last state feature for the outputs. The input processing time for this block is 5600 Ohms. The GE Fanuc Automation IC660EBD020 electronics assembly is compatible with a Genius bus controller, PCIM and QBIM modules, and with Genius handheld monitor. It operates with a voltage range of 18 to 56 Volts DC and has a maximum ripple of 10 percent. The block has a required DC power of 150 milliamps typical and 300 milliamps maximum. It can be used in an environment with a maximum temperature of 60 degrees Celsius. The block has a heat dissipation rating of 68.8 Watts and a block to block isolation of 1500 Volts.
