| Place of Origin: | JAPAN |
| Brand Name: | Yokogawa |
| Certification: | CE |
| Model Number: | EJA220A-DMZA12Z3B-97NN/K2/Z |
| Minimum Order Quantity: | 1 |
|---|---|
| Packaging Details: | new original box |
| Delivery Time: | 3-5days |
| Brand: | Yokogawa | PN: | EJA220A-DMZA12Z3B-97NN/K2/Z |
|---|---|---|---|
| Country Of Origina: | Japan | Output Signal: | 4-20mA |
| Output: | 24V DC | Style: | S1 |

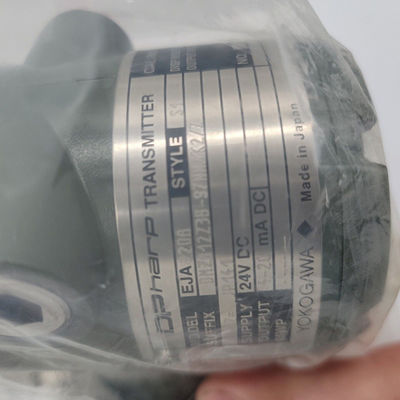

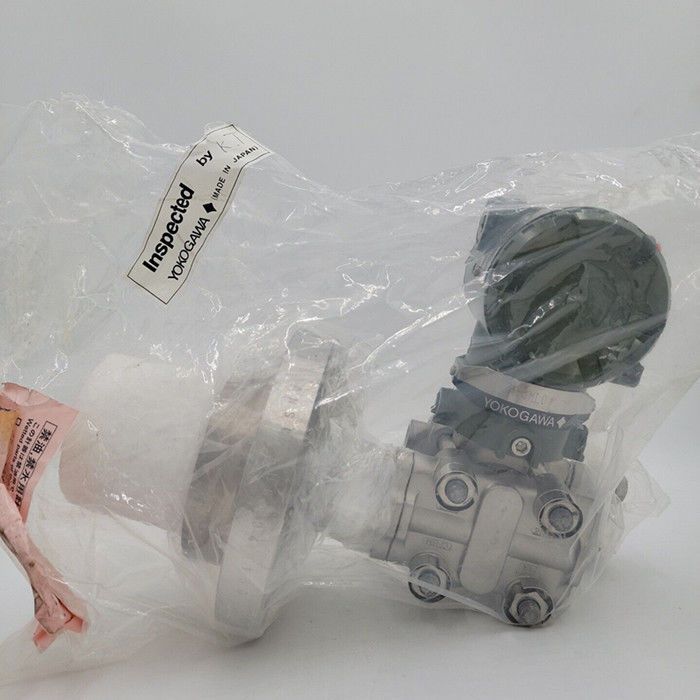

Yokogawa EJA220A-DMZA12Z3B-97NN/K2/Z High Temperature Pressure Transmitter
EJA220A Flange Mounted Differential Pressure Transmitter
| Model EJA220A | |||||||||
| Model | Suffix Codes | Description | |||||||
| EJA220A | ................. | Flange-mounted differential pressure transmitter (Extended diaphragm type) | |||||||
| Output Signal | -D................ | 4 to 20 mA DC with digital communication(BRAIN protocol) | |||||||
| -E............ | 4 to 20 mA DC with digital communication | ||||||||
| (HART protocol,refer to GS 01C22T01-00EN) | |||||||||
| -F............. | Digital communication (FOUNDATION Fieldbus protocol,refer to GS 01C22T02-00EN) | ||||||||
| -G.............. | Digital communication (PROFIBUS PA protocol,refer to GS 01C22T03-00EN) | ||||||||
| Measurement span (capsule) | M............. . ........ | 1 to 100 kPa {100 to 10000 mmH2O} {4 to 400 inH2O} {10 to 1000 mbar} | |||||||
| H........... | 5to 500 kPa{ 0.05 to 5 kgf/cm2} {20 to 2000 inH2O} {50 to 5000 mbar} | ||||||||
| High pressure side (Process flange side) wetted parts material*1*5 | [Diaphragm] [Pipe] [Other] | ||||||||
| S2. | SUS316L SUS316 SUS316*8 | ||||||||
| W*3# | Hastelloy C-276 SUS316 SUS316*8 | ||||||||
| Process flange rating | J1 | JIS10K | |||||||
| J2 | JIS20K | ||||||||
| A1 | AVSI Class 150 | ||||||||
| A2 | AVSI Class 300 | ||||||||
| D2 | DIN PN10/16 | ||||||||
| D4 | DIN PN25/40 | ||||||||
| P1 | JPI Class150 | ||||||||
| P2 | JPI Class 300 | ||||||||
| Process connection Type | Size | Extension | Flange | |
| EJA220A | Extended Type | 4-inch | 2-inch | JIS 10K, 20K |
| 3-inch | 4-inch | ANSI 150#, 300# | ||
| 6-inch | JPI Class 150, 300 | |||
| DIN PN10/16, 25/40 |
The EJA-A series is Yokogawa's most successful pressure transmitter line. First released in 1991, it continues to offer high performance and high reliability for any application. With an installed base of over 4-1/2 million EJA-A transmitters worldwide, it has a proven track record that makes it a true industry workhorse.
The EJA220A are Flange-mount Liquid Level Transmitters in the series.
KeyEJA220A feature include:
