| Place of Origin: | FI |
| Brand Name: | ABB |
| Certification: | Does not supply |
| Model Number: | TB825 3BSE036634R1 |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | in box |
| Delivery Time: | 3-5days |
| Payment Terms: | T/T, Western Union, PAYONEER |
| Supply Ability: | 10 |
| Brand: | ABB | Channel Type: | DI |
|---|---|---|---|
| Weight: | 0.3kg | Isolation: | Individually Galvanic Isolated Channels |
| Product Type: | I-O_Module | Product ID: | TB825 3BSE036634R1 |
| RoHS Status: | Following EU Directive 2011/65/EU | Part Number: | TB825 3BSE036634R1 |

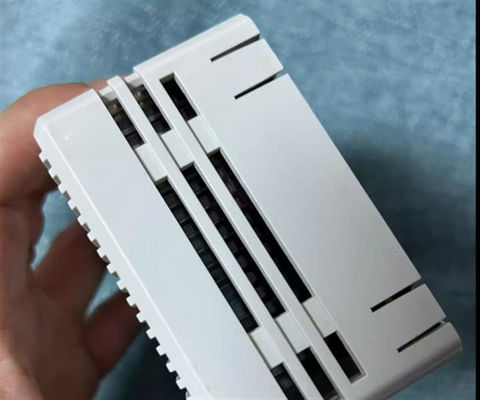

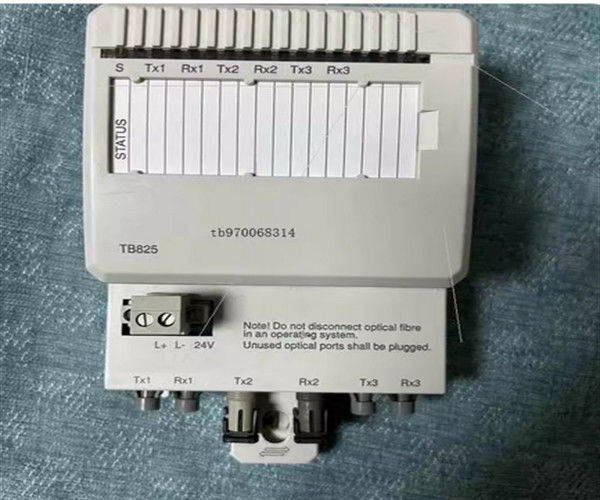

Abb - 3BSE036634R1 TB825 Optical Media Converter Multi Mode3BSE036634R1 TB825

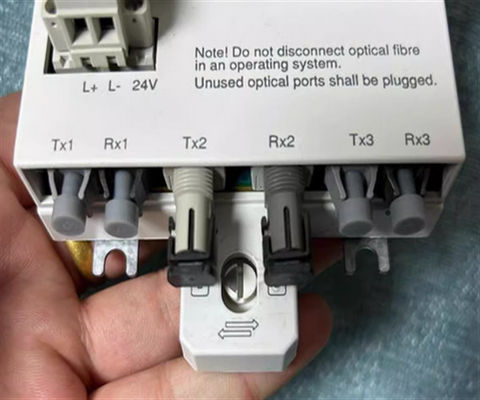

S800 I/O is a comprehensive. distributed and modular process I/O system that communicates with parent controllers and PLCs over industry-standard field buses. The TB825 ModuleBus Optical media converter, converts between plastic opto fiber or HCS fiber with versatile link connectors and glass optical fiber with ST connetcors.
The TB825 is built in S800L mechanics and DIN rails mounted. TB825 allows distribution of the optical ModuleBus up to 1000 m per cluster in star configurations.
General info
| Article number | 3BSE036634R1 |
| Communication protocol | Modulebus |
| Master or slave | Slave |
| Line redundancy | No |
| Module redundancy | No |
| Hot Swap | No |
| Used together with HI Controller | Yes |
Detailed data
| 24 V consumption typ. | 96 mA |
| CE- marking | Yes |
| Electrical Safety | EN 61010-1, UL 61010-1, EN 61010-2-201, UL 61010-2-201 |
| Hazardous location | C1 Div 2 cULus, C1 Zone 2 cULus, ATEX Zone 2 |
| Marine certificates | ABS, BV, DNV-GL, LR |
| Temperature, Operating | 0 to +55 °C (+32 to +131 °F), approvals are issued for +5 to +55 °C |
| Temperature, Storage | -40 to +70 °C (-40 to +158 °F) |
| Pollution degree | Degree 2, IEC 60664-1 |
| Corrosion protection | ISA-S71.04: G3 |
| Relative humidity | 5 to 95 %, non-condensing |
| Max ambient temperature | 55 °C (131 °F), for vertical mounting 40 °C (104 °F) |
| Protection class | IP20 according to EN60529, IEC 529 |
| RoHS compliance | DIRECTIVE/2011/65/EU (EN 50581:2012) |
| WEEE compliance | DIRECTIVE/2012/19/EU |
| Width | 85.6 mm (3.37 in.) |
| Height | 136 mm (5.35 in.) including latch |
| Depth | 58.5 mm (2.30 in.) |
| Weight | 0.21 kg (0.46 lbs) |
Q: What is the brand name of the product?
A: The brand name of the product is ABB.
Q: What is the model number of the product?
A: The model number of the product is TB825 3BSE036634R1.
Q: Where is the product manufactured?
A: The product is manufactured in FI.
Q: What are the available payment terms?
A: The available payment terms are T/T, Western Union, and PAYONEER.
Q: What is the delivery time for the product?
A: The delivery time for the product is 3-5 days.
