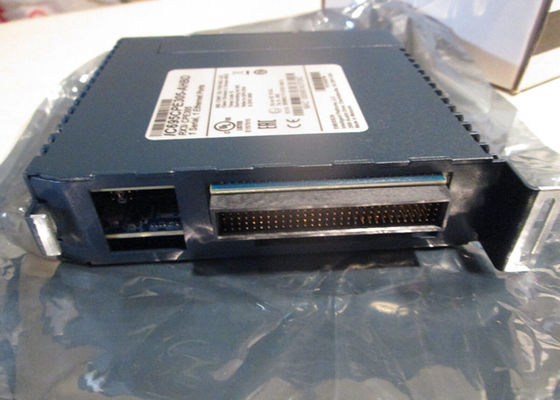

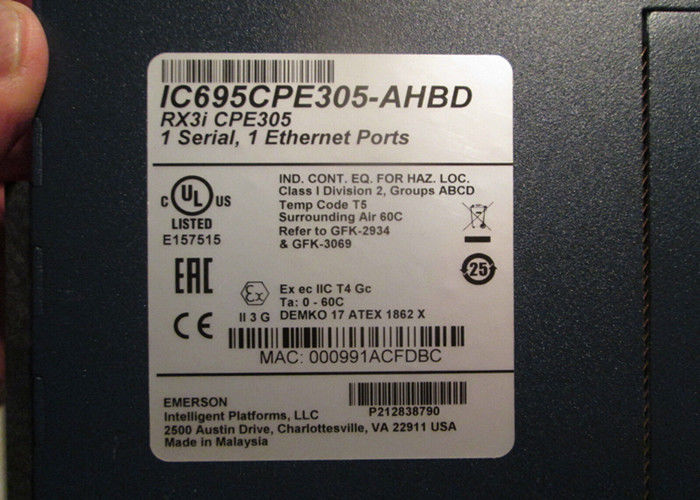

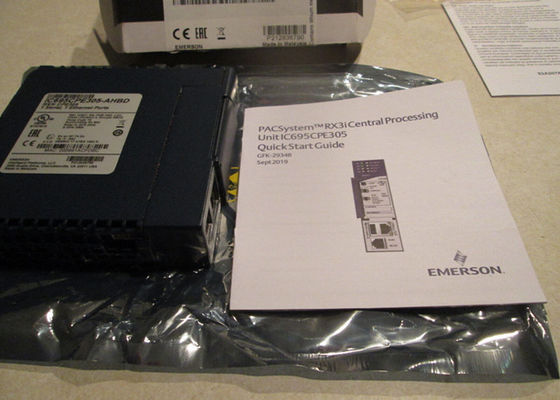

GE IC695CPE305 PACSystems PACSystems RX3i CPE330 Central Processing Unit

GE IC695CPE305 PACSystems™ PACSystems™ RX3i CPE330 Central Processing Unit


Product description

PACSystems™ RX3i controllers provide the foundation for Industrial Internet connectivity. It is a powerful, modular Programmable Automation Controller with a focus on high availability. The RX3i features a single control engine and a universal programming environment to provide application portability across multiple hardware platforms.

Features

The PACSystems™ RX3i CPE305 can be used to perform real time control of machines, processes, and material handling systems. The CPU communicates with the programmer via the internal Ethernet port or a serial port. It communicates with I/O and Intelligent Option modules over a dual PCI/Serial backplane.

▪ Supports an updated OPC stack and encrypting connections

▪ Supports PME’s new GUI management interface for OPC UA configuration integration (start, stop, restart, clear, and provisioning mode)

▪ Supports the new PAC Security tool available for certificate trust management of clients and servers

▪ Contains 5 Mbytes of user memory and 5 Mbytes of non-volatile flash user memory

▪ Supports Battery-less retention of user memory

▪ Configured with an Energy Pack IC695ACC400 to power the CPU long enough to write user memory to non-volatile storage (NVS) on system power loss

▪ Equipped with configurable data and program memory

▪ Supports programming in Ladder Diagram, Structured Text, Function Block Diagram, and C

▪ Supports auto-located Symbolic Variables that can use any amount of user memory

▪ Equipped with reference table sizes to include 32 Kbits for discrete %I and %Q and up to 32Kwords each for analog %AI and %AQ

The IC695ALG616 Module is an analog input module that is made in the RX3i PACSystems series by GE Fanuc Automation. This module is a specific type of module that is a non-isolated differential analog input current/voltage module that includes 16 single-ended or 8 differential input channels. Different power ranges can be configured with each of the input channels on this module, and these ranges are current and voltage ranges of 0 to 20 milliamps, 4 to 20 milliamps, and +/-20 milliamps of current and +/-10 Volts, 0 to 10 Volts, +/-5 Volts, 0 to 5 Volts, and 1 to 5 Volts DC of voltage. This module can be used with a box-style, an extended box-style, a spring-style, or an extended spring-style terminal block. The GE Fanuc Automation IC695ALG616 Analog Input Module is installed in the RX3i Universal Backplane.

Some of the features that come incorporated in the GE Fanuc Automation IC695ALG616 Analog Input Module are full auto-calibration, an on-board error checking feature, and an open-circuit detection feature for all the voltage inputs. The module also comes with a high alarm, a low alarm, a high-high alarm, and a low-low alarm along with a fault reporting feature that is selectable per channel. The GE Fanuc Automation IC695ALG616 Analog Input Module has positive and negative rate of change alarms and it goes through an auto-calibration at start-up. This module supports hot insertion and removal from the rack (insertion and removal under power.) This module operates with a voltage range of -10 to +10 Volts and an external power supply voltage range of 18 to 30 Volts DC.

Specifications

Part Number:IC695CPE330

Form Factor:Backplane

User Memory:64MB

I/O:32k Bits Discrete I/O, 32k Words for Analog I/O

Energy Pack:Available

Redundancy Support:Media Redundancy (MRP), PROFINET System Redundancy (PNSR)

Ethernet Port:3x 10/100/1000 (2 switched ports)

Ethernet Protocols:SRTP Client/Server, Modbus TCP/IP, OPC UA (Non-Transparent Server Redundancy Server), EGD, PROFINET, DNP3 Outstation, IEC-61850 Client, IEC-104 Server, HART passthrough

Serial Protocols:ASCII Serial, Modbus/RTU

Remote I/O Devices:32 Simplex, 20 Redundant, 255 Simplex with PNC001

USB Interface:1x USB-A 2.0

Memory Card:1x CFast

Environmental:0 to 60C

Agency Approvals:UKCA, UL, cUL, RoHS, CCC, FCC, Reach, UL HazLoc C1D2, ATEX Zone 2

Marine Certifications:ABS, BV, LR. DNV GL
