| Brand: | ABB | Channel Type: | DI |
|---|---|---|---|
| Weight: | 0.3kg | Isolation: | Individually Galvanic Isolated Channels |
| Product Type: | I-O_Module | Product ID: | TU830V1 3BSE013234R1 |
| RoHS Status: | Following EU Directive 2011/65/EU | Part Number: | TU830V1 3BSE013234R1 |
ABB S800 I/O TU814V1 3BSE013233R1 Compact Module Termination

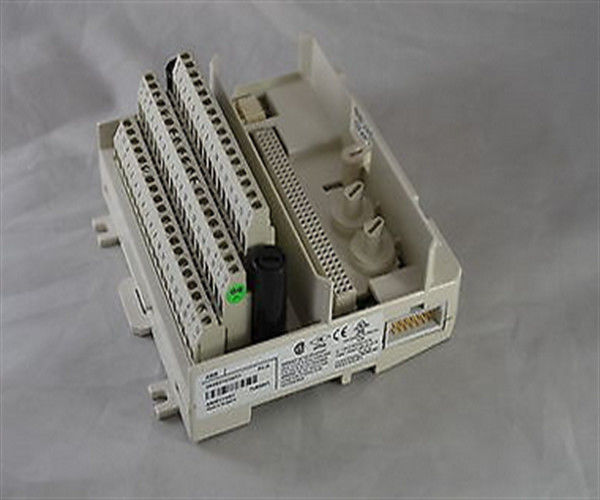

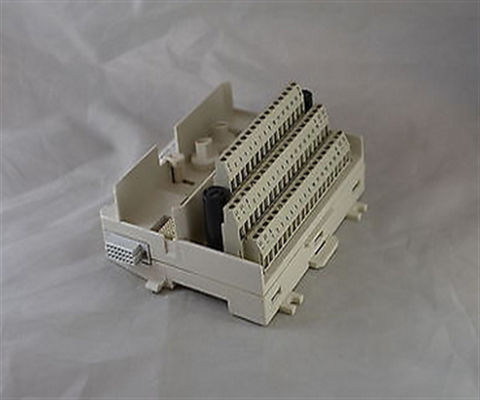

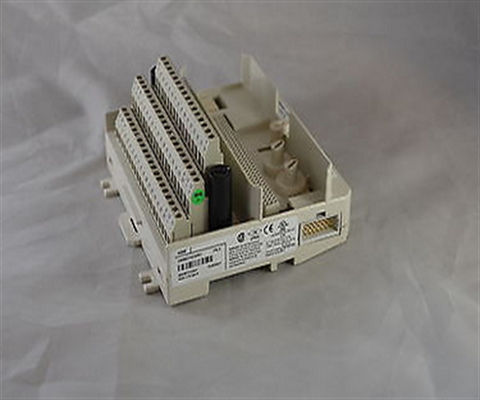

The TU830V1 MTU can have up to 16 I/O channels and two process voltage connections. Each channel has two I/O connections and one ZP connection. The MTU is a passive unit used for connection of the field wiring to the I/O modules. It also contains a part of the ModuleBus.
The process voltage can be connected to two individually isolated groups. Each group has a 6.3 A fuse. The maximum rated voltage is 50 V and maximum rated current is 2 A per channel. The MTU distributes the ModuleBus to the I/O module end to the next MTU. It also generates the correct address to the I/O module by shifting the outgoing position signals to the next MTU.
General info
| Article number | 3BSE013234R1 |
| Type | Extended |
| Connection | Terminal block |
| Channels | 16 |
| Voltage | 50 V |
| Mounting | Both directions |
| Mounting detail | 55 ºC (131 °F) |
| Use with I/O | AI810, AI815, AI820, AI830, AI830A, AI835, AI835A, AI843, AI845, AO810, AO810V2, AO815, AO820, AO845, AO845A, DI810, DI811, DI814, DI818, DI830, DI831, DI840, DI880, DI885, DO810, DO814, DO815, DO818, DO840, DO880, DP820 and DP840 |
| Process connections | 56 |
| Single/redundant I/O | Single |
Detailed data
| Maximum current per I/O channel | 2 A |
| Maximum current process connection | 5 A |
| Acceptable wire sizes | Solid: 0.2 - 4 mm² Stranded: 0.2 - 2.5 mm², 24 - 12 AWG Recommended torque: 0.5 - 0.6 Nm Stripping length: 7 mm |
| Dielectric test voltage | 500 V a.c. |
Environment and certification
| CE mark | Yes |
| Electrical safety | EN 61010-1, UL 61010-1, EN 61010-2-201, UL 61010-2-201 |
| Hazardous Location | C1 Div 2 cULus, C1 Zone 2 cULus, ATEX Zone 2 |
| Marine certification | ABS, BV, DNV-GL, LR |
| Temperature, Operating | 0 to +55 °C (+32 to +131 °F), approvals are issued for +5 to +55 °C |
| Temperature, Storage | -40 to +70 °C (-40 to +158 °F) |
| Pollution degree | Degree 2, IEC 60664-1 |
| Corrosion protection | ISA-S71.04: G3 |
| Relative humidity | 5 to 95 %, non-condensing |
| Max ambient temperature | 55 °C (131 °F) |
| Protection class | IP20 according to IEC 60529 |
| Mechanical operating conditions | IEC/EN 61131-2 |
| EMC | EN 61000-6-4, EN 61000-6-2 |
| Overvoltage categories | IEC/EN 60664-1, EN 50178 |
| Equipment class | Class I according to IEC 61140; (earth protected) |
| RoHS compliance | EN 50581:2012 |
| WEEE compliance | DIRECTIVE/2012/19/EU |
Dimensions
| Width | 126 mm (5 in.) including connector, 120.5 mm (4.74 in.) edge to edge installed |
| Depth | 64 mm (2.52 in.) including terminals |
| Height | 110 mm (4.3 in.) |
| Weight | 0.28 kg (0.6 lbs) |
