| Place of Origin: | FI |
| Brand Name: | ABB |
| Certification: | Does not supply |
| Model Number: | DP820 3BSE013228R1 |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negitiation |
| Packaging Details: | in box |
| Delivery Time: | 3-5days |
| Payment Terms: | T/T, Western Union, PAYONEER |
| Supply Ability: | 10 |
| Brand: | ABB | Channel Type: | DI |
|---|---|---|---|
| Weight: | 0.3kg | Isolation: | Individually Galvanic Isolated Channels |
| Product Type: | I-O_Module | Product ID: | DP820 3BSE013228R1 |
| RoHS Status: | Following EU Directive 2011/65/EU | Part Number: | DP820 3BSE013228R1 |

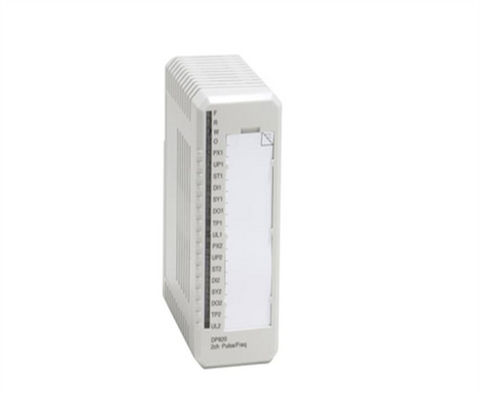

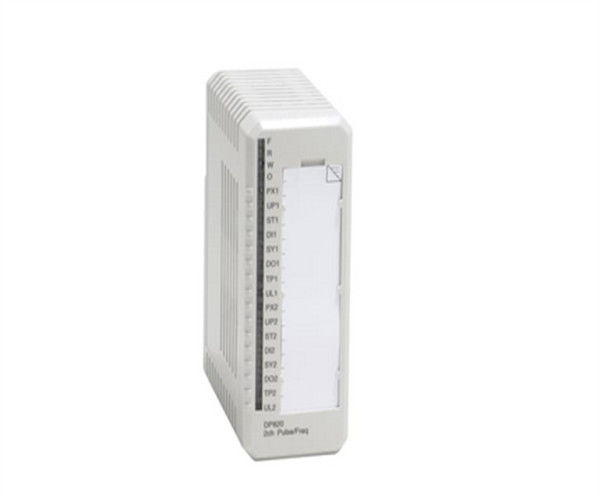

DP820 is an two-channel pulse counting module for incremental pulse transmitters up to 1.5 MHz. Each channel contains counters and registers for position/length and speed/frequency measurement. Each channel provides three balanced inputs for connection of a pulse transmitter, one digital input and one digital output. Pulse transmitters with RS422, +5 V, +12 V, +24 V and 13 mA interfaces can be connected to DP820.
Use DP820 with Module Termination Units TU810V1, TU812V1, TU814V1, TU830V1, TU833.
| Article number | 3BSE013228R1 |
| Type | Pulse counter |
| Signal specification | 24 V d.c. (12 - 32 V d.c.) |
| Number of channels | 2 |
| HART | No |
| SOE | No |
| Redundancy | No |
| High integrity | No |
| Intrinsic safety | No |
| Mechanics | S800 |
| Input impedance | 2.5 kΩ (DI-input) |
| Isolation | Individually isolated, channel-to-channel and to circuit common |
| Error | Max. frequency measurement error Relative error Absolute error (Temperature drift included): [320/(MEASTIMEx in ms)] ppm [(320/(MEASTIMEx in ms) +100] ppm |
| Current limiting | Sensor power can be current limited by the MTU |
| Maximum field cable length | 200 meters (218 yards) |
| Rated insulation voltage | 50 V |
| Dielectric test voltage | 500 V a.c. |
| Power dissipation | 2.5 W |
| Current consumption +5 V Modulebus | 120 mA |
| Current consumption +24 V Modulebus | 0 |
| Current consumption +24 V external | 0 |
Diagnostics
| Front LED’s | P(ulse)X, UP (direction), ST(robe), DI, SY(nch), DO, TP (transm. power OK), all per channel |
| Supervision | Process voltage per channel |
| Status indication of supervision | Module Error, Module Warning, Channel error |
Environment and certification
| CE mark | Yes |
| Electrical safety | EN 61010-1, UL 61010-1, EN 61010-2-201, UL 61010-2-201 |
| Hazardous Location | C1 Div 2 cULus, C1 Zone 2 cULus, ATEX Zone 2 |
| Marine certification | ABS, BV, DNV, LR |
| Temperature, Operating | 0 to +55 °C (+32 to +131 °F), approvals are issued for +5 to +55 °C |
| Temperature, Storage | -40 to +70 °C (-40 to +158 °F) |
| Pollution degree | Degree 2, IEC 60664-1 |
| Corrosion protection | ISA-S71.04: G3 |
| Relative humidity | 5 to 95 %, non-condensing |
| Max ambient temperature | 55 °C (131 °F), for vertical mounting in compact MTU 40 °C (104 °F) |
| Protection class | IP20 according to IEC 60529 |
| Mechanical operating conditions | IEC/EN 61131-2 |
| EMC | EN 61000-6-4 and EN 61000-6-2 |
| Overvoltage categories | IEC/EN 60664-1, EN 50178 |
| Equipment class | Class I according to IEC 61140; (earth protected) |
| RoHS compliance | DIRECTIVE/2011/65/EU (EN 50581:2012) |
| WEEE compliance | DIRECTIVE/2012/19/EU |
Dimensions
| Width | 45 mm (1.77”) |
| Depth | 102 mm (4.01”), 111 mm (4.37”) including connector |
| Height | 119 mm (4.7”) |
| Weight | 0.15 kg (0.33 lbs.) |
Q: What is the brand name of the product?
A: The brand name of the product is ABB.
Q: What is the model number of the product?
A: The model number of the product is DP820 3BSE013228R1.
Q: Where is the product manufactured?
A: The product is manufactured in FI.
Q: What are the available payment terms?
A: The available payment terms are T/T, Western Union, and PAYONEER.
Q: What is the delivery time for the product?
A: The delivery time for the product is 3-5 days.
