Name: Universal pulse interface driver MR-J3-200A MITSUBISHI Servo Motor
Brand: Wisdomlong Technology CO.，LTD
SKU: MR-J3-200A
Price: Negotiable USD
Availability: InStock

Home Products Industrial Servo Motor

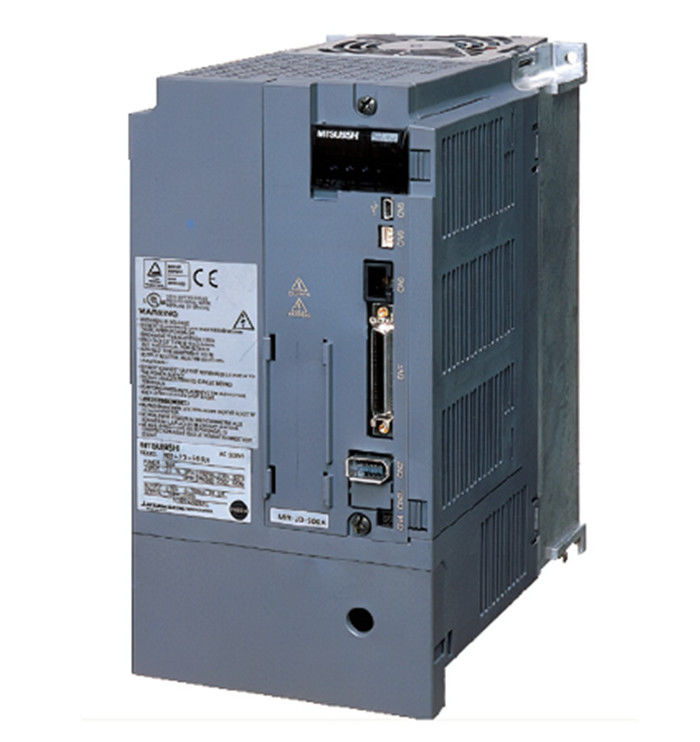

Universal pulse interface driver MR-J3-200A MITSUBISHI Servo Motor

Product Details:

Place of Origin:	Japan
Brand Name:	Mitsubishi
Certification:	CE
Model Number:	MR-J3-200A

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Contact us

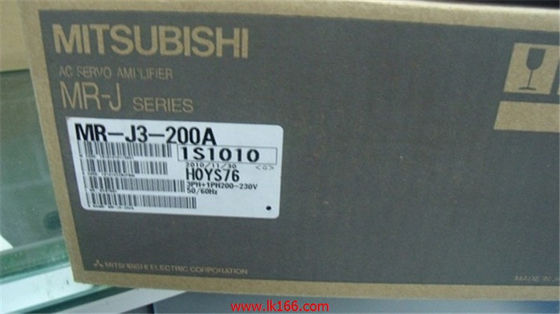

Packaging Details:	New Original Box
Delivery Time:	3-5days
Payment Terms:	T/T
Supply Ability:	50

Contact Now

Detailed Product Description

Model:	MR-J3-200A	Brand:	Mitsubishi
Input:	10.5A	Country Of Origin:	Japan
Product Type:	AC Servo Motor	Rated Output:	2.0kw

Universal pulse interface driver MR-J3-200A MITSUBISHI Servo Motor

Specification of MR-J3-200A

Description	MR-J3-200A is a Drives-AC Servo produced by Mitsubishi
Servomotor Type	MR-J3 AC Servo Amplifier
Phase	3
Supply Voltage	200 to 230 V ac
Power	2Kw
Input	10.5A 3PH+1PH 200-230V 50Hz 3PH+1PH 200-130V 60Hz
Output	170V 0-360Hz 11.0A

Brand: MITSUBISHI
Name: Universal pulse interface driver
Model: MR-J3-200A
MITSUBISHI motor universal AC servo amplifier MELSERVO-J3 series.
Rated output: 2.0kw.
Interface type: general pulse interface type.
Power specification: three phase AC200V.
Pulse train and analog input as universal interface.
Can choose the position, speed and torque control mode.
The use of advanced tuning features such as advanced vibration suppression control and adaptive filter,
Greatly improve the performance of the machine.
MR-J3, your partner.
Higher performance, more features, more convenient to use.
Highest performance in the industry.
Speed response frequency up to 2.1kHz.

MITSUBISHI motor universal AC servo amplifier MELSERVO-J3 series.
Rated output: 11.0kw.
Interface type: SSCNET type III fiber communication.
Special features: integrated driver security.
Power specification: three phase AC400V.
STO function as a security feature is added to the SSCNET III fiber communication type servo amplifier MITSUBISHI MR-J3-200A.
By using the STO function, the electromagnetic contactor used in the past to prevent the motor from accidentally starting is no longer needed MR-J3-200A
SS1 functions can be realized by using the MR-J3-D05 security logic unit.
MR-J3-BS uses a full closed loop control system.
Compatibility with MR-J3-B.
MR-J3-BS installation, wiring and connectors are the same as the MR-J3-B, so do not change the existing connection will be easy to MR-J3-B
Change to MR-J3-BS MITSUBISHI MR-J3-200A.
Security functions are connected to the CN8 interface through an external security circuit to increase the MR-J3-BS driver security.
Compatible full closed loop control system.
MR-J3-BS has a full closed loop control system version. Servo motor series: low inertia, medium / high power.
Rated output: 7.0kw.
Rated speed: 3000r/min MITSUBISHI MR-J3-200A.
Electromagnetic brake: No.
Shaft end specification: Standard (straight axis).
Features: low inertia for high speed / acceleration and deceleration operation occasions.
IP level: IP67.
Application example:
1, food processing machinery MR-J3-200A MITSUBISHI.
2, printing machine.
3, injection molding machine (11KW, 15KW).
4, large press machine (11KW, 15KW).
The protection level of the HF-SP/HF-JP series servo motor is IP67 (except the shaft part) MR-J3-200A MITSUBISHI.
Low inertia of the power servo motor (0.5kW ~ 9kW), the maximum speed: 6000r/min (rated speed: 3000r/min),
Suitable for high frequency positioning and acceleration / deceleration operations, especially for food processing machines and printing machines MR-J3-200A MITSUBISHI.
Low inertia, high power, no cooling fan servo motor (11kW and 15kW), maximum speed: 3000r/min (rated speed: 1500r/min).
The motor structure is more compact due to the adoption of the non cooling fan design, and the connection is reeduced by using the power source connector MR-J3-200A.
(compared with the HF-LP series servo motor with the same power, the volume is reduced by about 46%, and the weight is reduced by about 34%,
Suitable for high frequency positioning annd acceleration / deceleration operations, especially for injection molding machines and large presses MITSUBISHI MR-J3-200A.
HF-JP703 (4) /903 (4) maximum speed: 5000r/min.
