| Place of Origin: | FI |
| Brand Name: | ABB |
| Certification: | Does not supply |
| Model Number: | DO801 3BSE020510R1 |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negitiation |
| Packaging Details: | in box |
| Delivery Time: | 3-5days |
| Payment Terms: | T/T, Western Union, PAYONEER |
| Supply Ability: | 10 |
| Brand: | ABB | Channel Type: | DI |
|---|---|---|---|
| Weight: | 0.3kg | Isolation: | Individually Galvanic Isolated Channels |
| Product Type: | I-O_Module | Product ID: | DO801 3BSE020510R1 |
| RoHS Status: | Following EU Directive 2011/65/EU | Part Number: | DO801 3BSE020510R1 |

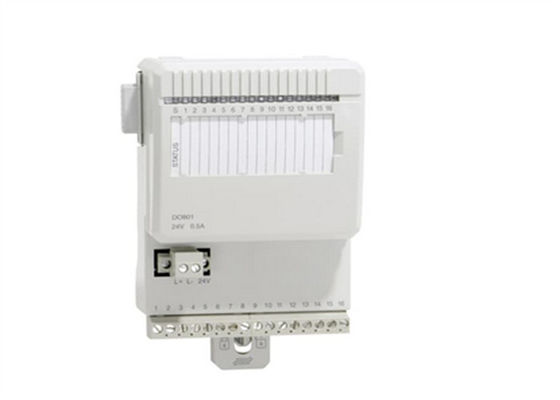

ABB 3BSE020510R1 DO801 Digital Output 24V Redundant Power Supply Module
| Article number | 3BSE020510R1 |
| Type | Digital Output |
| Signal specification | 24 V d.c. (12 - 32 V d.c.), 0.5 A |
| Number of channels | 16 |
| Signal type | Current sourcing, current limiting |
| HART | No |
| SOE | No |
| Redundancy | No |
| High integrity | No |
| Intrinsic safety | No |
| Mechanics | S800L |
Description
The controller is a panel-mounted, slide-out assembly that conforms to DIN standards. The assembly contains four printed circuit boards (main board, operator interface board, power supply board and termination board) and a faceplate assembly . The operator interface board is attached to the faceplate assembly and is connected to the main board via a 26-pin ribbon cable connector. Both the power supply board and the main board plug into card edge connectors on the termination board. The termination board is assembled to the rear of the housing and provides plug-in terminal blocks for easy access when making wiring connections in the field. The terminal blocks are keyed and marked to prevent possible customer connection errors. Type SLC22_ controllers have an optional input board for low level or frequency/pulse inputs. It connects to P6 on the main board. Type SLC_21 controllers have a serial interface board that allows termination board access to the serial interface at the rear of the controller. The serial interface board connects to P7 and P8 on the main board. The housing is welded sheet steel and contains card guides that are riveted to the housing for installing the circuit boards. Multiple knockouts at the rear of the housing provide two ½-inch and one æ-inch conduit entrance facilities for electrical interconnections. The housing also contains multiple holes in the top and bottom primarily for heat dissipatio.
Q: What is the brand name of the product?
A: The brand name of the product is ABB.
Q: What is the model number of the product?
A: The model number of the product is DO801 3BSE020510R1.
Q: Where is the product manufactured?
A: The product is manufactured in FI.
Q: What are the available payment terms?
A: The available payment terms are T/T, Western Union, and PAYONEER.
Q: What is the delivery time for the product?
A: The delivery time for the product is 3-5 days.
