| Place of Origin: | USA |
| Brand Name: | Rosemount |
| Certification: | CE |
| Model Number: | 3051CA1A22A1JS1E8M6Q4Q8 |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | New in original box |
| Delivery Time: | 4-6weeks |
| Payment Terms: | T/T |
| Supply Ability: | 100 |
| Brand: | Rosemount | Model: | 3051CA1A22A1JS1E8M6Q4Q8 |
|---|---|---|---|
| Ouput: | 4-20mA | Type: | Differential Pressure Transmitter |
| Package: | Carton | Voltage: | 10.5-55VDC |

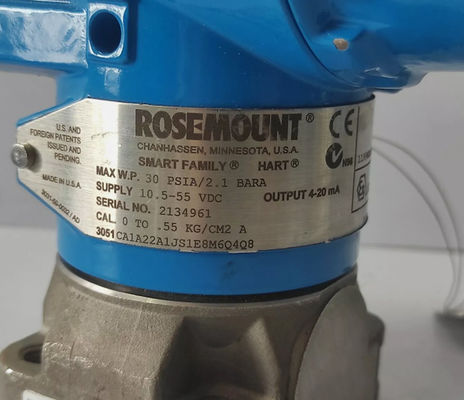

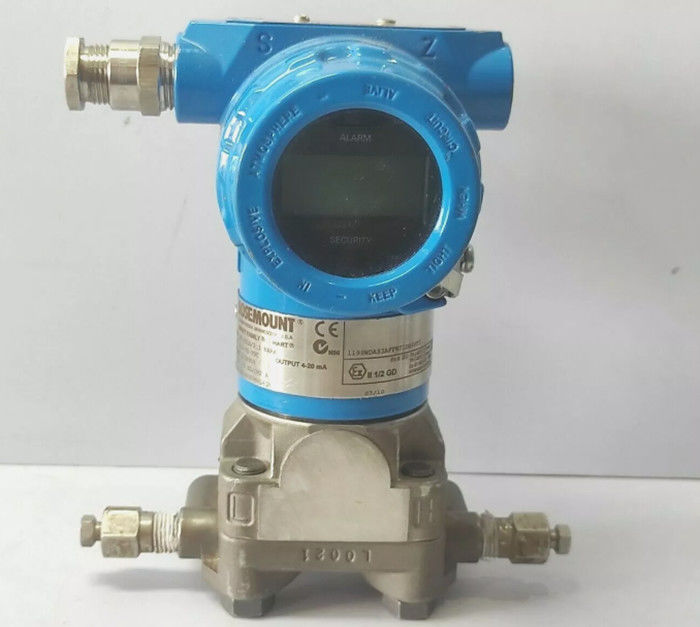

Rosemount 3051CA1A22A1JS1E8M6Q4Q8 Pressure Transmitter 30PSIA/2.1BARA
Brand: Rosemount
Model:3051CA1A22A1JS1E8M6Q4Q8
Rosemount 3051C Coplanar Pressure Transmitters are the industry standard for Differential,Gage, and Absolute pressure measurement.
The Coplanar Platform enables seamless integration with manifolds, flow and level solutions. Capabilities include:
Power Advisory can proactively detect degraded electrical loop integrity issues (Option Code DA0)
Local Operator Interface with straightforward menus and built-in configuration buttons (Option Code M4)
Safety Certification (Option Code QT)
3051C Coplanar Pressure Transmitters Ordering Information
The Standard offering represents the most common options. The starred options (H) should be selected for best delivery.
The Expanded offering is subject to additional delivery lead time.
Specifications:
| Rangedown | Up to 150:1 |
| Communication Protocol | 4-20 mA HART, WirelessHART®, FOUNDATION fieldbus, Profibus, 1-5 V Low Power HART |
| Measurement Range | Up to 2000psi (137,89 bar) Differential, Up to 2000psig (137,89 bar) Gage, Up to 4000psia (275,79 bar) Absolute |
| Process Wetted Material | 316L SST, Alloy C-276, Alloy 400, Tantalum, Gold-plated Alloy 400, Gold-plated 316L SST |
| Diagnostics | Basic Diagnostics, Power Advisory Diagnostics |
| Certifications/Approval | SIL 2/3 certified to IEC 61508 by an independent 3rd party, NSF, NACE, hazardous location, see full specs for complete list of certifications |
