| Place of Origin: | USA |
| Brand Name: | Rosemount |
| Certification: | CE |
| Model Number: | 3051CD2A22A1AS1M5 |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | New in original box |
| Delivery Time: | 4-6weeks |
| Payment Terms: | T/T |
| Supply Ability: | 100 |

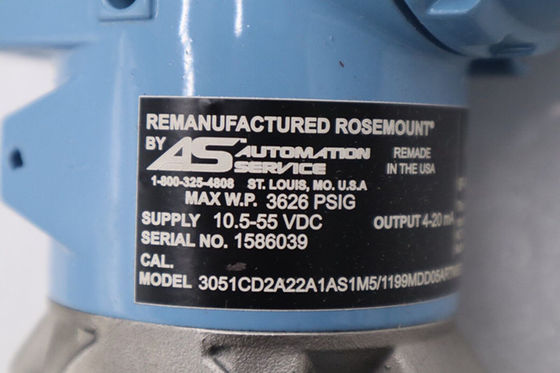

| Brand: | Rosemount | Model: | 3051CD2A22A1AS1M5 |
|---|---|---|---|
| Max W.P: | 3626PSIG | Category: | Differential Pressure Transmitters |
| Output: | 4-20mA | Supply: | 10.5-55VDC |

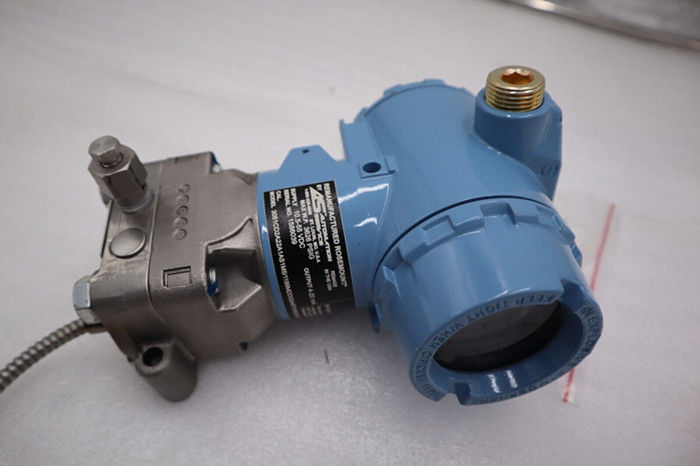

ROSEMOUNT 3051CD2A22A1AS1M5 Differential Pressure Transmitter
Brand:Rosemount
Description of Rosemount Smart Pressure Transmitters
The Rosemount 3051C smart pressure transmitter, with its flexible coplanar platform, has set industry standards for pressure measurement. Equipped with advanced technology, the Rosemount 3051C coplanar pressure transmitter enables seamless integration with various accessories, thereby providing a perfect solution for flow, pressure, and level measurement. The 3051C series transmitters are ideal for gage, differential, and absolute pressure measurements.
Features of Rosemount 3051C Smart Pressure Transmitters
The following features of the Rosemount 3051C smart pressure transmitter have contributed to its popularity across industries:
Multiple Measurement Types: These pressure transmitters can be configured to measure differential, gage, and absolute pressure. The following variations can be obtained with configuration:
Rosemount 3051CD is a differential pressure transmitter, which is used to measure differential pressure in the following pressure ranges:
–25 to 25 inH2O
–250 to 250 inH2O
–1000 to 1000 inH2O
–300 to 300 psi
–2000 to 2000 psi
–3 to 3 inH2O
Rosemount 3051CG is a gauge pressure transmitter, and is used to measure gage pressure in the following pressure ranges.
–25 to 25 inH2O
–250 to 250 inH2O
–393 to 1000 inH2O
–14.2 to 300 psi
–14.2 to 2000 psi
Rosemount 3051CA is an absolute pressure transmitter, which can be configured to measure the pressure in the following ranges:
0 to 30 psia
0 to 150 psia
0 to 800 psia
0 to 4000 psia
Advanced Functionalities of Rosemount 3051C Smart Pressure Transmitters
The Rosemount 3051C smart pressure transmitters are provided with advanced diagnostics. The power advisory diagnostics help users detect on-scale failures due to electric loop issues. The local operator interface (LOI) features simple menus and in-built integration buttons that allow easy device commissioning. The external buttons of LOI also help users install these transmitters in hazardous areas without removing their cover.
Whether used as 3051C series absolute pressure transmitters, 3051CD differential pressure transmitters, or 3051G gage pressure transmitters, these advanced features will help you detect critical issues before they impact your process.
Minimal Inventory: These coplanar transmitters are provided with advanced HART capabilities such as HART7 and HART5. These advanced HART communicators are designed to meet future and current capabilities. Thus, users can reduce the inventory at their side.
Reliability and Safety: Rosemount coplanar pressure transmitters 3051C assure best-in-class performance as well as safety and reliability. They assure:
Reference accuracy of 0.04 percent
10-year stability of 0.2 percent of URL
SIL2/3 certified (IEC 61508)
Measures up to 4000 psi absolute or sealed gage
Measures up to 2000 psi differential or gage pressure
Features of Rosemount 3051C Smart Pressure Transmitters
WirelessHART® technology is secure and cost-effective and delivers >99% data reliability
Over 10 million Rosemount 3051 devices installed globally, providing reliable pressure readings in harsh environments
Patented Rosemount Coplanar technology allows for direct mounting to multiple measurement applications
Complete pressure assemblies are leak-tested and calibrated to reduce leak points up to 70% and simplify installation
Integrated differential pressure (DP) flowmeters, DP level solutions and integral manifolds improve reliability and performance
SmartPower™ module provides up to 10-year maintenance-free operation and field replacement without transmitter removal
Easy installation enables quick instrumentation of measurement points without the cost of wiring
