| Place of Origin: | JAPAN |
| Brand Name: | Yokogawa |
| Certification: | CE |
| Model Number: | EJA110A-DMS4A-64NC |
| Minimum Order Quantity: | 1 |
|---|---|
| Packaging Details: | new original box |
| Delivery Time: | 3-5days |
| Brand: | Yokogawa | PN: | EJA110A-DMS4A-64NC |
|---|---|---|---|
| Country Of Origina: | Japan | Power Supply: | 24V DC |
| Style: | S1 | Output: | 4-20mA |

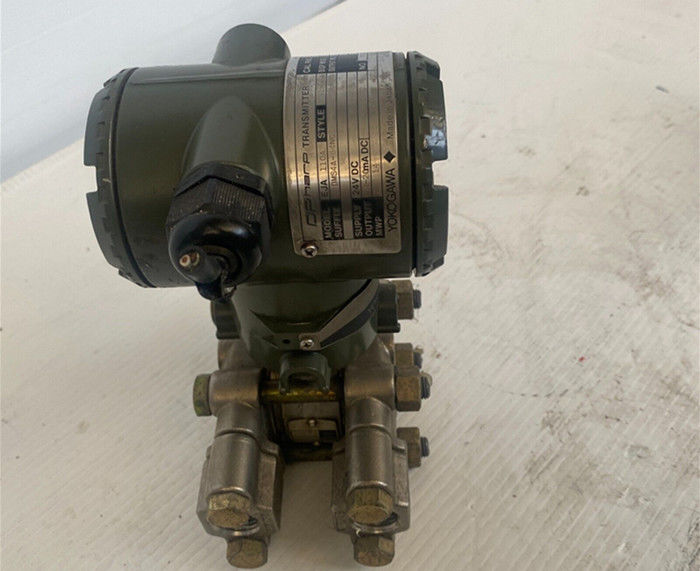

YOKOGAWA DP Harp EJA110A-DMS4A-64NC Style S1 Pressure Transmitter
Brand: Yokogawa
Model:EJA110A-EMS4B-92EN/FF1/D1
Supply:24V DC
Output: 4-20mA
MWP: 14MPa
Stype:S1
The EJA-A series is Yokogawa's most successful pressure transmitter line. First released in 1991, it continues to offer high
performance and high reliability for any application. With an installed base of over 4-1/2 million EJA-A transmitters worldwide, it
has a proven track record that makes it a true industry workhorse.
The EJA110A is the Traditional-mount Differential Pressure Transmitters in the series.
EJA110A features include:
Model Number: EJA110A
Output: 4-20mA with HART protocol
Accuracy: ±0.065% of span
Cover Flange: SUS316, Hastelloy C-276, Monel
Power Supply: 10.5 to 42V
EJA110A Overview
| Measurement Types | |
| Primary Variable | Differential Pressure (DP) |
| Reference Accuracy | |
| Primary Variable | ±0.065% of DP Span |
| Long Term Stability (All Normal Operating Conditions) | |
| Primary Variable | M, H, or V Capsule: ±0.1% of URL per 5 years L Capsule: ±0.1% of URL for 1 year |
| Maximum Pressure Limit (MWP) | |
| All Capsules | 2,300 psi |
| Over-pressure Effect | |
| Primary Variable | ±0.03% of URL |
| Rangeability | |
| Primary Variable | M, H, or V Capsule: 100:1 L Capsule: 20:1 |
| Burst Pressure (Absolute) | |
| All Capsules | 10,000 osi |
Selection Guide for EJA-A Pressure Transmitter
If you need more order information , we can send you the complete datasheet.
Certifications:
1. Certificate of Origin
2. Calibration Certificate
3. Material Traceability Certification
