| Place of Origin: | USA |
| Brand Name: | Rosemount |
| Certification: | CE |
| Model Number: | 3051CG3A02A1AI7H2L4P1 |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | New in original box |
| Delivery Time: | 4-6weeks |
| Payment Terms: | T/T |
| Supply Ability: | 100 |
| Brand: | Rosemount | Model: | 3051CG3A02A1AI7H2L4P1 |
|---|---|---|---|
| Country Of Origin: | USA | Output: | 4-20mA |
| Supply: | 10.5 - 55 VDC | CAL: | 0 To 1000 IN H20 |

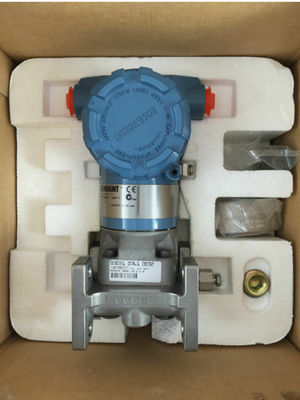

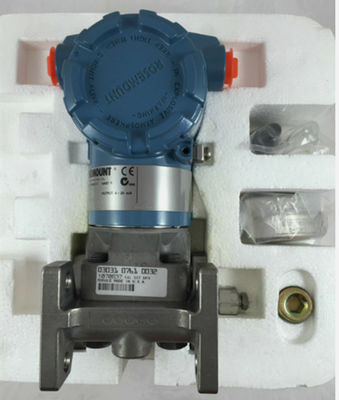

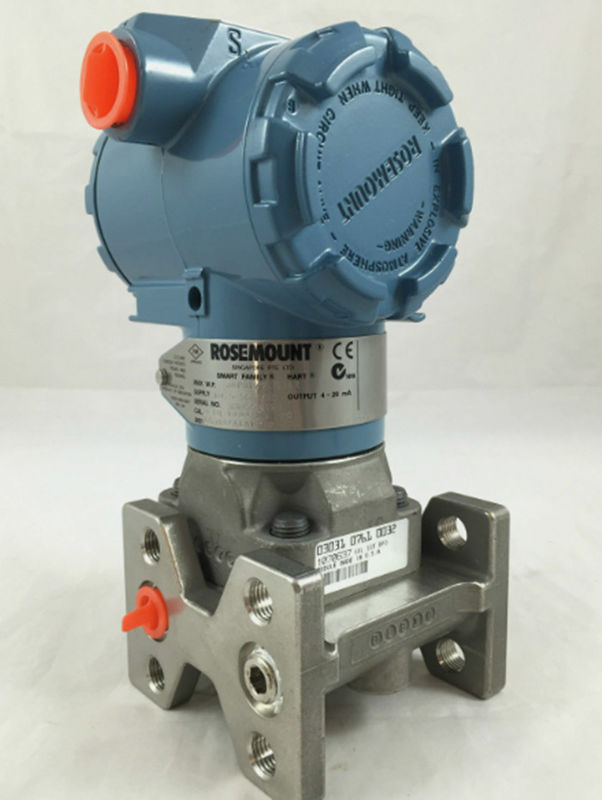

Rosemount 3051CG Gage Pressure Transmitter CG3A02A1AI7H2L4P1 0-1000 in H2O
|
Brand: |
ROSEMOUNT |
|
Condition: |
New without factory packaging |
|
Model: |
3051CG3A02A1AI7H2L4P1 |
|
Pressure: |
0 - 1000 IN-H2O |
|
Voltage (DC): |
10.5 - 55 VDC |
|
Output |
4-20mA |
|
Type: |
Gage Pressure Transmitter |
|
Max W.P |
36PSI/2.5BAR |
Benefit from industry-leading performance and patented technology with the Rosemount 3051 Coplanar Pressure Transmitter. With over 10 million devices installed, this pressure transmitter family offers an all-in-one solution for pressure, level and flow measurement. Engineered with a coplanar flange for installation and application flexibility, this transmitter is easy to install and designed with direct process mounting capability for cost-effective installation and efficiency.
Warranty : Up to 5-year limited warranty
Rangedown : Up to 150:1
Communication Protocol :
4-20 MA HART®, WirelessHART®, FOUNDATION™ fieldbus, PROFIBUS® PA, 1-5 V Low Power HART®
Measurement Range :
Up to 2000 psi (137,89 bar) differential
Up to 2000 psig (137,89 bar) gage
Up to 4000 psia (275,79 bar) absolute
Process Wetted Material : 316L SST, Alloy C-276, Alloy 400, Tantalum, Gold-plated 316L SST, Gold-plated Alloy 400
Diagnostics : Basic Diagnostics, Process Alerts, Loop Integrity Diagnostics, Plugged Impulse Line Diagnostics
Certifications/Approvals : SIL 2/3 certified to IEC 61508 by an independent 3rd party, NSF, NACE®, hazardous location, see full specs for complete list of certifications
Wireless Update Rate : 1 sec. to 60 min., user selectable
Power Module Life : Up to 10-year life, field replaceable (order separately)
Wireless Range : Internal antenna (225 m)
