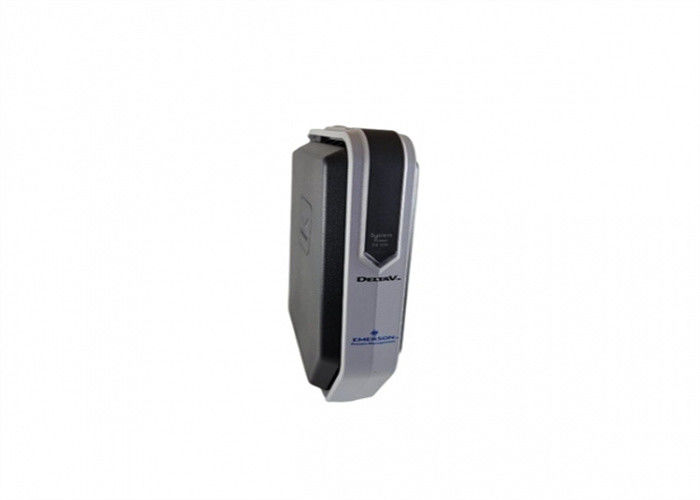

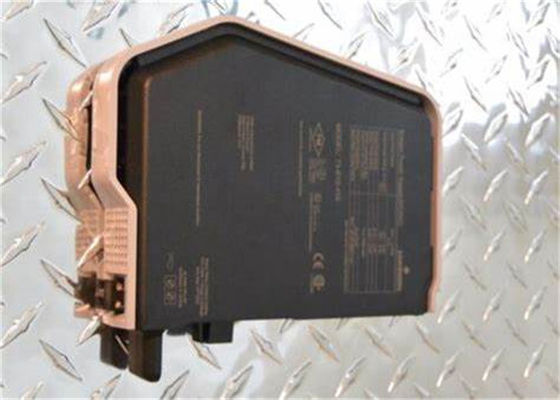

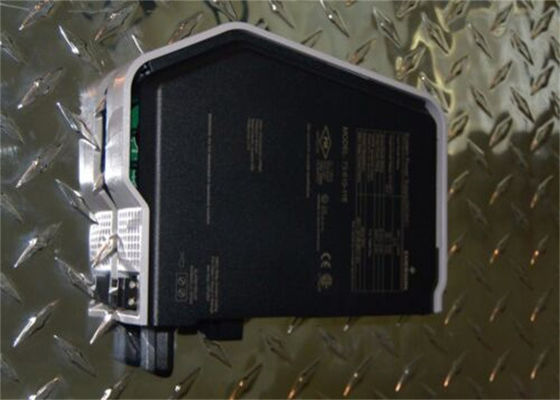

Emerson KJ1501X1-Bk1 DIgital I O Module Brand New In Original

Emerson KJ1501X1-Bk1 DIgital I O Module Brand New In Original

Description:

SE5009 KJ1501X1-BK1 DeltaV™24VDC System Power Supply EMERSON

Manufacturers : EMERSON
Model(s) : SE5009 KJ1501X1-BK1
Additional Information :DeltaVT™24VDC System Power Supply

Estimated Shipping Size
Dimensions:263x 138x88mm
Weight:.2.35 kg
Country of Origin: United States of America

Input:24 VDC ±20% at 6.1A
Inrush (soft start):20 A peak maximum for 5 ms over 24 VDC input range (including12VDC output)
Output Power Rating -40 to 60°C: +12 VDC at 8.0 A (24 VDC Input), +5 VDC at 2.0 A (10 W total for combined outputs of +5 VDC)
Output Power Rating 60 to 70°C: +12 VDC at 6.0 A (24 VDC Input),+5 VDC at 2.0 A (10 W total for combined outputs of +5 VDC)

Input protection:Internally fused, non-replaceable
Overvoltage protection:Output protected at 110% to 120%
Hold-up time: Output: remains within 5% of nominal at full load and minimum input voltage for 5 ms (excluding12VDC current with12VDC input
Operating Temperature: -40 to 60 °C (-40 to 140°F) without de-rating, CD11360 to 70 °C (140 to 158°F) with de-rating
Storage Temperature:-40 to 70 °C (-40 to 158 °F)

Reltive Humidity:5 to 95%,non-condensing
Shock:10 g%-sine wave for 11 ms
Vibration: 1 mm peak-to-peak from 5 Hz to 13.2 Hz. 0.7 g from 13.2Hz to 150 Hz
