| Place of Origin: | China |
| Brand Name: | Emerson CONTROL TECHNIQUES |
| Certification: | CE |
| Model Number: | M701-064-00470A |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Contact us |
| Packaging Details: | New Original Box |
| Delivery Time: | 3-5days |
| Payment Terms: | T/T |
| Supply Ability: | 50 |
| Brand: | Emerson CONTROL TECHNIQUES | Model: | M701-064-00470A |
|---|---|---|---|
| Weight: | 5KG | Complete Model: | M701-064-00470A10100AB100 |
| Type: | AC Inverter DRIVE | Series: | Unidrive M700 |

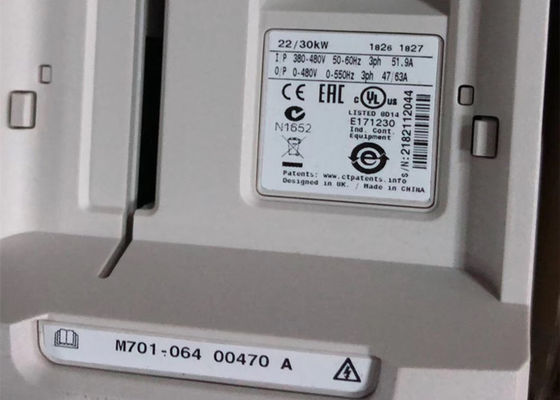

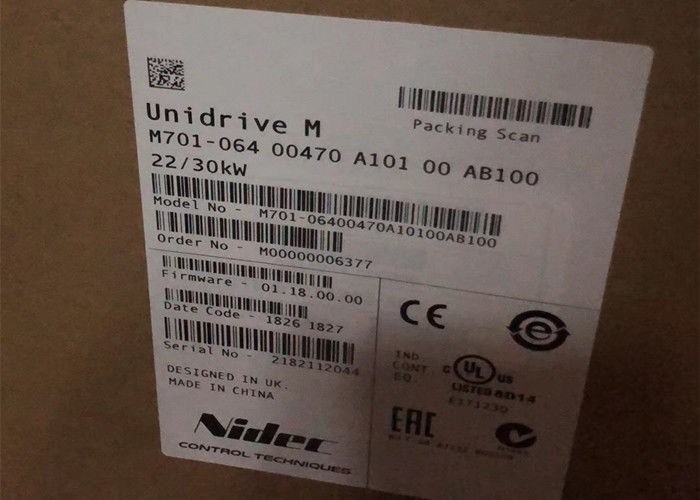

Nidec Emerson CONTROL TECHNIQUES M701-064-00470A 22/30KW 47A Unidrive M AC Inverter Drive
Description
Unidrive M700
Class leading induction and permanent magnet servo motor performance, with real-time Ethernet
0.75 kW – 2.8 MW (1.0 - 4,200 hp)
200 V / 400 V / 575 V / 690 V
Led by the results of extensive customer-driven market research, we have tailored five Unidrive M feature-sets to specific application needs identified within Industrial Automation.
The Unidrive M700 provides class-leading motor control for induction, permanent magnet and servo applications, plus onboard real-time Ethernet. Unidrive M700 provides ultimate control flexibility in order to satisfy the requirements of machine builders and high specification industrial applications.
Unidrive M700 offers an enhanced upgrade for existing Unidrive SP users.
Specifications of AC Drive M700
| 200/240 VAC +/-10% |
Normal Duty | Heavy Duty | ||||
| Order Code | Max Continuous Current (A) | Motor Shaft Power (kW) | Motor Shaft Power (HP) | Max Continuous Current (A) | Motor Shaft Power (kW) | Motor Shaft Power (HP) |
| M701-03200050A10 | 6,6 | 1,1 | 1,5 | 5 | 0,75 | 1 |
| M701-03200066A10 | 8 | 1,5 | 2 | 6,6 | 1,1 | 1,5 |
| M701-03200080A10 | 11 | 2,2 | 3 | 8 | 1,5 | 2 |
| M701-03200106A10 | 12,7 | 3 | 3 | 10,6 | 2,2 | 3 |
| M701-04200137A10 | 18 | 4 | 5 | 13,7 | 3 | 3 |
| M701-04200185A10 | 24 | 5,5 | 7,5 | 18,5 | 4 | 5 |
| M701-05200250A10 | 30 | 7,5 | 10 | 25 | 5,5 | 7,5 |
| M701-06200330A10 | 50 | 11 | 15 | 33 | 7,5 | 10 |
| M701-06200440A10 | 58 | 15 | 20 | 44 | 11 | 15 |
| M701-07200610A10 | 75 | 18,5 | 25 | 61 | 15 | 20 |
| M701-07200750A10 | 94 | 22 | 30 | 75 | 18,5 | 25 |
| M701-07200830A10 | 117 | 30 | 40 | 83 | 22 | 30 |
| M701-08201160A10 | 149 | 37 | 50 | 116 | 30 | 40 |
| M701-08201320A10 | 180 | 45 | 60 | 132 | 37 | 50 |
| M701-09201760A10100AB | 216 | 55 | 75 | 176 | 45 | 60 |
| M701-09202190A10100AB | 266 | 75 | 100 | 219 | 55 | 75 |
| 380/480 VAC +/-10% |
Normal Duty | Heavy Duty | ||||
| Order Code | Max Continuous Current (A) | Motor Shaft Power (kW) | Motor Shaft Power (HP) | Max Continuous Current (A) | Motor Shaft Power (kW) | Motor Shaft Power (HP) |
| M701-03400025A10 | 3,4 | 1,1 | 1,5 | 2,5 | 0,75 | 1 |
| M701-03400031A10 | 4,5 | 1,5 | 2 | 3,1 | 1,1 | 1,5 |
| M701-03400045A10 | 6,2 | 2,2 | 3 | 4,5 | 1,5 | 2 |
| M701-03400062A10 | 7,7 | 3 | 5 | 6,2 | 2,2 | 3 |
| M701-03400078A10 | 10,4 | 4 | 5 | 7,8 | 3 | 5 |
| M701-03400100A10 | 12,3 | 5,5 | 7,5 | 10 | 4 | 5 |
| M701-04400150A10 | 18,5 | 7,5 | 10 | 15 | 5,5 | 10 |
| M701-04400172A10 | 24 | 11 | 15 | 17,2 | 7,5 | 10 |
| M701-05400270A10 | 30 | 15 | 20 | 27 | 11 | 20 |
| M701-05400300A10 | 30 | 15 | 20 | 30 | 15 | 20 |
| M701-06400350A10 | 38 | 18,5 | 25 | 35 | 15 | 25 |
| M701-06400420A10 | 48 | 22 | 30 | 42 | 18,5 | 30 |
| M701-06400470A10 | 63 | 30 | 40 | 47 | 22 | 30 |
| M701-07400660A10 | 79 | 37 | 50 | 66 | 30 | 50 |
| M701-07400770A10 | 94 | 45 | 60 | 77 | 37 | 60 |
| M701-07401000A10 | 112 | 55 | 75 | 100 | 45 | 75 |
| M701-08401340A10 | 155 | 75 | 100 | 134 | 55 | 100 |
| M701-08401570A10 | 184 | 90 | 125 | 157 | 75 | 125 |
| M701-09402000A10100AB | 221 | 110 | 150 | 200 | 90 | 150 |
| M701-09402240A10100AB | 266 | 132 | 200 | 224 | 110 | 150 |
| SP1201 | SP1202 | SP1203 | SP1204 | SP2201 | SP2202 | SP2203 | SP3201 |
| SP3202 | SP4201 | SP4202 | SP4203 | SP5201 | SP5202 | SP3501 | SP3502 |
| SP0401 | SP0402 | SP0403 | SP0404 | SP0405 | SP1401 | SP1402 | SP1403 |
| SP1404 | SP1405 | SP1406 | SP2201 | SP2202 | SP2401 | SP2402 | SP2403 |
| SP2404 | SP3401 | SP3402 | SP3403 | SP4401 | SP4402 | SP4403 | SP5401 |
| SP5402 | SP5403 | SP6401 | SP6402 | SP3505 | ES2401 | ES2402 | ES2403 |
| SP3503 | SP3504 | SP3506 | SP4601 | SP4602 | SP4603 | SP4604 | SP4605 |
| SP4606 | SP5601 | SP5602 | SP6601 | SP6602 | Unidrive SP | Quantum MP | Mentor MP |
Unidrive M: compatibility with Commander SK and Unidrive SP
Mechanical
• Compatible physical dimensions, weights and surface mount footprint.
• When retrofitting surface mount drives, existing mounting holes can be reused-negating the need for additional drilling. Mounting holes are in the same place or retrofit kits are available.
Electrical
• Power and control wiring adopt the same philosophy as Commander SK and Unidrive SP.
| SKA1100025 | SKA1100037 | SKB1100075 | SKB1100110 | SKA1200025 | SKA1200037 | SKA1200055 |
| SKBD200110 | SKBD200150 | SKCD200220 | SKDD200300 | SKD3200400 | SKB3400037 | SKB3400055 |
| SKB3400110 | SKB3400150 | SKB3400220 | SKB3400300 | SKB3400400 | SKB3400550 | SKB3400750 |
| SKA1200075 | SKB3400075 | SK3201 | SK3202 | SK4201 | SK4202 | SK4203 |
| SK2402 | SK2403 | SK2404 | SK3401 | SK3402 | SK3403 | SK4401 |
| SK4403 | SK5401 | SK5402 | SK6401 | SK6402 | SK3501 | SK3502 |
| SK3504 | SK3505 | SK3506 | SK3507 | SK4601 | SK4602 | SK4603 |
| SK4605 | SK4606 | SK5601 | SK5602 | SK6601 | SK6602 | SK6602 |
| SK2401 | SK4402 | SK2201 | SK2202 | SK2203 | SK3503 | SK4604 |
| UNI1201 | UNI1202 | UNI1203 | UNI1204 | UNI1205 | UNI2201 | UNI2202 | UNI2203 |
| UNI3201 | UNI3202 | UNI3203 | UNI3204 | UNI1401 | UNI1402 | UNI1403 | UNI1404 |
| UNI1405 | UNI2401 | UNI2402 | UNI2403 | UNI3401 | UNI3402 | UNI3403 | UNI3404 |
| UNI3405 | UNI4401 | UNI4402 | UNI4403 | UNI4404 | UNI4405 | UNI5401 | SP5402 |
Applications of Industrial AC Drive M700
