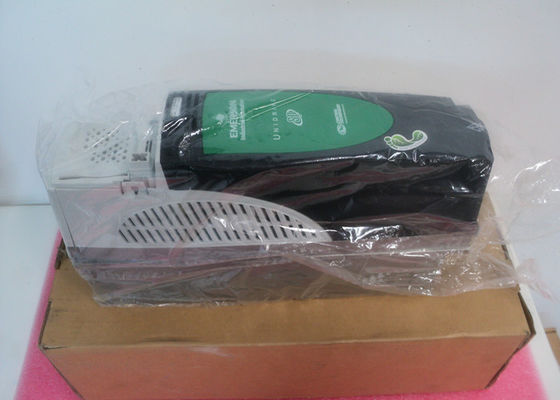

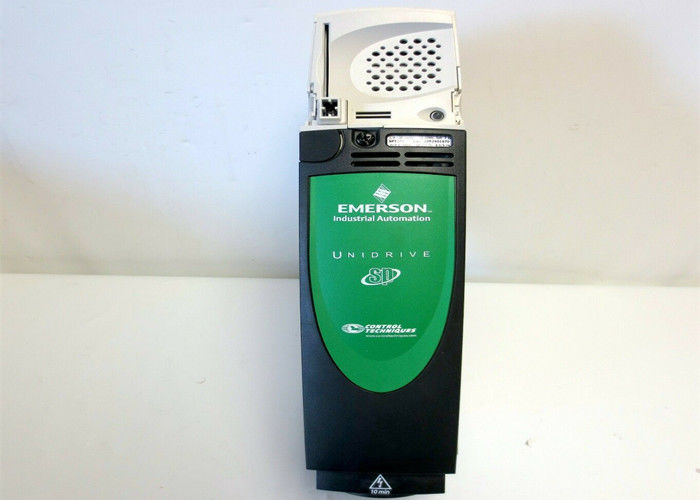

NIDEC EMERSON CONTROL TECHNIQUES UNIDRIVE SP1201 AC Drive 0.75KW 240V 5.2A SP1.5TL 1.5HP

Specifications

Description

The AC Variable Speed Drive Solution Platform 0.75 kW to 30 kW

What is Unidrive SP?

--From the simplest to the most complex AC drive application;Unidrive SP is a truly scalable Solutions Platform.Your requirements can be matched by Unidrive SP and its options to maximize your productivity.

What makes Unidrive SP
The Benchmark?

--Unidrive SP is soflexibleit can bepersonalizedto your requirements, toloweryour true total costs whilst improving your productivity - Unidrive SP rewrites the
standards for all drive users. As a Solutions Platform with ultimateflexibility,it is the point from which all driveusers should measure themselves.

Flexibility

• Open loop, Closed loop, Servo and Regeneration modes of operation all selectable as standard by the user.
• Widest possible fieldbus option range with PROFIBUS, DeviceNet, CANopen, Modbus RTU,INTERBUS, CTNet.
• Unique fieldbus to fieldbus gateway approach eliminates costly interfaces when more than one fieldbus type is required.
• True scalability of the PLC processing power with internal SM-Applications technology.
• System status can be accessed whilst drives are running using the "hot-pluggable" RJ45 port and CTSoft PC tool.
• User interface requirements can be scaled to budget and application with a choice of LED or dual language LCD keypads.
• Universal encoder feedback accepts 14 different types.
• Global voltage supply, 200V to 575V ac.

Performance

• Powerful SM-Applications module option for implementing fully customized solutions, or executing pre-engineered solutions. Conforms to IEC61131-3.
• Ultra fast speed and torque updates maximize dynamic response in demanding applications.
• Drive to drive synchronization for multiaxis motion co-ordination.
• Distributed control via CTNet fieldbus.
• Rapid response to motion profile demands with dynamic 250µs update rate.
• True system drive performance scalable to your solution.
• Integrated EMC filter meets EN61800-3.
• Secure Disable feature as standard reduces cost by lowering system component count while meeting EN954-1 category 3.
• Modbus RTUas standard.
• Auto parameter back-up by using the for security and fast commissioning.
• Only one learning curve for mastering all types of drives.
• Zero space PLC (IEC61131-3) option.
• Prepackaged applications software for Winders,Flying Shears, etc, etc.
• Truly scalable PLC power with up to 3 zero-space SM-Applications modules.
