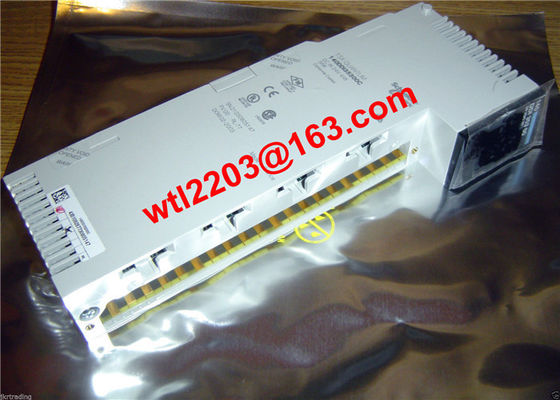

SCHNEIDER ELECTRIC MODICON QUANTUM 140-CHS-210-00 140CHS21000

Quick details:

• SCHNEIDER ELECTRIC
• MODICON
• 140-CHS-210-00
• 140CHS21000
• HOT STANDBY KIT
• AVAILABLE
• New one with one year warranty and used one with six months warranty
• Weight: 5.59lbs

Specifications:

ConneXium™ managed switches (continued) Predefined configuration files (continued) Example topology with predefined configuration files C5, C1 and C3 (1) A common use of this preconfiguration is for interfacing a copper link with a fiber optic link on the primary ring or interfacing a fiber optic link with a copper link. This type of architecture makes it possible to have Ethernet DIO or Ethernet RIO drops some distance away from the PLC. The switch preconfiguration also enables Ethernet RIO and/or several Ethernet DIO device clouds to be connected to a secondary ring.

1 Primary ring, copper/fiber optic medium

2 Ethernet DIO secondary ring, copper medium only

3 Ethernet head adaptor 140CRP31200 installed in the Quantum™ rack.

4 ConneXium switch TCSESM083F23F1 with predefined configuration file C2 (2)

5 ConneXium switch TCSESM063F2CU1/CS1 with predefined configuration file C6 (2)

6 ConneXium switch TCSESM063F2CU1/CS1 with predefined configuration file C4 (2)

7 Modicon™ STB Ethernet DIO (3) (4)

8 Connection to Ethernet DIO device cloud, copper medium only

9 Ethernet DIO device cloud (3)

10 Ethernet communication module 140NOE771

11 Ethernet Interlink cable TCSECN3M3M1S4/1S4U (1 m)

Technical FAQs:

What's the part number of the Fiber Optic Cable that comes with the 140CHS21000 Hot Standby Kit?
