Name: AB 1771-A1B Redundant Power Supply Module PLC 5 I/O Chasis 4 Slots 16 Amperes
Brand: Wisdomlong Technology CO.，LTD
SKU: 1771-A1B
Price: Negotiable USD
Availability: InStock

Home Products Redundant Power Supply Module

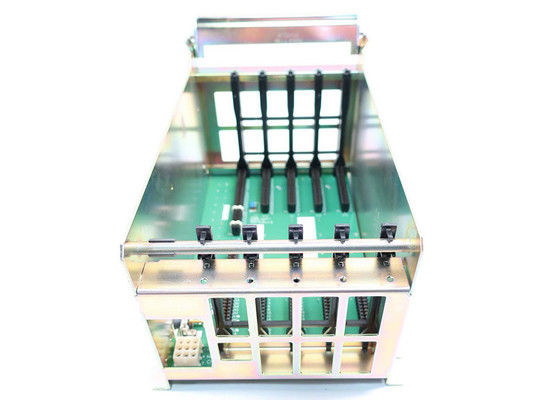

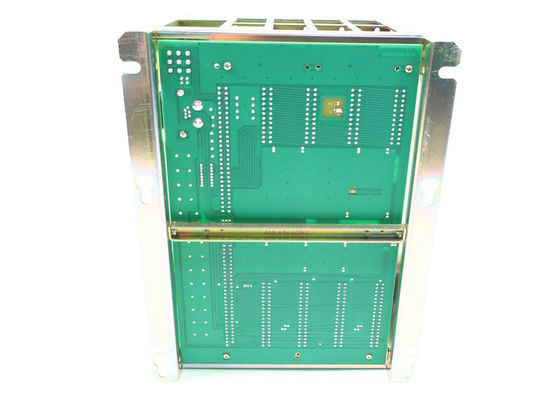

AB 1771-A1B Redundant Power Supply Module PLC 5 I/O Chasis 4 Slots 16 Amperes

Product Details:

Place of Origin:	Japan
Brand Name:	AB
Certification:	CE
Model Number:	1771-A1B

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiated
Packaging Details:	New Original
Delivery Time:	3-5days
Payment Terms:	L/C, T/T
Supply Ability:	1000

Contact Now

Detailed Product Description

Brand:	AB	Product Type:	Digital I O Module
Part Number:	1771-A1B	Place Of Origin:	Japan
Signal Range::	4...20mA, 0...20mA	Temperature Rating::	-20...55 Â°C (-4...131 Â°F)
Highlight:	1771-A1B , 1771-A1B Redundant Power Supply Module

AB 1771-A1B Redundant Power Supply Module PLC 5 I/O Chasis 4 Slots 16 Amperes

About 1756-A7

The AB 1756-A7 is a Seven (7) slot chassis from the ControlLogix Programmable Automation Controller (PAC) platform. This hardware is an essential component in building a ControlLogix control system as chassis, such as the 1756-A7 provides backplane connection and allows module to be installed in the provided module insertion slots.

The 1756-A7 also hosts the mounting slot for the Power supply, located at the left most side of the chassis. This chassis supports slim, standard and power supplies.

The 1756-A7 is mounted directly to the enclosure’s subpanel via the provided Four (4) mounting tabs. It has physical dimensions of 50.8 x 60.9 x 20.3 cm (20 x 24 x 8 in.) and weighs approximately 1.10 kg (2.4 lb). Depending on the type of power supply used, the overall dimension of the 17560A7 varies. This chassis is also provided with a functional earth ground and protective earth ground terminals. Recommended wire type and size for the functional earth is an 8.3 sq. mm (8 AWG) solid or stranded copper wire with insulation rating of 90 °C (194 °F) or greater while for protective earth terminal, appropriate wire size is 2.1 sq. mm (14 AWG) solid or stranded copper wire with insulation rating of 90 °C (194 °F) or higher.

The 1756-A7 ControlLogix chassis has a power dissipation of 4.5 Watts and provides maximum backplane current supply of 1.5 A @ 1.2 VDC; 4A @ 3.3 VDC; 15 A / 6 A @ 5.1 VDC and 2.8 A / 2.8 A @ 24VDC for chassis / slot.

The operational thermal dissipation rate of the 1756-A7 is valued at 6.1 BTU per hour and the maximum operational power is rated at 1.8 Watts. The backplane current of the 1756-A7 is 2.8 Amps at 24 Volts, 6 Amps or 15 Amps at 5.1 Volts, 1.5 Amps at 1.2 Volts, and 4 Amps at 3.3 Volts. Moreover, the 1756-A7 chassis shipping dimensions are 50.8 x 60.9 x 20.3 in centimeters or 20 x 24 x 8 in inches. It weighs 2.4 pounds. The measured operating temperature range is from 0 to 60 degrees Celsius or 32 to 140 degrees Fahrenheit. The suggested storage temperature range is from -40 and 85 degrees Celsius. Besides, the compatible humidity type for the 1756-A7 is non-condensing and the relative humidity level the chassis can be used at is 5 to 95%. The shock rating of the chassis in its operating state is 30 G (acceleration) and in a non-operating state, the shock rating is 50 G (acceleration). On the other hand, the 1756-A7 has an open type of enclosure which allows the users to easily install it. Furthermore, it uses a stranded or solid copper wire with a size of 8.3 square millimeters (14 AWG) that is rated at 194 degrees Fahrenheit (90 degrees Celsius) or greater for a functional earth ground and a wire with a size of 2.1 square millimeters (14 AWG) for the protective earth ground.

Technical Specifications for 1756-A7

Manufacturer	Rockwell Automation
Brand	AB
Operating Temperature, Series B	0°C to +60°C (+32°F to +140°F)
No. of mounting tabs	Four (4)
Orientation	Horizontal
Backplane Current, Chassis/Slot @ 24VDC	2.8 A/2.8 A
Backplane Current, Chassis/Slot @ 5.1VDC	15 A/6 A
Backplane Current, Chassis/Slot @ 3.3VDC	4A/4 A
Backplane Current, Chassis/Slot @ 1.2VDC	1.5 A
No. of slots	Seven (7) slots
Operating Temperature, Series C	-25…+60 °C (-13…+140 °F)
Storage Temperature	-40°C to +85°C (-40°F to +185°F)
Cabinet size (HxWxD), min	50.8 x 60.9 x 20.3 cm (20 x 24 x 8 in.)
Part Number/Catalog No.	1756-A7

Series	ControlLogix
Module Type	Chassis
Mounting	Panel Mount
Power dissipation, max	4.5 W
Slots	7
Power Dissipation (Max)	4.5 Watts
Dimensions	20 x 24 x 8 inches
Weight	2.4 pounds (1.1 kilograms)
Enclosure	Open
Backplane Current (5 Volts DC)	10 Amps
Backplane Current (24 Volts DC)	2.8 Amps
UPC	10612598129314
UNSPSC	32151704

FAQ for 1756-A7

How is the 1756-A7 chassis installed?

The 1756-A7 supports direct panel mounting in horizontal orientation only.

What is the operating temperature of the 1756-A7?

The 1756-A7’s operating temperature is 0…60 °C (32…140 °F) for Series B and -25…60 °C (-13…140 °F) for Series C chassis.

What is the operating vibration of the 1756-A7?

The 1756-A7 has an operating vibration rating of 2 g @ 10…500 Hz.
