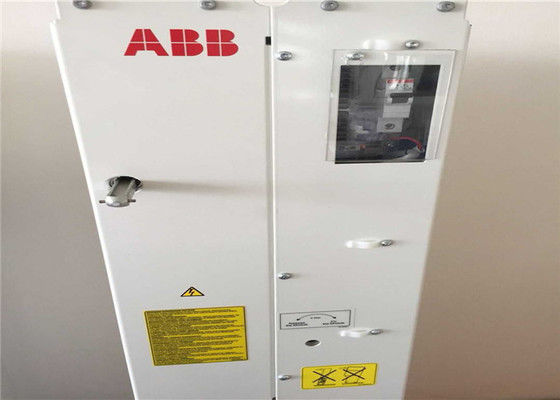

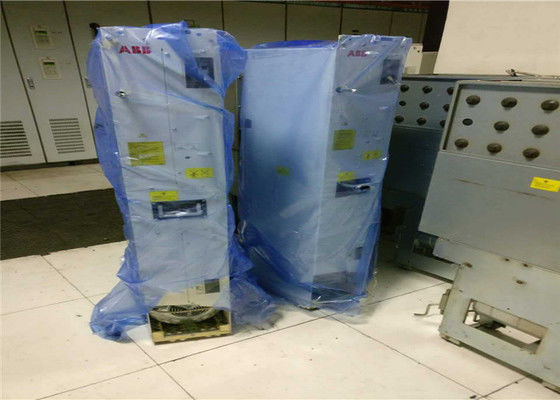

ACS880-07-0900A-7+G313+H359+ K454+L504+8L506+P902+P904+Q963 Supply Module for Inverter ACS800 Series

ACS880-07-0900A-7+G313 +H359+ K454+L504+8L506+P902+P904+Q963 Supply Module for Inverter ACS800 Series

ACS880-07-0900A-7+G313 +H359+ K454+L504+8L506+P902+P904+Q963 Supply Module for Inverter ACS800 Series

Standard Hardware Features

• Frame sizes R2i to R5i control board inside of the module
• Frame sizes R7i to n*R8i control board outside of the module
• Extensive, programmable I/O
• Three I/O and fieldbus extension slots
• Inputs galvanically isolated
• Optimised design for cabinet assembly
• Modular design allowing wide variety of variants
• Compact design
• Long lifetime cooling fan and capacitors
• du/dt filters as standard in parallel connected R8i and in single or parallel connected 690 V inverter units
• Mounting on the cabinet wall frame size R2i to R7i and on the cabinet floor for R8i and the D3/D4 supply module
• Wheels and plug connectors in the R8i inverter and
• D3/D4 supply module
• Coated boards
• LCL-filter units in ISUs

The ACS800 multidrive module product range includes rectifier- and DC-supplied inverter modules and accessories especially designed for integrators, machine builders and panel builders.

The ACS800 multidrive principle based on a common DC bus arrangement enables single power entry and common braking resources for several drives. Common braking includes the possibility for regenerative braking and motor-to-motor braking depending on the motor loads in the line-up.

The design of these modules is based on much smaller inverter modules.

The modules have a plug-in connector, meaning fast and easy assembling. The modules are also equipped with wheels, so they can easily be pulled out of the cabinet and pushed back for maintenance purposes.

This concept also allows pre-installation of the power cables in the empty cabinet.

Inverter and diode modules can be freely connected parallel for higher output current. This means a limited number of different module sizes and fewer spare parts.

The modularity, compact size and simplicity of the modules means a lot of savings for cabinet builders in terms of minimizing the number of cabinets and the widths.

Besides the compact design, the new ACS800 DC-supplied inverter and rectifier units include an extensive selection of options.
