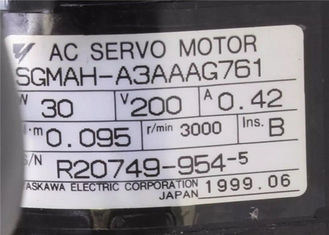

SGMAH-A3AAAG761 Industrial Servo Motor Yaskawa SGMAH Series Ins B SERVO MOTOR

Yaskawa: Servomotor SGMSH-40ACA61

Yaskawa SGMSH-40ACA61 Product information and technical parameters:
Brand: Yaskawa
Name: Super high power motor
Model: SGMSH-40ACA61
Servo motor SGMSH type.
Rated speed: 3000r/min.
Power: 4.0kw.
Power supply voltage: three phase AC200V.
Serial encoder: 17 bit relative value.
Design sequence: A.
Key: straight shaft end uranium belt with screw.
Optional parts: no brake oil seal.
Ultra high power response series: the need for small inertia, high torque.
Online automatic adjustment, automatic measurement of mechanical properties, set the required servo gain.
Even if the initial contact, can also be completed in a short time the best set.
Automatic identification of the motor, servo drive automatic identification of servo motor power, specifications, automatic setting motor parameters.
Standard for regenerative resistance connection terminals.
Connecting terminal equipped with external regenerative resistance,
Convenient connection regenerative resistor

• Time Rating: Continuous

• Insulation: Class F

• Vibration: 15mm or less

• Withstand Voltage: 1500VAC

• Insulation Resistance: 10MW minimum at 500VDC

• Enclosure: Totally-enclosed, self-cooled IP67 (except for shaft opening)

• Ambient Temperature: 0 to 40ºC

• Ambient Humidity: 20 to 80% (non-condensing)

• Rated Speed: 3000rpm

• Maximum Speed: 5000rpm

• Excitation: Permanent magnet

• Drive Method: Direct drive

• Mounting: Flange-mounted

• Painting Color: Munsell notation N1.5
