| Place of Origin: | France |
| Brand Name: | Schneider |
| Certification: | CE |
| Model Number: | 140CPU11303 |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | USD |
| Packaging Details: | new original box |
| Delivery Time: | 3-5days |
| Payment Terms: | T/T, Union,payoneer |
| Supply Ability: | 50 pcc/week |
| Brand: | Schneider | Model: | 140CPU11303 |
|---|---|---|---|
| Type: | Modicon Quantum Automation Platform | Country Of Origin: | France |
| Condition: | New Original | Deliver: | 3-5days |
| MOQ: | 1 PCS | Warranty: | 1 Year |
Quick details:
See Quantum 140-CPU-113-03 PDF below for product info.

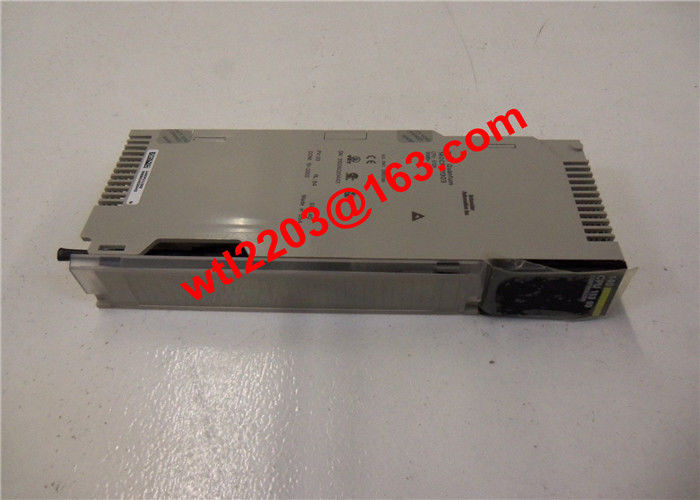

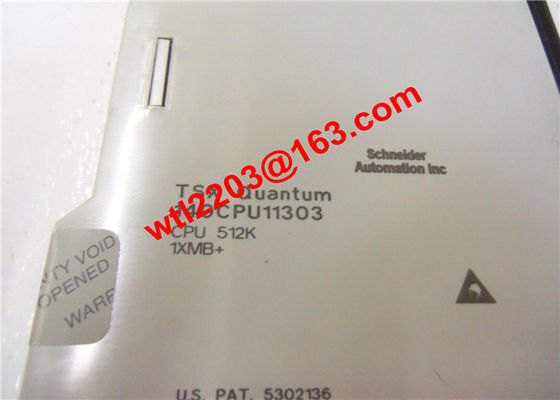

Quantum | 140CPU11303 | Modicon | 140 CPU 113 03 | Processor 512K RAM 16K User Logic 1xMB+
The Quantum 140CPU11303 CPU is a single-slot programmable controller with built-in executive memory, application memory and communication ports. All memory components are on board so no additional chips or cartridges are necessary. Quantum CPUs use flash memory technology to support the CPU’s executive memory and instruction set. Flash is a state-of-the-art, nonvolatile memory technology that enables downloadable field upgrades as new features become available.
| clock frequency | 20 MHz | |
|---|---|---|
| memory description | Internal RAM 368 kB | |
| exact time for 1 Kinstruction | 0.3...1.4 ms LL984 | |
| watchdog timer | 250 ms | |
| clock drift | +/-8 s/day at 32...140 °F (0...60 °C) | |
| I/O words | 30 I/32 O distributed 64 I/64 O max local 64 I/64 O remote |
|
| I/O words/network | 500 I/500 O distributed | |
| drops/network | 63 distributed | |
| number of drops | 31 remote | |
| number of network | 2 remote 3 distributed |
|
| battery type | Lithium 7 µA 210 µA | |
| battery capacity | 1.2 Ah | |
| battery life | 10 yr | |
| number of port | 1 Modbus RS232 1 Modbus Plus |
|
| communication module processor capacity | 2 NOM, NOE, CR, NMS | |
| switch function | Without key switch | |
| marking | CE | |
| bus current requirement | 790 mA | |
| module format | Standard |
Environment:
| product certifications | CUL FM Class 1 Division 2 |
|
|---|---|---|
| standards | UL 508 CSA C22.2 No 142 |
|
| resistance to electrostatic discharge | 4 kV contact conforming to IEC 801-2 8 kV on air conforming to IEC 801-2 |
|
| resistance to electromagnetic fields | 9.14 V/yd (10 V/m) 80...2000 MHz conforming to IEC 801-3 | |
| ambient air temperature for operation | 32...140 °F (0...60 °C) | |
| ambient air temperature for storage | -40...185 °F (-40...85 °C) | |
| relative humidity | 95 % without condensation | |
| operating altitude | <= 16404.2 ft (5000 m) |
| Category | 18150 - QUANTUM CONTROLLERS,HSBY,COMM. | |
|---|---|---|
| Discount Schedule | PC21 | |
| GTIN | 00785901792512 | |
| Nbr. of units in pkg. | 1 | |
| Package weight(Lbs) | 1.1400000000000001 | |
| Returnability | N | |
| Country of origin | F |
| Sustainable offer status | Green Premium product | |
|---|---|---|
| RoHS (date code: YYWW) |
Compliant - since 0901 - Schneider Electric declaration of conformity Schneider Electric declaration of conformity
|
|
| REACh | Reference not containing SVHC above the threshold | |
| Product environmental profile | Available | |
| Product end of life instructions | Available |
1 Primary ring, copper/fiber optic medium
2 Ethernet DIO secondary ring, copper medium only
3 Ethernet head adaptor 140CRP31200 installed in the Quantum™ rack.
4 ConneXium switch TCSESM083F23F1 with predefined configuration file C2 (2)
5 ConneXium switch TCSESM063F2CU1/CS1 with predefined configuration file C6 (2)
6 ConneXium switch TCSESM063F2CU1/CS1 with predefined configuration file C4 (2)
7 Modicon™ STB Ethernet DIO (3) (4)
8 Connection to Ethernet DIO device cloud, copper medium only
9 Ethernet DIO device cloud (3)
10 Ethernet communication module 140NOE771
11 Ethernet Interlink cable TCSECN3M3M1S4/1S4U (1 m)
