| Model: | DI880 | Article Number: | 3BSE028586R1 |
|---|---|---|---|
| Signal Type: | Current Sinking | Mechanics: | S800 |
| Signal Specification: | 24 V D.c. | Number Of Channels: | 16 Channels |

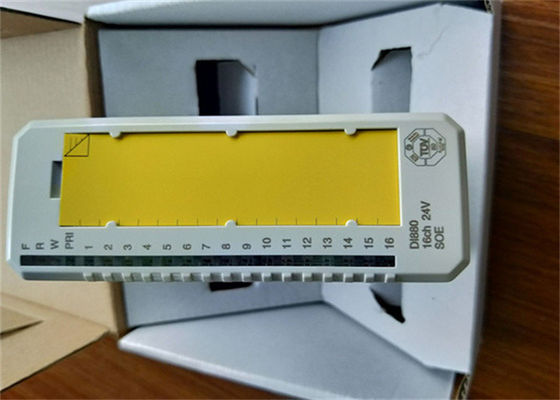

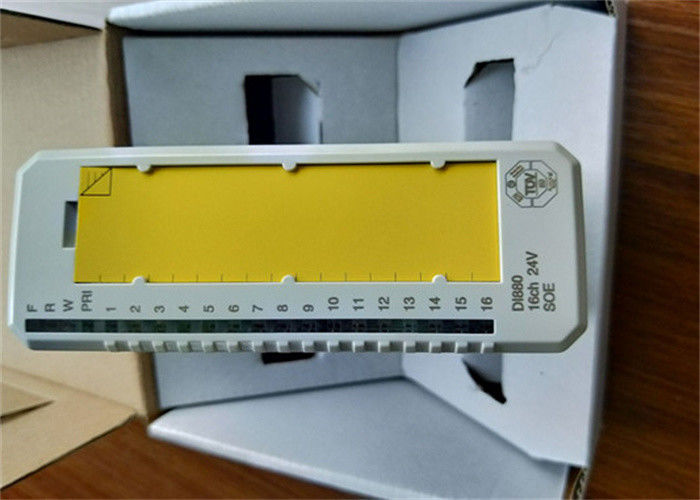

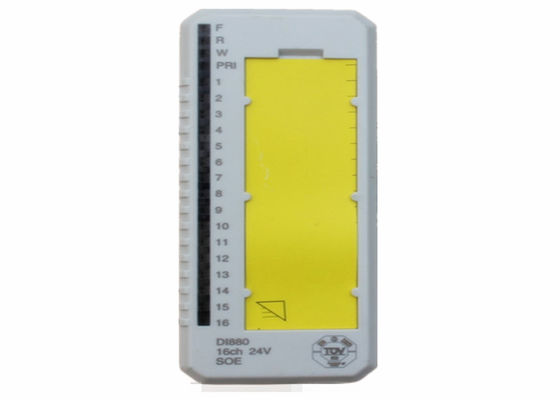

ABB DI880 3BSE028586R1 HIGH INTEGRIY DIGITAL INPUT Module WITH TU810V1 BASE
Description of DI880:
The DI880 is a 16 channel 24 V d.c. digital input module for single or redundant configuration. The input voltage range is 18 to 30 V d.c. and the input current is 7 mA at 24 V d.c. Each input channel consists of current limiting components, EMC protection components, input state indication LED and optical isolation barrier. There is one current limited transducer power output per input. The Sequence of Event function (SOE) can collect events with a resolution of 1 ms. The event queue can contain up to 512 x 16 events. The function include a Shutter filter for suppression of unwanted events. The SOE function can report the following status in the event message – Channel value, Queue full, Synchronization jitter, Uncertain time, Shutter filter active and Channel error.
General Information
| Type | Digital Input |
| Signal specification | 24 V d.c. |
| Article number | 3BSE028586R1 |
| Number of channels | 16 |
| Signal type | Current sinking |
| HART | No |
| SOE | Yes |
| Redundancy | Yes |
| High integrity | Yes |
| Intrinsic safety | No |
| Mechanics | S800 |
I/O Modules
| AI801 | AI810 | AI815 | AI820 | AI825 |
| AI830A | AI835A | AI843 | AI845 | AI880A |
| AI890 | AI893 | AI895 | AO801 | AO810V2 |
| AO815 | AO820 | AO845A | AO890 | AO895 |
| DI801 | DI802 | DI803 | DI810 | DI811 |
| DI814 | DI818 | DI820 | DI821 | DI825 |
| DI828 | DI830 | DI831 | DI840 | DI880 |
| DI890 | DO801 | DO802 | DO810 | DO814 |
| DO815 | DO818 | DO820 | DO821 | DO828 |
| DO840 | DO880 | DO890 | DP820 | DP840 |
Detailed data
| Input voltage range, "0" | -30..+5 V |
| Input voltage range, "1" | 11..30 V |
| Input impedance | 3.1 kΩ |
| Isolation | Groupwise isolated from ground |
| Filter times (digital, selectable) | 0 to 127 ms |
| Current limiting | Built in current limited sensor power |
| Maximum field cable length | 600 meters (656 yards) |
| Event recording accuracy | -0 ms / +1.3 ms |
| Event recording resolution | 1 ms |
| Rated insulation voltage | 50 V |
| Dielectric test voltage | 500 V a.c. |
| Power dissipation | 2.4 W |
| Current consumption +5 V Modulebus | Typ. 125 mA, Max. 150 mA |
| Current consumption +24 V external | 15 mA + sensor power, Max. 527 mA |
Diagnostics
| Front LED’s | F(ault), R(un), W(arning), P(rimary), Channel 1-16 Status |
| Supervision | Process power, Internal circuitry |
| Status indication of supervision | Module Error, Module Warning, Internal channel error |
Environment and certification
| CE mark | Yes |
| Electrical safety | IEC 61131-2, UL 508 |
| Hazardous Location | C1 Div 2 cULus, C1 Zone 2 cULus, ATEX Zone 2 |
| Marine certification | ABS, BV, DNV-GL, LR, RS, CCS |
| Protection rating | IP20 according to IEC 60529 |
| Corrosive atmosphere ISA-S71.04 | G3 |
| Climatic operating conditions | 0 to +55 °C (Storage -40 to +70 °C), RH=5 to 95 % no condensation, IEC/EN 61131-2 |
| Pollution degree | Degree 2, IEC 60664-1 |
| Mechanical operating conditions | IEC/EN 61131-2 |
| EMC | EN 61000-6-4 and EN 61000-6-2 |
| Overvoltage categories | IEC/EN 60664-1, EN 50178 |
| Equipment class | Class I according to IEC 61140; (earth protected) |
| Max ambient temperature | 55 °C (131 °F), for vertical mounting in compact MTU 40 °C (104 °F) |
| RoHS compliance | EN 50581:2012 |
| WEEE compliance | DIRECTIVE/2012/19/EU |
Compability
| Use with MTU | TU810, TU812, TU814, TU818, TU830, TU833, TU842, TU843, TU852 |
| Keying code | FF |
Dimensions
| Height | 119 mm (4.7”) |
| Width | 45 mm (1.77”) |
| Depth | 102 mm (4.01”), 111 mm (4.37”) including connector |
| Weight | 0.15 kg (0.33 lbs.) |
