| Place of Origin: | CN ; UK |
| Brand Name: | NIDEC |
| Certification: | None |
| Model Number: | SP5601 |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negitiation |
| Packaging Details: | in box |
| Delivery Time: | 3-5 DAYS |
| Payment Terms: | T/T, Western Union, PAYONEER |
| Supply Ability: | 10 |
| Product: | Drives | Model: | SP5601 |
|---|---|---|---|
| Brand: | ABB | Product ID: | SP5601 |
| Product Name: | Frequency Inverter | Supply: | 575/690Vac |
| Series: | Unidrive SP | SIZE: | 320*220*325mm |

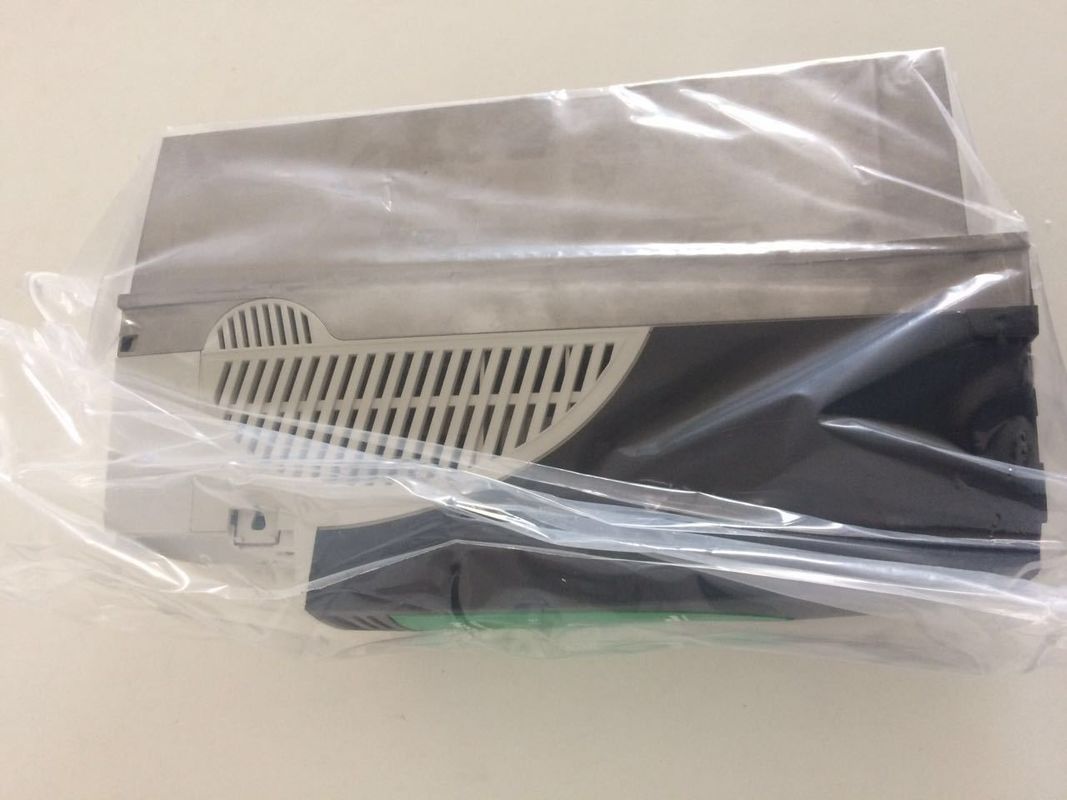

Techniques SP5601 Unidrive SP without Keypad NIDEC EMERSON 575/690Vac Control Panel Mount Inverter
Description
Unidrive SP 230/460/690 VAC Servo Drive
Unidrive SP is a complete drive automation range that covers the power spectrum from 0.37kW to 1.9MW. All drives share the same flexible control interface regardlessof the power rating. Drives are packaged in three formats:Panel Mount, Free Standing and Modular.
Unidrive SP in Servo Mode
1.3 A – 210 A rms (2.27 A – 315 A Peak)
230 V | 460 V
Unidrive SP can control a wide range of industrial motors. In servo mode, the drive operates as a high performance servo amplifier, matched to the Unimotor fm range and optimized for continuous duty applications due to its high continuous output rating. Typical continuous duty applications include printing, winding and labeling.
OTHER SUPERIOR PRODUCTS
| Yasakawa Motor, Driver SG- | Mitsubishi Motor HC-,HA- |
| Westinghouse Modules 1C-,5X- | Emerson VE-,KJ- |
| Honeywell TC-,TK- | GE Modules IC - |
| ABB Module | AB Module 1756-,1759- Tourch Screen 2711- |
| Mitsubishi Drive MR- , Motor HA -,HC | Emerson Moudles CE-,SE-,KJ-,KL- |
| Fanuc motor A0-, Drive | Yokogawa transmitter EJA- |
| Rosemount Transmitter 3051- | Schneider Module 140- |
| Panasonic Motor , Drive MH- | Siemens Module 6ES-, Touch Screen 6AV- |
Options:
| Item | Description |
|---|---|
| SYPT-LITE | Programming tool for drive's with built in PLC capability and SM-Apps Lite Module |
| SYPTPRO | Coprocessor module programming and CTNet system configuration tool, Software registration required |
| SM-APPLICATIONS | Applications Solutions Module, Programmable with SyPT via CTNet or RS485, 2 digital inputs and 2 digital outputs for high speed I/O operations |
| SM-APPS-LITE | Applications Lite Solutions Module, Programmable with SyPT or SyPT Lite |
| SM-APPS-LITE-PLUS | Applications Lite Solutions Module with faster processor, Programmable with SyPT or SyPT Lite |
| SM-APPS-PLUS | Applications Solutions Module with faster processor, Programmable with SyPT via CTNet or RS485, 2 digital inputs and 2 digital outputs for high speed I/O operations |
| SM-EZMOTION | Motion Made Easy Solutions Module, Utilizing PowerTools programming software |
| SM-ETC | 15 Pin D Shell to 15 pin screw terminal break out board for servo and vector motor encoder feedback cable |
| DST-KEYPAD | LED Keypad, Configured for Digitax ST |
| SM-HEATSINK-DBR1 | DB Resistor, 75 Ohm, 50 Watt, Heatsink for Unidrive SP size 1 & Epsilon EP |
| SM-HEATSINK-DBR2 | DB Resistor, 37.5 Ohm, 100 Watt, Heatsink for Unidrive SP size 2 |
| BRM-1 | Brake Relay module, 24V, 1 contact, 6 amp, DIN rail mounting (EN, EP, Epsilon, MDS to CBMS, CBMF, XTBMS, XCMDBS) |
| 4200-6000 | EMC (RFI) Filter, amps, 230V 1 input, Panel Mount |
| 4200-6001 | EMC (RFI) Filter, amps, 230V 3 input, Panel Mount |
| 4200-6002 | EMC (RFI) Filter, amps, 460V 3 input, Panel Mount |
| SM-ENCODER-OUT | Incremental Encoder Output Solution Module to enable connection with external motion controllers |
| SM-ENCODER-PLUS | Encoder Plus Solutions Module, provides an additional incremental encoder feedback port. |
| SM-UNI-ENCODER | Universal Encoder Plus Solutions Module, provides an additional increamental or Absolute encoder feedback port and simulated encoder output. |
| SM-RESOLVER | Resolver Solutions Module, providing a resolver feedback port, w/simulated encoder output |
| SM-I/O-120 | I/O Solutions Module, 6 inputs (120Vac) or 3 inputs (240Vac) & 2 Relay Outputs (2A @ 240Vac or 4A@30Vdc) |
| SM-I/O-24V | I/O Solutions Module, 24V Protected, 3 DI, 4 DI/DO, 2 Relay Outputs, 2 current AO |
| SM-I/O-32 | I/O Solutions Module with (32) Assignable 24VDC Digital Inputs/Outputs (Requires application programming.) |
| SM-I/O-LITE | I/O Lite Solutions Module - (1) +/- 10V Bi-polar or 4-20mA input, (3) digital inputs, (1)? 0-10V or 4-20mA output, (1) relay output, (1) Incremental Encoder Speed Reference input |
| SM-I/O-PLUS | I/O Solutions Module, High Performance, (2) +/- 10V analog input, (1)? +/- 10V? output, (3) digital inputs, (3) programmable digital I/O,? (2) relay output, |
| SM-I/O-TIMER | I/O Lite Solutions Module w/real time clock for scheduling events, (1) +/- 10V Bi-polar or 4-20 |
