| Place of Origin: | USA |
| Brand Name: | GE |
| Model Number: | DS215SLCCG1AZZ01B |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negitiation |
| Packaging Details: | in box |
| Delivery Time: | 3-5days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100 |
| Product Name: | Control Circuit Board DS215SLCCG1AZZ01B | Product: | Control Circuit Board |
|---|---|---|---|
| Model: | DS215SLCCG1AZZ01B | Brand: | GE |
| CARRIER: | Ethernet Interface Module | Inches: | 8 Inches |
| Country Of Origin: | USA |

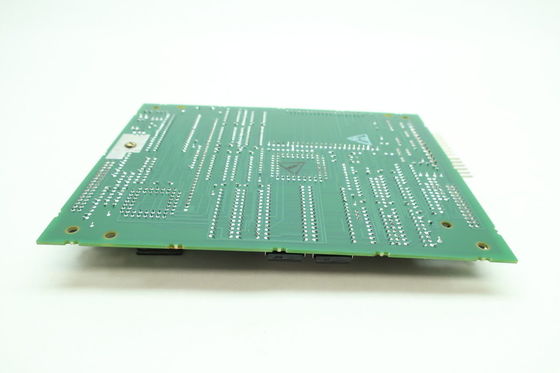

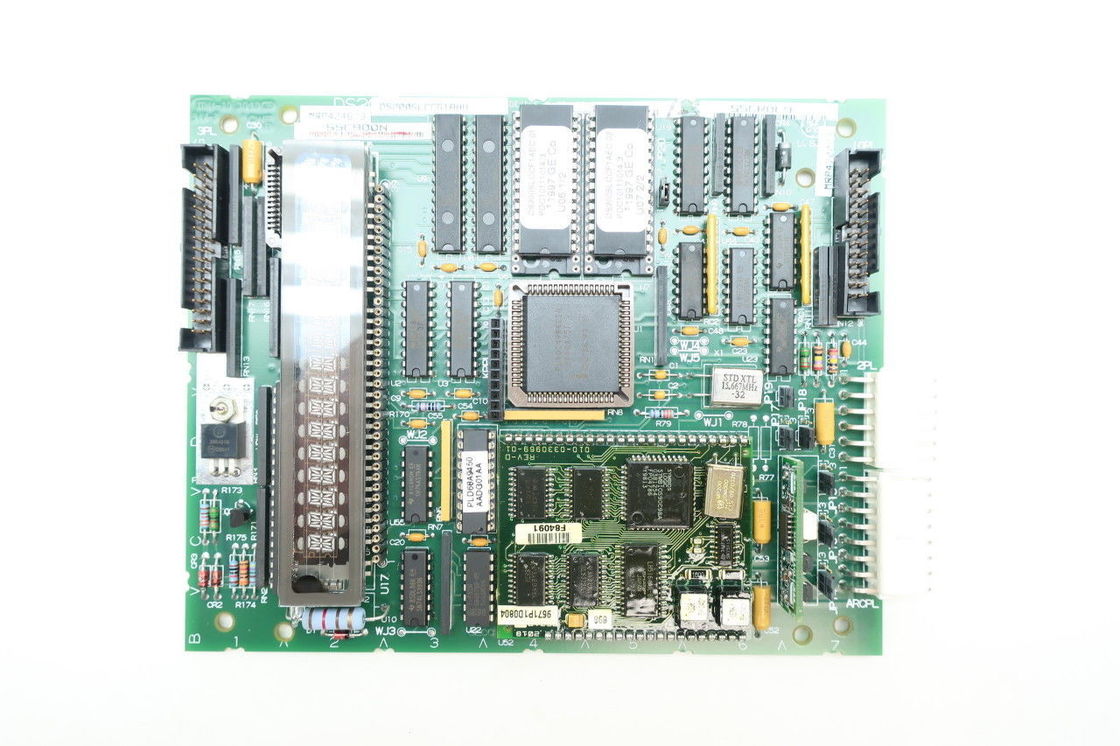

DS215SLCCG1AZZ01B LAN communication board General Electric for their Mark V board series
DS215SLCCG1AZZ01B Technical Specifications
Manufacturer GE General Electric
Series Mark V
Part Number DS215SLCCG1AZZ01B
Product Type LAN Communications Card
Instruction Manual GEI-100162B
Product Description
DS215SLCCG1AZZ01B is a LAN communication board designed by General Electric for their Mark V board series. Local area network (LAN) communications are performed by the isolated and non-isolated circuits found on the board. Drive communications via a local network are executed using this LAN card. Featured on the card are a principle microprocessor as well as system memory space. This board is capable of communicating via DLAN and ARCNET local networks.
The board features a LAN control processor, or LCP, that executes system communications. Network communications to and from the DS215SLCCG1AZZ01B are processed using this LCP. Two EPROM slots serve as onboard storage for the LCP software. Communications between the drive control processor (DCP) and the LCP occur in dedicated RAM memory space. A number of connections are available on the board to allow interfacing with a variety of system features. Position 2PL serves as the power supply connection while 3PL provides an input point for the drive’s control card. 10PL provides a LAN I/O terminal board connection for the LCP. DLAN and ARCNET communications are possible using the ARCPL connection. A module programmer and alphanumeric keypad provides users with system access to diagnostics and settings.
General Electric provides some installation and storage parameters that should be met to protect the board as well as the drive. The device datasheet and manual contains a complete wiring and installation guide for the DS215SLCCG1AZZ01B. Technical support for this board was originally provided by General Electric, the manufacturer.
AX Control’s trusted sales staff is happy to help with all of your automation needs. Please contact a member of our team by phone or email to receive current prices and availabilities on all parts and repairs.
