General Electric’s Mark V board series DS215SLCCG1AZZ01A drive control card developed

General Electric’s Mark V board series DS215SLCCG1AZZ01A  drive control card developed

DS215SDCCG1AZZ01B Technical Specifications
Manufacturer GE General Electric
Series Mark V
Part Number DS215SLCCG1AZZ01A
Product Type Drive Control Card
Instruction Manual GEI-100029

Product Description

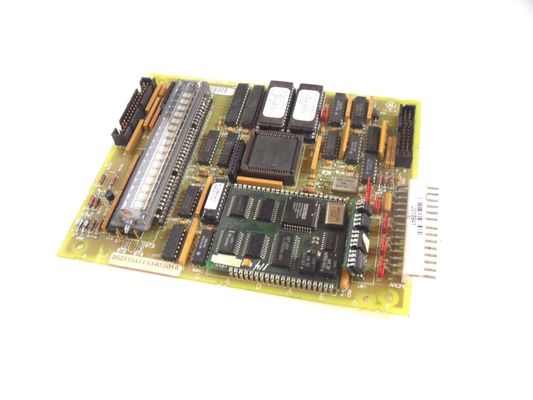

DS215SLCCG1AZZ01A is a drive control card developed for General Electric’s Mark V board series. System software and primary control circuitry is housed on this card. AC2000, DC2000, and EX2000 drives are the intended series of controllers that this card can interface with. Three microprocessors and dual ported RAM can be found on this control card.

The three main processors located on DS215SDCCG1AZZ01B include a drive control processor (DCP), a motor control processor (MCP), and a co-motor processor (CMP). The DCP contains an array of peripheral functions, including direct memory access and address decoding. Both digital and analog I/O can be digested by this processor. High speed digital and analog I/O as well as motor control functions are processed by the MCP. When additional processing power is required by the MCP, the CMP takes over. The CMP is capable of calculating complex mathematical algorithm calculations that the MCP is incapable of computing. Five onboard memory chips provide storage space for the integrated dual port RAM. Ten diagnostic LEDs are found on the board which can display fault codes to users in either binary form or binary coded decimal (BCD).

Provided installation and storage parameters should be met to protect the integrity of both the control card and the drive. A complete guide to installing and wiring DS215SDCCG1AZZ01B is available in the series manual as well as the device’s datasheet. The manufacturer, General Electric, was the original provider of technical support for this board.
