| Place of Origin: | France |
| Brand Name: | Schneider |
| Certification: | CE |
| Model Number: | 140ACO13000 |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | USD |
| Packaging Details: | new original box |
| Delivery Time: | 3-5days |
| Payment Terms: | T/T, Union,payoneer |
| Supply Ability: | 50 pcc/week |
| Brand: | Schneider | Model: | 140ACO13000 |
|---|---|---|---|
| Type: | Modicon Quantum Automation Platform | Country Of Origin: | France |
| Condition: | New Original | Deliver: | 3-5days |
| MOQ: | 1 PCS | Warranty: | 1 Year |
NEW Schneider Electric Modicon Quantum 140ACI04000C Analog Input Module
Quick details:
Analog Output Module Modicon Quantum - 8 O Multirange

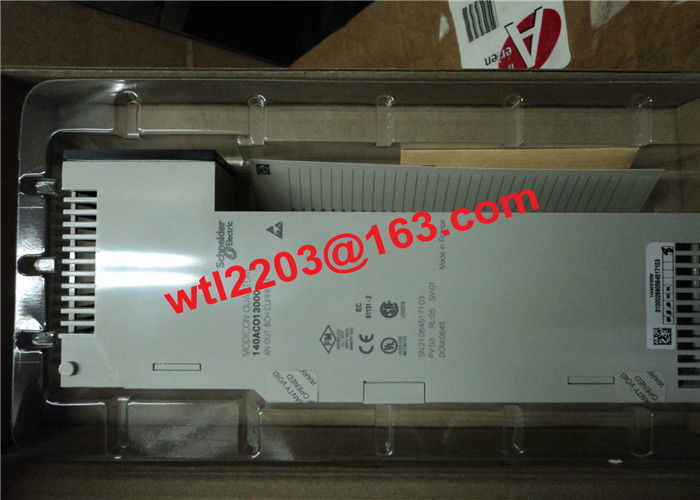

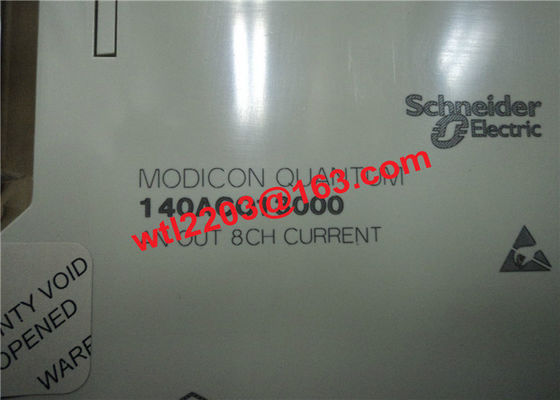

Quantum | 140ACO13000 | Modicon | 140 ACO 130 00 | Analog Output 8CH CURRENT
The Modicon Quantum automation platform supports a full range of analog I/O modules designed to interface with a wide variety of fi eld devices. All modules meet internationally accepted IEC electrical standards that ensure reliability in harsh operating environments. For even better protection and extended life in extremely harsh environments, you can have your modules conformally coated. All Quantum I/O modules can be completely con fi gured using Unity Pro, Concept or ProWORX. The ability to specify an I/O address for each module in software makes it easy to add or change modules in your con fi guration without physically changing the application program.
Specifications:
| Manufacturer: | Modicon Quantum |
| Series: | Analog Modules |
| Weight: | Ask |
| Analogue output number: | 8 |
| Addressing requirement: | 8 output words |
| Loop voltage: | 6...30 V DC |
| Voltage drop: | 6...30 V 25 mA |
| Analogue output range: | 4...20 mA 0...4095 counts |
| 4...20 mA 0...16000 counts | |
| 0...25 mA 0...25000 counts | |
| 0...20 mA 0...20000 counts | |
| Absolute accuracy error: | +/- 0.2 % of full scale at 25 °C |
| Linearity: | +/- 4 µA 4...20 mA 0...16000 counts |
| +/- 4 µA 0...25 mA 0...25000 counts | |
| +/- 4 µA 0...20 mA 0...20000 counts | |
| +/- 12 µA 4...20 mA 0...4095 counts | |
| Accuracy drift according to temperature: | 0.007 % of full scale/°C maximum |
| 0.004 % of full scale/°C typical | |
| Isolation between channels and bus: | 1780 V for 1 minute AC |
| Update time: | 5 ms |
| Setting time: | 1.6 ms to 5% of the final value |
| 3.2 ms to +/-0.1% of the final value | |
| Fault type: | Open circuit 4...20 mA |
| Bus current requirement: | 550 mA |
| Power dissipation in W: | 5 W |
| External power requirement: | 6...30 V |
| Marking: | CE |
| Local signalling: | 8 LEDs red channel fault |
| 8 LEDs green channel is turned on | |
| 1 LED red external fault | |
| 1 LED green bus communication is present (Active) | |
| Module format: | Standard |
(1) 2 slots
(2) 3 slots
(3) 4 slots
(4) 6 slots
(5) 10 slots
(6) 16 slots
HTS stands for Harmonized Tariff Schedule. This reference is needed for International Trade purposes.
The HTS code for a Quantum Analog output module 140ACO13000 is 8538.90.80.60
No, the 140ACO02000 analog output module does not supply power to the outputs. It requires an external supply to power the outputs and it can be wired with a loop supply and wired either as a sink or source output.
Legacy KB System (APS) Data: RESL211568 V1.0, Originally authored by DiSa on 05/24/2013, Last Edited by DiSa on 05/24/2013
Related ranges: Modicon Quantum
