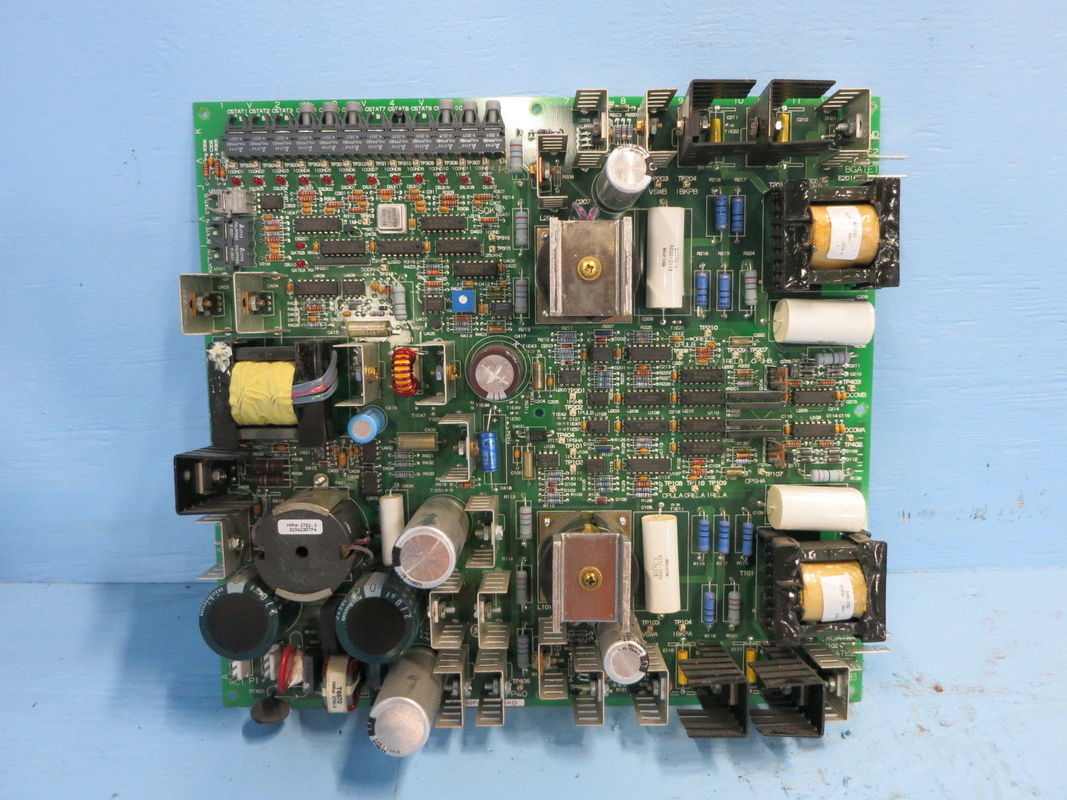

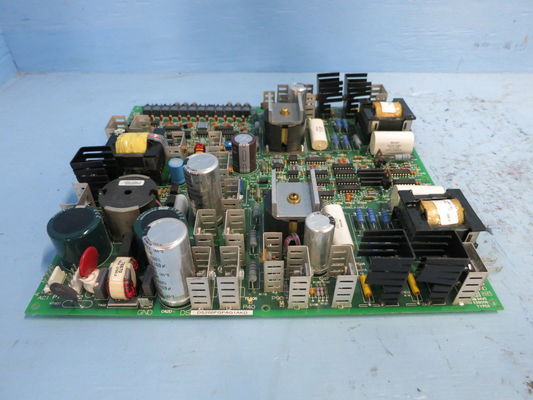

DS200GDPAG1A high frequency power supply board developed for General Electric’s Mark V board series

DS200GDPAG1A  high frequency power supply board developed for General Electric’s Mark V board series


DS200GDPAG1A Technical Specifications
Manufacturer GE General Electric
Series Mark V
Part Number DS200GDPAG1A
Product Type High Frequency Power Supply Board
Instruction Manual GEI-100287




Product Description
DS200GDPAG1A is a high frequency power supply board developed for General Electric’s Mark V board series. When installed, this 600 to 700 W board is capable of inputting both AC and DC sourced power supplies. This card can be installed and applied to a wide range of GE manufactured drives and exciters. AC power sourced to the board can measure between 80 and 132 VAC. Should DC power be inputted to the drive, sources can rate between 105 and 140 VDC.

An array of integrated board features ensures that DS200GDPAG1A provides the best user experience. These features include a 120 VDC power supply, a 50 VAC output transformer, and a control power supply. Both control signal level circuits and protective circuits are found onboard as well. An input rectifier and filter, a regulator, and a 27 kHz inverter complete the main features of this board. All inputs on the board are isolated, ensuring no interruptions or voltage spikes. Four onboard LED and two neon indicators provide board status diagnostics to the users.

Manufacturer provided installation and storage parameters for both the board and drive should be reviewed and followed. This instructions will ensure that the system as a whole operates properly. For a step by step guide to installing and wiring DS200GDPAG1A, please refer to the series manual as well as the datasheet. General Electric, the manufacturer, originally provided all Mark V boards with technical support.

Our team at AX Control is ready to assist with all of your DS200GDPAG1A needs. A member of our trusted sales team is available by phone or email to discuss prices and availabilities on all parts and repairs.
