DS200FHVAG1A GE High Voltage Gate Interface Board supply cell voltage and SCR gate interference monitoring

DS200FHVAG1A  GE  High Voltage Gate Interface Board  supply cell voltage and SCR gate interference monitoring


DS200FHVAG1A Technical Specifications
Ambient Temperature Range 0-50°C
Board Type High Voltage Gate Interface Board
Dimensions 3.25 inches high by 5 inches wide
Functional Acronym/Abbreviation FHVA
Parts Manual GEI-100224
Quantity of FHVA Connections 5



Product Description
The primary use of the High Voltage Gate Interface Board DS200FHVAG1A is to supply cell voltage and SCR gate interference monitoring, these functions occur through the LCI power converter. For each SCR there is one of these boards. This board comes equipped with an SCR Status Circuit LED which will give off a visible indication that there is a blocking presence at the voltage, please note that this lED should be visible whenever the bridge power is activated and will dim when the SCR conduction angle has increased.

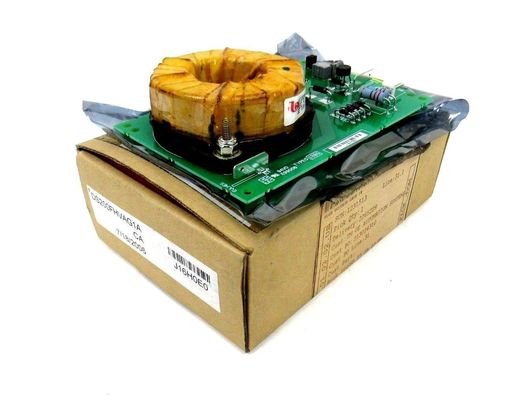

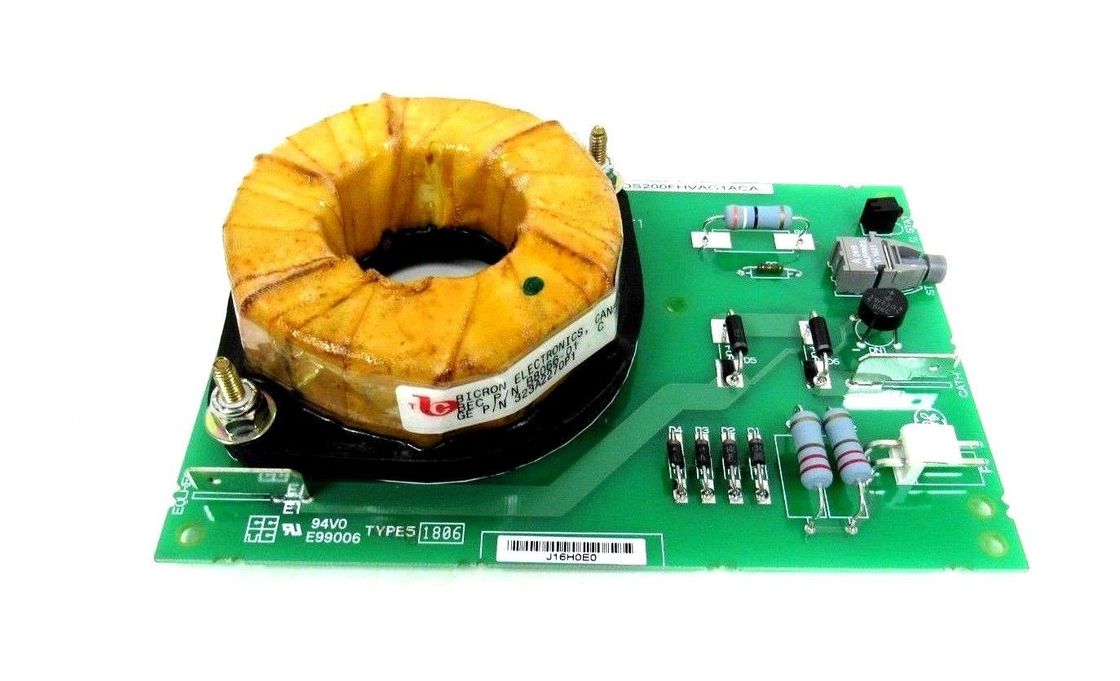

The DS200FHVAG1A model has a gate pulse transformer, this specific transformer is a toroidal transformer that is soldered to the board. There is also a fiber-optic transmitter on this board, it is critical to note that if a fiber-optic is not connected to the device then a rubber plug must be inserted into the U1 to prevent debris from accumulating on the lens. Please note that even after an hour of exposure to the lens in particularly dusty environments noticeable pollution can be seen on the lens.
