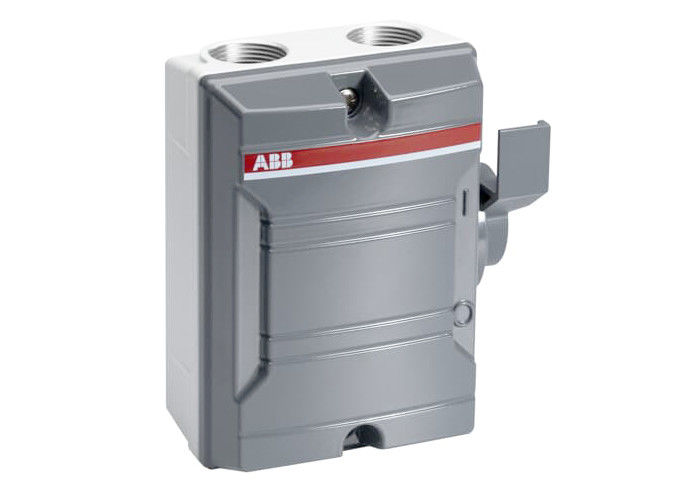

LBAS316TPN 2CMA142430R1000 Enclosed Safety Switch 3p 415V 16A New

  LBAS316TPN 2CMA142430R1000 Enclosed Safety Switch 3p 415V 16A New

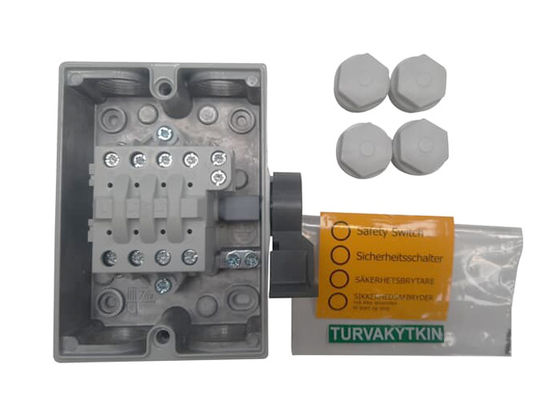

   Safety switch, 3-p. 415V AC23 16A, 7.5kW. Mounted auxiliary contact: 1NO0NC. Aluminium enclosure. IP65. Grey Side-operated handle. Interlocked cover. The enclosure of the ABB´s side controlled enclosed switches are made of rigid silumin. The paint is UV protected, and enclosure is protected against low pressure water jets (IP65), and hence built for outdoor and indoor use. The cable entries are threaded and have cable entries for 2 parallell cables, both from top and bottom. Membrane grommets are included (IP54). The handle is padlockable and made for one padlock. The cover is interlocked. The switch is made for 5 wire system, and have a fixed neutral terminal and PE terminal. The terminals are easily accessible for easy installation.

Product Information Of : LBAS316TPN

General info :

Article number : 2CMA142430R1000

Catalog Description : LBAS316TPN Safety switch

Invoice Description : 2CMA142430R1000 Safety switch

Minimum Order Quantity : 1 piece

Technical :

Rated Operational Current AC-22A (Ie) : (380 ... 415 V) 25 A

                                                                 (500 V) 25 A

                                                                 (690 V) 16 A

Rated Operational Current AC-23A (Ie) : (380 ... 415 V) 16 A

                                                                 (500 V) 16 A

                                                                 (690 V) 10 A

Rated Operational Power AC-23A (Pe) : (380 ... 415 V) 7.5 kW

                                                                 (500 V) 7.5 kW

                                                                 (690 V) 7.5 kW

Conventional Free-air Thermal Current (Ith) : 32 A

Rated Impulse Withstand Voltage (Uimp) : 8 kV

Maximum Mounted Auxiliary Contacts : 2 NO, 0 NC

Mounted Auxiliary Contacts : 1 NO, 0 NC

Number of Auxiliary Contacts NC : 0

Number of Auxiliary Contacts NO : 1

Tightening Torque : Main Circuit 1.2 N·m

Rated Current (In) : 16 A

Categories :

Products » Low Voltage Products and Systems » Enclosed Switches » Enclosed Safety Switches » Enclosed Safety Switches
