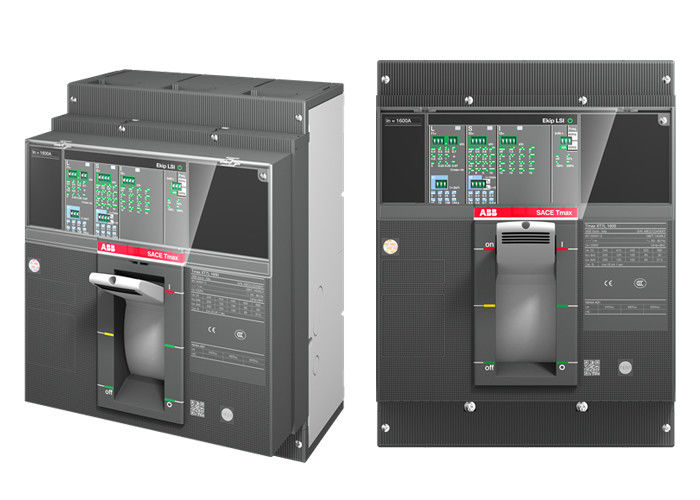

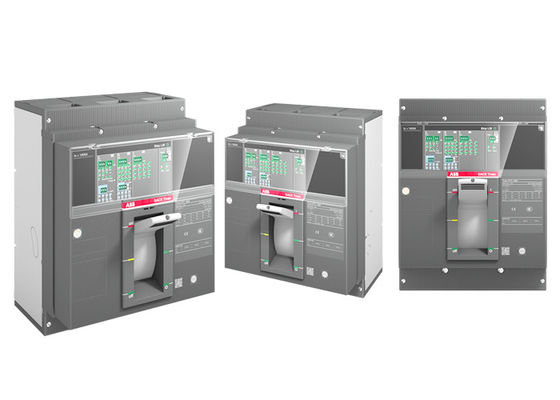

1SDA100892R1 XT7H 1250 Ekip Dip LS/I In=1250A 3p F F Tmax XT Breaker

  1SDA100892R1 XT7H 1250 Ekip Dip LS/I In=1250A 3p F F Tmax XT Breaker

    C.BREAKER TMAX XT7H 1250 FIXED THREE-POLE WITH FRONT TERMINALS AND LEVER OPERATING MECHANISM AND SOLID-STATE RELEASE IN AC EKIP DIP LS/I R 1250

Product Information Of : 1SDA100892R1 XT7H 1250 Ekip Dip LS/I In=1250A 3p FF

General info :

Article number : 1SDA100892R1

Catalog Description : XT7H 1250 Ekip Dip LS/I In=1250A 3p F F

Product Main Type : SACE Tmax T

Type Designation : XT7H 1250 Ekip Dip LS/I In=1250A 3p FF

Product Name : Moulded Case Circuit Breaker

Invoice Description : Circuit Breaker 1SDA100892R1

Minimum Order Quantity : 1 piece

Technical :

Number of Poles : 3

Power Loss : at Rated Operating Conditions per Pole 57 W

Current Type : AC

Rated Current (In) : 1250 A

Rated Impulse Withstand Voltage (Uimp) : 8 kV

Rated Insulation Voltage (Ui) : 1000 V

Rated Operational Voltage : 690 V AC

Release : Ekip Dip LS/I

Version : F

Short-Circuit Performance Level : H

Standards : IEC

Sub-type : XT7

Categories :

Products » Low Voltage Products and Systems » Circuit Breakers » Moulded Case Circuit Breakers » Tmax XT
