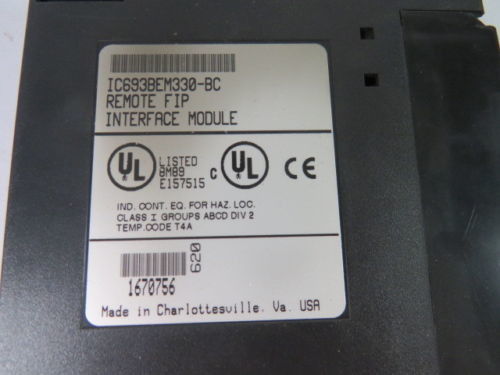

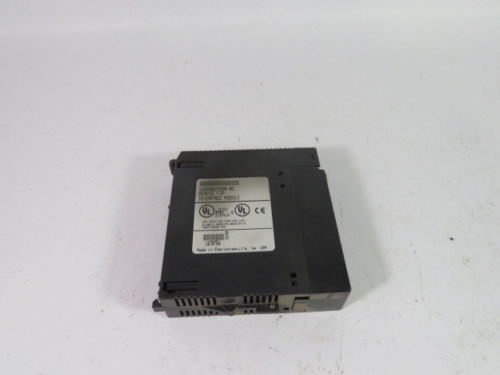

IC693BEM330 GE Fanuc FIP Bus Interface Module Series 90-30 Programmable Logic Controller

IC693BEM330 GE Fanuc FIP Bus interface module Series 90-30 Programmable Logic Controller

Technical Specifications for IC693BEM330
Brand GE Fanuc
Series Series 90-30
Manufacturer GE Fanuc (Former); Emerson Automation (Current)
Series Series 90-30
Part Number IC693BEM330
Part Number IC693BEM330
Module Type FIP I/O Scanner
Number of Slots 1 (single slot)
Product Description FIP Remote I/O scanner
Backplane Support Universal Backplane
Slot width Single slot
I/O Points Up to 19 I/O modules
Mounting location Slot 1 of CPU baseplate
Communication Ports Two (2) 9-pin D-shell female connectors; Synchro port
Status LED indicators CD1 / CD2; TEN1/ TEN2
LEDs CD1, TEN1, CD2, TEN2
Synchro port connector: #39-01-4031
Configuration by Hand-held configuration tool
FIP communications standard: FIP and WORLD FIP
Max number of I/O module 19 I/O modules
Transmission rate 1 MHz
Supported devices: Series 90-30; Series 90-70; Hand Held Programmer; Bus Interface Units; Generic Devices;
Backplane current consumption: 609 mA at 5VDC
Product Lifecyle: Discontinued

OTHER SUPERIOR PRODUCTS

The IC693ACC300 input simulator module is designed for use with programmable logic controllers or PLCs from Series 90-30, and this series is produced by GE Fanuc. Series 90-30 offers a variety of different industrial components for PLCs that are used for industrial applications that require the best performance and high levels of reliability. The IC693ACC300 input simulator module is equipped with miniature toggle switches labelled from A1 to A8 and from B1 to B8. The switches have 2 positions and they each include a corresponding green LED that is turned on if the corresponding switches are set to "ON." These LEDs are turned off if the corresponding switches are set to "OFF." All the switches are placed at the front of the module. This GE Fanuc input simulator module allow the users to program the switches to operate as discrete input devices and is usually used for the simulation of the operation of actual inputs.

Discrete I/O Modules
Input modules provide the interface between the PLC and external input devices such as proximity sensors, push buttons, switches, and BCD thumbwheels. Output modules provide the interface between the PLC and external output devices such as contactors, interposing relays, BCD displays and indicator lamps.GE offers a variety of modules that support different voltage ranges and types, current capacity, isolation and response time to meet your application needs.

Analog I/O Modules
Emerson offers easy-to-use analog modules and HART analog modules for control processes such as flow, temperature and pressure.

Specialty Modules
The RX3i features a wide range of Specialty Modules to address specific application requirements. These modules include:

Millivolt and Strain Gage I/O
Thermocouple I/O
RTD I/O
Resistive I/O
Temperature Control
Power Transducer
